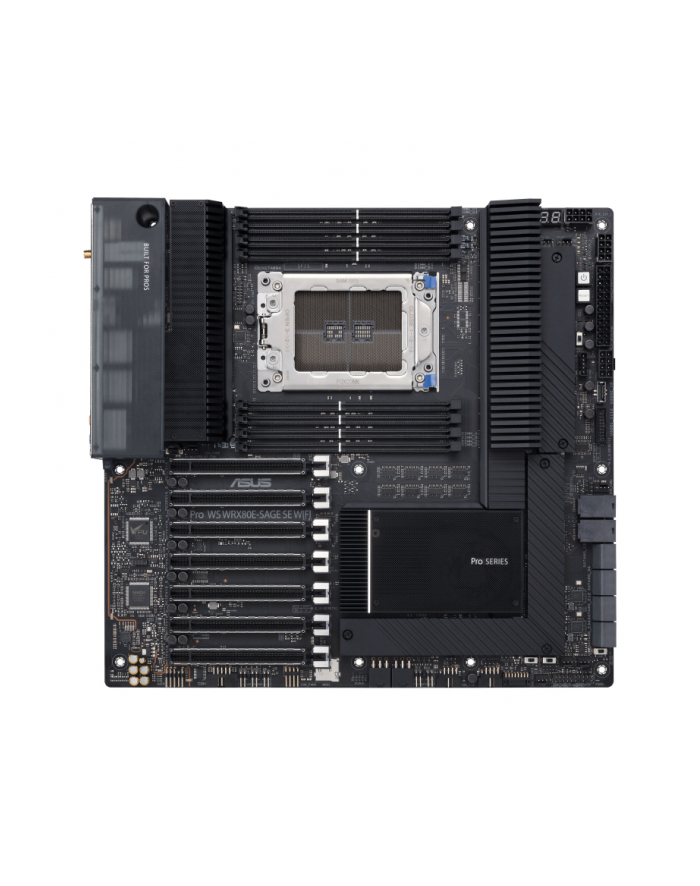

Płyta główna Asus PRO WS WRX80E-SAGE SE WIFI

Pro WS WRX80E-SAGE SE WIFI AMD WRX80 Ryzen™ Threadripper™ PRO extended-ATX workstation motherboard with Intel dual 10 G LAN, USB 3.2 Gen 2x2 Type-C port, 7 x PCIe 4.0 x16 slots, 3 x M.2 PCIe 4.0, ASMB9-iKVM, 2 x U.2 and 16 power stages AMD sWRX8 socket: Ready for AMD Ryzen™ Threadripper™ PRO Series Processors Ultrafast connectivity: USB 3.2 Gen 2x2 Type-C port, 10 x USB 3.2 Gen 2 ports, 3 x M.2 PCIe 4.0, HYPER M.2 x16 Gen 4 card and Intel® X550-AT2 dual 10Gb Ethernet ASMB9-iKVM remote management: BMC chip to provide intelligence for its IPMI architecture for out-of-band management to enhance hardware-level control for improved IT efficiency Powerful performance: 16 power stages, multi-GPU support and R-DIMM memory support Trusted stability: Tested for 24/7 dependability, validated for solid compatibility and equipped with SafeSlot for ultimate security CPU AMD® Ryzen™ Threadripper™ Pro Processors** Refer to www.asus.com for CPU support list. Chipset AMD WRX80 Chipset Memory Memory Channels:8DDR4 (Eight Channel)Max Memory Size:2048GB8 x DIMM, Max. 2048GB, DDR4 3200/3000/2933/2800/2666/2400/2133 MHz ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM and 3DS R-DIMM Memory*8 Channel Memory Architecture* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Expansion Slots AMD Ryzen™ Threadripper™ PRO Series Processors7 x PCIe 4.0/3.0 x16 slot(s)** Support PCIe bandwidth bifurcation for RAID on CPU function. Multi-GPU Support Supports NVIDIA 4-Way/3-Way/2-Way SLI® Technology Storage Supports 3 x M.2 slots and 12 x SATA 6Gb/s portsAMD Ryzen™ Threadripper™ PRO Series ProcessorsM.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)U.2_1 slot supports U.2 NVMe device and up to 2 SATA devices*AMD WRX80 ChipsetM.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)U.2_2 slot supports U.2 NVMe device and up to 2 SATA devices*4 x SATA 6Gb/s portsASMedia ASM1061 Controller4 x SATA 6Gb/s portsSupports NVMe RAID configurations via M.2 storages*The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled. Ethernet 1 x Intel® X550-AT2 dual 10Gb EthernetASUS LANGuard Wireless & Bluetooth Intel® Wi-Fi 6 AX2002x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMOSupports up to 2.4Gbps max data rateSupports 2.4/5GHz Dual-BandSupports channel bandwidth: HT20/HT40/HT80/HT160Supports PCIe interfaceBluetooth v5.1 USB Rear USB:Total 10 ports1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C®)Front USB:Total 7 ports1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C®)1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Audio Relatek ALC4080 7.1 Surround Sound High Definition Audio CODEC- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input- Supports up to 32-Bit/384 kHz playback"Audio Features- Audio Shielding- Power pre-regulator reduces power input noise to ensure consistent performance- Rear optical S/PDIF out port- Premium Japanese audio capacitors- Dedicated audio PCB layers- Unique de-pop circuit Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)9 x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C®)1 x ASUS Wi-Fi Module2 x Intel® X550-AT2 dual 10Gb Ethernet ports5 x Audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™ button1 x Clear CMOS button Internal I/O Connectors Fan and Cooling related1 x 4-pin CPU Fan header(s)1 x 4-pin CPU OPT Fan header(s)6 x 4-pin Chassis Fan header(s)1 x VRM heatsink Fan header1 x Chipset Fan headerPower related1 x 24-pin Main Power connector2 x 8-pin +12V Power connector2 x 6-pin PCIe Graphics Card connector1 x 8-pin PCIe Power connectorStorage related3 x M.2 slots (Key M)8 x SATA 6Gb/s ports2 x U.2 slotsUSB1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 portsBMC Related1 x BMC switch1 x IPMI switch1 x Messange LED header1 x Micro SD card socket2 x LAN LED header(s)1 x Location LED header1 x Location button header1 x PSU_SMB header1 x SMART_PSU switch1 x VGA switch1 x VGA header1 x VPP_I2C headerMiscellaneous1 x COM Port header1 x FlexKey button1 x Front Panel Audio header (AAFP)1 x SPI TPM header (14-1pin)1 x Start button1 x 20-3 pin System Panel header with Chassis intrude function1 x RTC Battery header1 x Thermal Sensor header Special Features ASUS Q-Design- Q-Code- Q-Connector- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsinkASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Clear CMOS button- ProCool II- Pre-mounted I/O shield- SafeSlotBespoke Motherboard Design & Business Focused Features- Event Log in ASMB9-iKVM- 24/7 Reliability- Overcurrent ProtectionASMB9-iKVM for KVM-over-Internet Software Features ASUS Exclusive SoftwareArmoury CrateASUS CPU-ZAI ChargerASUS Turbo LANDAEMON ToolsDTS:X® UltraNorton Anti-virus software (Free Trial version)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables6 x SATA 6Gb/s cables1 x VGA cableMiscellaneous1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas1 x Hyper M.2 X16 Gen 4 Card3 x M.2 Rubber Package(s)3 x M.2 SSD screw package(s)1 x Q-connectorInstallation Media1 x Support DVDDocumentation1 x User manual Operating System Windows 10 64bit Form Factor Extended ATX30.98 x 33.02cm

Typ produktu: płyta główna
EAN: 4711081066262
Kod producenta: 90MB1590-M0EAY0
Gniazdo: SWRX8
Maksymalna obsługiwana liczba procesorów: 1
System operacyjny: gotowy na Windows 10
Procesor: procesory AMD® Ryzen™ Threadripper™ Pro dla gniazda sWRX8 [Ryzen Threadripper PRO 39xxWX (Castle Rock), Ryzen Threadripper PRO 59xxWX (Chagall)]
Chipset: AMD WRX80
Sloty: 7x
BIOS: 256 MB pamięci Flash ROM, UEFI AMI BIOS
: TAk
Współczynnik kształtu: E-ATX
Użyj: komputer osobisty
Zasilanie: ATX12V (24-pin + 2x 8-pin + 4-pin)
Przechowywanie: 2048 GB
: 8x DDR4
SDRAM DDR4
: DDR4 3200/3000/2933/2800/2666/2400/2133 MHz
: 8.
: 65536
Połączenia (zewnętrzne): 1
: 8.
: Oznaczenie USB 3.2 Gen 1 odpowiada wcześniejszym oznaczeniom USB 3.1 Gen 1 lub USB 3.0.
Oznaczenie USB 3.2 Gen 2 odpowiada wcześniejszym oznaczeniom USB 3.1 Gen 2 lub USB 3.1.
: 1
: 1
: 3
: 1
: 2
: TAk
: TAk
Połączenia (wewnętrzne): 8
: 3
: 2
: 1
: 1
: 2
: 8.
Kontroler SATA: chipset AMD WRX80
: Kontroler ASMedia ASM1061
bezpośrednio używane poziomy RAID: 0, 1, 10
Kontroler USB: chipset AMD WRX80
Dźwięk: Realtek ALC4080 7.1 Dźwięk przestrzenny Kodek audio wysokiej rozdzielczości
LAN: Intel® X550-AT2 dual 10GbE
: 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.1
Cechy: SLI, 3-way SLI, 4-way SLI
Informacje dodatkowe: W celu obsługi najnowszych rdzeni procesora może być wymagana aktualizacja systemu BIOS.

ASUS WRX80E-SAGE SE WIFI. Producent procesora: AMD, Gniazdo procesora: Socket SP3, Procesor: AMD Ryzen Threadripper Pro 3rd Gen. Obsługiwane rodzaje pamięci: DDR4-SDRAM, Maksymalna pojemność pamięci: 2048 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: SATA III. Obsługa przetwarzania równoległego: 2-Way SLI,3-Way SLI,4-Way SLI. Rodzaj interfejsu sieci Ethernet: 10 Gigabit Ethernet, Kontroler LAN: Intel X550-T2, Podstawowy standard Wi-Fi: Wi-Fi 6 (802.11ax)
