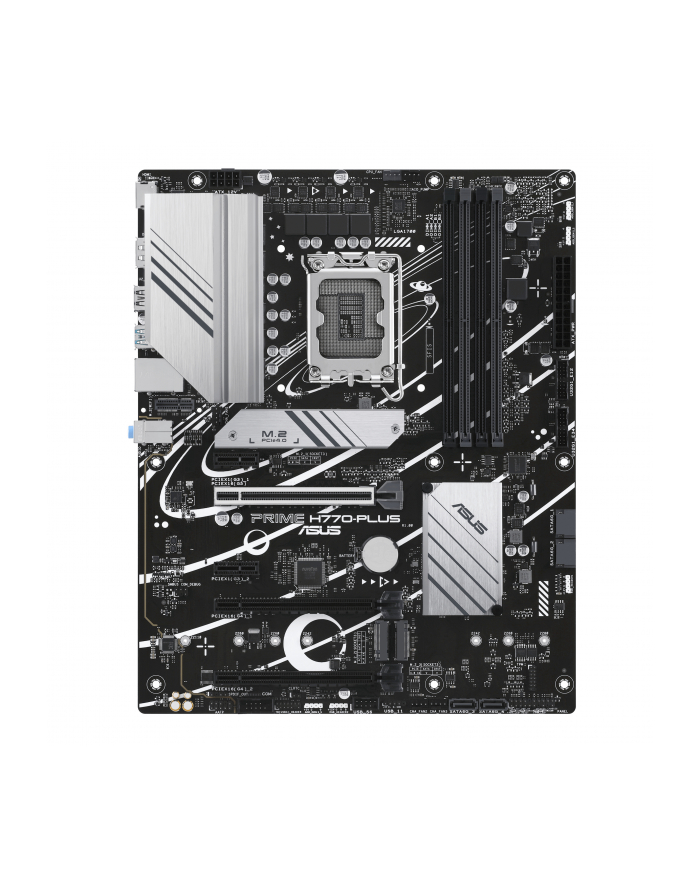

no name Asus PRIME H770-PLUS Processor family Intel Processor socket LGA1700 DDR5 DIMM Memory slots 4 Supported hard disk drive interfaces SATA, M2 Number of SATA connectors 4 Chipset Intel H770 ATX

Format:ATX; Chipset:Intel H770; Socket:Socket 1700; Motherboard memory module type:DDR5; PCI express 16x:3; COM portPRIME H770-PLUSASUS Prime H770-PLUS, an Intel H770 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, HDMI™, USB 3.2 Gen 2 Type-C, Thunderbolt™ (USB4) support, Aura SyncIntel LGA 1700 Socket: Ready for 14th and 13th and 12th Gen Intel processorsUltrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 Type-C and Thunderbolt™ (USB4) header supportComprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem IIAura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardwareTwo-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferencesSupports 14th Gen Intel Core™ ProcessorsCPUIntel Socket LGA1700 for Intel Core™ 14th & 13th Gen Processors, Intel Core™ 12th Gen, Pentium Gold and Celeron ProcessorsSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list.** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.ChipsetIntel H770 ChipsetMemory4 x DIMM slots, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel Extreme Memory Profile (XMP)OptiMem II* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.Graphics1 x DisplayPort**1 x HDMI™ port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.** Supports max. 4K@60Hz as specified in DisplayPort 1.4.*** Supports 4K@60Hz as specified in HDMI 2.1. Expansion SlotsIntel Core™ Processors (14th & 13th & 12th Gen)*1 x PCIe 5.0 x16 slotIntel H770 Chipset2 x PCIe 4.0 x16 slots (support x4 mode)2 x PCIe 3.0 x1 slots* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.StorageTotal supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*Intel 14th & 13th & 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Intel H770 ChipsetM.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)4 x SATA 6Gb/s ports* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.Ethernet1 x Realtek 2.5Gb EthernetWireless & BluetoothVertical M.2 slot only (Key E, CNVi & PCIe)** Wi-Fi module is sold separately.USBRear USB (Total 8 ports)3 x USB 3.2 Gen 2 (10G) ports (2 x Type-A + 1 x USB Type-C)3 x USB 3.2 Gen 1 (5G) ports (3 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB (Total 7 ports)2 x USB 3.2 Gen 1 (5G) headers support 4 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 3 additional USB 2.0 portsAudioRealtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.Back Panel I/O Ports3 x USB 3.2 Gen 2 (10G) ports (2 x Type-A + 1 x USB Type-C)3 x USB 3.2 Gen 1 (5G) ports (3 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x HDMI™ port1 x Vertical M.2 slot (Key E)1 x Realtek 2.5Gb Ethernet port3 x Audio jacksInternal I/O ConnectorsFan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related3 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB2 x USB 3.2 Gen 1 (5G) headers support 4 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 3 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers2 x Aura RGB headers1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x SPI TPM header (14-1pin)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thunderbolt™ (USB4) headerSpecial FeaturesASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage Protection- SafeSlot Core+- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designASUS EZ DIY- ProCoolAura Sync- Aura RGB headers- Addressable Gen 2 headersSoftware FeaturesASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- Fan Xpert 2+- Power Saving- Two-Way AI Noise CancellationAI Suite 3- DIGI+ VRM- PC CleanerASUS CPU-ZNorton 360 Deluxe (60 Days Free Trial)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ ModeBIOS192 (128+64) Mb Flash ROM, UEFI AMI BIOSManageabilityWOL by PME, PXEAccessoriesCables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x M.2 Rubber Package2 x Screw Packages for M.2 SSDDocumentation1 x User guideOperating SystemWindows 11, Windows 10 64-bitForm FactorATX Form Factor30.5 cm x 24.4 cm

ASUS PRIME H770-PLUS. Producent procesora: Intel, Gniazdo procesora: LGA 1700, Procesor: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Obsługiwane rodzaje pamięci: DDR5-SDRAM, Maksymalna pojemność pamięci: 192 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2, SATA III, Obsługiwane rodzaje dysków: HDD & SSD, Poziomy raid: 0, 1, 10. Rodzaj interfejsu sieci Ethernet: 2.5 Gigabit Ethernet. Przeznaczenie: PC, Rodzaj płyty: ATX, Rodzina płyt z chipsetami: Intel
