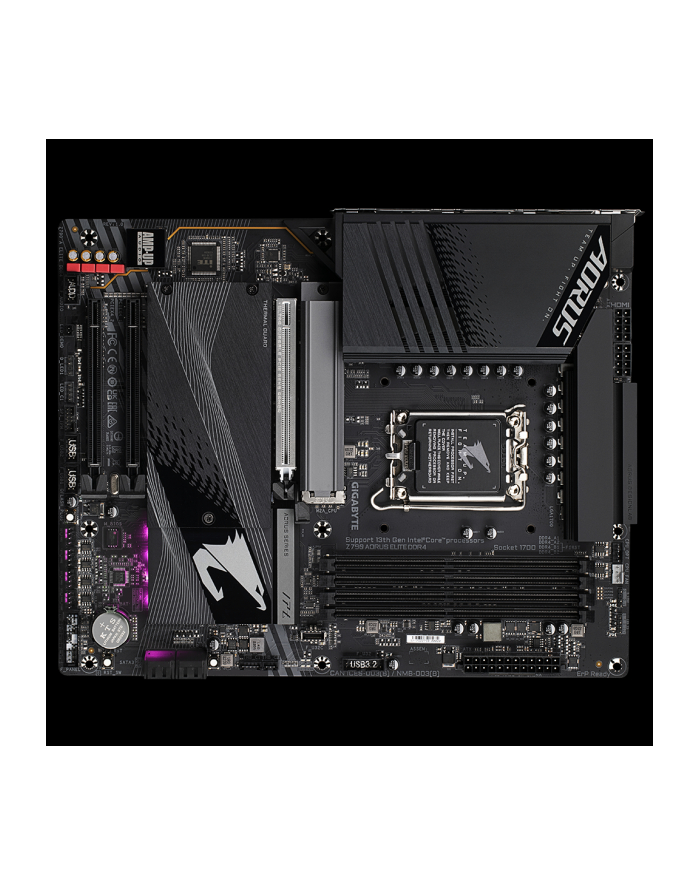

GIGABYTE Z790 A ELITE LGA1700 4xDDR4 4xSATA 4xM.2 1xHDMI
Dane główne
nie stanowią oferty handlowej w rozumieniu przepisów kodeksu cywilnego.
Regulamin
Opis
Z790 AORUS ELITE DDR4 (rev.1.0)
Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processor
Unparalleled Performance:Twin 16*+1+2 Phases Digital VRM Solutio
Dual Channel DDR4:4*DIMMs with XMP Memory Module Support
Next Generation Storage:4*PCIe 4.0 x4 M.2 Connector
Advanced Thermal Design & M.2 Thermal Guard III: To Ensure VRM Power Stability & M.2 SSD Performance
EZ-Latch Plus:M.2 Connectors with Quick Release & Screwless Design
Fast Networks:2.5GbE LAN
Extended Connectivity:HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/
Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® ProcessorsL3 cache varies with CPU(Please refer "CPU Support List" for more information.)
Chipset
Intel® Z790 Express Chipset
Memory
Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.0 version and HDCP 2.3.(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
CPU:1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Storage Interface
CPU:1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices* Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
USB
Chipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)Chipset+2 USB 2.0 Hubs:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers4 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt™ add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x reset button1 x Q-Flash Plus button1 x Clear CMOS button1 x reset jumper1 x Clear CMOS jumper
Back Panel Connectors
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support2 x USB 3.2 Gen 2 Type-A ports (red)3 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x HDMI 2.0 port1 x RJ-45 port1 x optical S/PDIF Out connector2 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup
Bundled Software
Norton® Internet Security (OEM version)LAN bandwidth management software
Operating System
Support for Windows 11 64-bitSupport for Windows 10 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Gigabyte Z790 AORUS ELITE DDR4. Producent procesora: Intel, Gniazdo procesora: LGA 1700, Procesor: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Obsługiwane rodzaje pamięci: DDR4-SDRAM, Maksymalna pojemność pamięci: 128 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2, PCI Express 4.0, SATA III, Obsługiwane rodzaje dysków: HDD & SSD, Poziomy raid: 0, 1, 5, 10. Obsługa przetwarzania równoległego: Crossfire, Maks. rozdzielczość: 4096 x 2304 px. Obsługiwany typ USB: USB Typu-A, USB Type-C
Parametry techniczne
Parametry techniczne produktu
- Producent procesora
- Intel
- Procesor
- Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
- Gniazdo procesora
- LGA 1700
- Obsługiwane gniazda procesora
- LGA 1700
- Pamięć
- :
- Typ slotów pamięci
- DIMM
- Maksymalna pojemność pamięci
- 128 GB
- Korekcja ECC
- Tak
- Liczba gniazd pamięci
- 4
- Bez kody korekcyjnego
- Tak
- Obsługiwana prędkość zegara pamięci (maks.)
- 7600 Mhz
- Obsługiwane prędkości zegara pamięci
- 2133.2400.2666.2800.2933.3000.3200.3300.3333.3400.3466.3600.3666.3733.3800.3866.4000.4133.4266.4300.4400.4500.4600.4700.4800.4933.5000.5133.5333 Mhz
- Obsługiwane rodzaje pamięci
- DDR4-SDRAM
- Obsługa kanałów pamięci
- Dual-channel
- Pamięć niebuforowana
- Tak
- Sieć
- :
- Przewodowa sieć lan
- Tak
- Wi-Fi
- Nie
- Interfejsu sieci Ethernet
- 2.5 Gigabit Ethernet
- Szczegóły Techniczne
- :
- Sprzedawca
- Gigabyte
- Zawartość opakowania
- :
- Przewody
- SATA
- Dołączone oprogramowanie
- Norton Internet Security
- Gniazda rozszerzeń
- :
- Liczba gniazd M.2 (M)
- 4
- PCI Express x16 gniazda
- 3
- BIOS
- :
- Rozmiar pamięci BIOS
- 256 Mbit
- Typ BIOS
- UEFI AMI
- Wersja interfejsu zarządzania pulpitem (DMI)
- 2.7
- Wersja systemu BIOS (SMBIOS)
- 2.7
- Wersja ACPI
- 5.0
- Przycisk clear CMOS
- Tak
- Zworka clear CMOS
- Tak
- Waga i rozmiary
- :
- Szerokość produktu
- 305 mm
- Głębokość produktu
- 244 mm
- Grafika
- :
- Maks. Rozdzielczość
- 4096 x 2304 px
- Obsługa przetwarzania równoległego
- Crossfire
- HDCP
- Tak
- Cechy
- :
- Rodzaj płyty
- ATX
- Kanały wyjścia audio
- 7.1 kan.
- Układ płyty głównej
- Intel Z790
- Monitorowanie stanu komputera
- Wentylator, Temperatura, Napiecie, Water cooling
- Obsługiwane systemy operacyjne Windows
- Windows 10 x64, Windows 11 x64
- Rodzina płyt z chipsetami
- Intel
- Przeznaczenie
- PC
- Wewnętrzne We/Wy
- :
- Końcówki Thunderbolt
- 2
- Łącza USB 3.2 Gen 2 (3.1 Gen 2)
- 1
- Złącze panelu przedniego
- Tak
- Złącze zasilania 12V
- Tak
- Ilość gniazd USB 2.0
- 2
- Gniazdo wentylatora procesora
- Tak
- Gniazdo zasilania ATX (24-pin)
- Tak
- Złącze audio na przednim panelu
- Tak
- Złącze TPM
- Tak
- LED RGB
- Tak
- Złącze zasilacza EPS (8-pin)
- Tak
- Łącza USB 3.2 Gen 1 (3.1 Gen 1)
- 1
- Ilość złączy SATA III
- 4
- Porty We/Wy na tylnym panelu
- :
- Wersja DisplayPort
- 1.2
- Obsługiwany typ USB
- USB Typu-A, USB Type-C
- Ilość portów USB 3.2 Gen 1 (3.1 Gen 1) Typu-A
- 3
- Ilość portów USB 3.2 Gen 2 (3.1 Gen 2) Typu-A
- 2
- Liczba portów USB 2.0
- 4
- Ilość portów Ethernet LAN (RJ-45)
- 1
- Wyjścia słuchawkowe
- 2
- Mikrofon
- Tak
- Port wyjścia s (pdif)
- Tak
- Wtyczka Jack anteny WiFi-AP
- 2
- Ilość portów HDMI
- 1
- Ilość portów USB 3.2 Gen 2x2 typu C
- 1
- Wersja HDMI
- 2.0
- Ilość DisplayPort
- 1
- Sterowniki pamięci
- :
- Poziomy raid
- 0, 1, 5, 10
- Obsługiwane rodzaje dysków
- HDD & SSD
- Wspierane interfejsy dysków twardych
- M.2, PCI Express 4.0, SATA III
- Usługa RAID
- Tak
- Ilość obsługiwanych rozmiarów dysków pamięci
- 10
