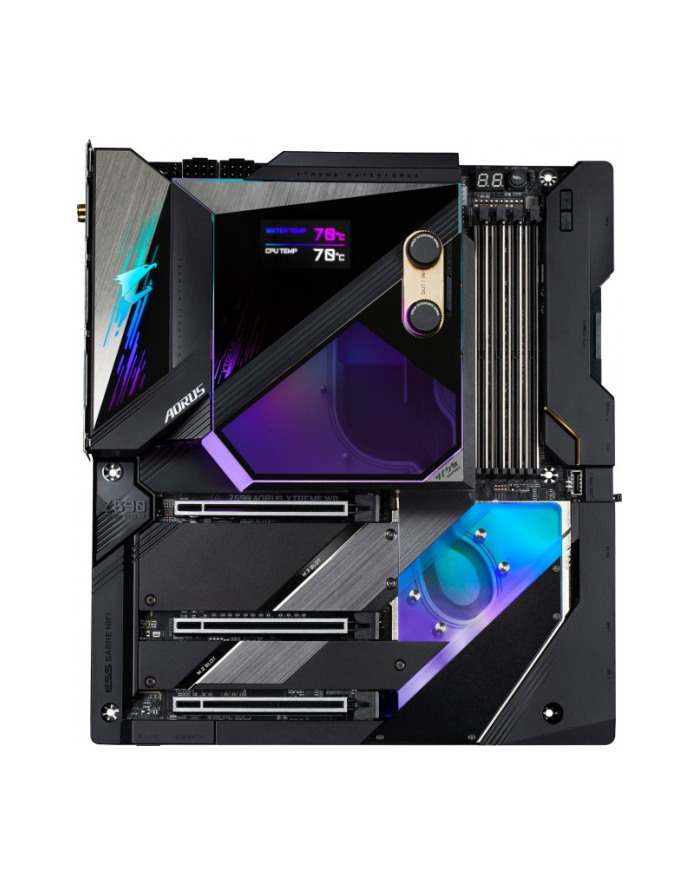

GIGABYTE Z590 AORUS XTREME WB LGA 1200 DDR4 6xSATA 1xM.2 WiFi eATX MB

Z590 AORUS XTREME WATERFORCE Intel® Z590 AORUS Motherboard with 20+1 Phases Digital VRM, NanoCarbon Baseplate, Intel® Thunderbolt 4, ESSential USB DAC, AORUS PRO Gen4 AIC Adaptor, Intel® WiFi 6E 802.11ax, AQUANTIA® 10GbE LAN Supports 11th and 10th Gen Intel® Core™ Series Processors Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs 20+1 Phases Digital VRM Solution with 100A Smart Power Stage and Tantalum Polymer Capacitors Array XTREME MEMORY with SMT DIMM and Shielded Memory Routing Thermal Reactive Armor with All in One Monoblock and NanoCarbon Baseplate Intel® Thunderbolt™ 4 Onboard Onboard Intel® WiFi 6E 802.11ax 2T2R & BT 5 with 2X AORUS Antenna Exclusively bundled ESSential USB DAC 127dB SNR AMP-UP Audio with High-End ESS SABRE 9018K2M DAC, LME 49720, OPA1622 and WIMA Audio Capacitors AQUANTIA® 10GbE BASE-T LAN and Intel® 2.5GbE LAN with cFosSpeed Exclusively bundled AORUS PRO Gen4 AIC Adaptor Triple Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guards II RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card * Actual support may vary by CPU. CPU LGA1200 package:11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors** Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.L3 cache varies with CPU(Please refer to "CPU Support List" for more information.) Chipset Intel® Z590 Express Chipset Memory 11th Generation Intel® Core™ i9/i7/i5 processors:Support for DDR4 5400 (O.C) / DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz10th Generation Intel® Core™ i9/i7 processorsSupport for DDR4 2933/2666/2400/2133 MHz memory modules10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:Support for DDR4 2666/2400/2133 MHz memory modules4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor+Intel® Thunderbolt™ 4 Controller:2 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp (via single display output)* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.)* Support for DisplayPort 1.4 version, HDCP 2.3Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz* Support for HDMI 1.4 version and HDCP 2.3.(Graphics specifications may vary depending on CPU support.) Audio Realtek® ALC1220-VB codec+ESS ES9018K2M DAC+TI OPA1622 operational amplifier* The front panel line out jack supports DSD audio.Support for DTS:X® UltraHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out LAN 1 x Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (LAN1)1 x Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (LAN2) Wireless Communication module Intel® Wi-Fi 6E AX210WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.2Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate* Actual data rate may vary depending on environment and equipment.* Wi-Fi 6E and its 6GHz carrier frequency support may vary by country. Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot, running at x8 (PCIEX8)* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.(The PCIEX16 and PCIEX8 slots conform to PCI Express 4.0 standard.)** Supported by 11th Generation processors only.1 x PCI Express x16 slot, running at x4 (PCIEX4)(The PCI Express x4 slot conforms to PCI Express 3.0 standard.) Multi-Graphics Technology Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Storage Interface CPU:1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)** Supported by 11th Generation processors only.Chipset:1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M_SB)6 x SATA 6Gb/s connectors* Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.Support for RAID 0, RAID 1, RAID 5, and RAID 10Intel® Optane™ Memory Ready USB Chipset+Intel® Thunderbolt™ 4 Controller:2 x USB Type-C® ports on the back panel, with USB 3.2 Gen 2 supportChipset:1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header2 x USB 3.2 Gen 2 Type-A ports (red) on the back panelChipset+2 USB 3.2 Gen 2 Hubs:6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel2 x USB 3.2 Gen 1 ports available through the internal USB headerChipset+USB 2.0 Hubs:4 x USB 2.0/1.1 ports available through the internal USB headers (with the included front USB header extension cable) Internal I/O Connectors 1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x water cooling CPU fan header1 x water cooling kit CPU LED header (LED_CPU)1 x water cooling kit Chipset LED header (LED_PCH)6 x system fan headers2 x system fan/water cooling pump headers1 x noise detection header2 x integrated extension cable headers for addressable and RGB LED strips6 x SATA 6Gb/s connectors3 x M.2 Socket 3 connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 headers2 x temperature sensor headers1 x power button1 x reset button1 x OC Ignition button2 x BIOS switchesVoltage Measurement Points*All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. Back Panel Connectors 1 x Q-Flash Plus button1 x Clear CMOS button2 x SMA antenna connectors (2T2R)2 x Thunderbolt™ 4 connectors (USB Type-C® port, with USB 3.2 Gen 2 support)8 x USB 3.2 Gen 2 Type-A ports (red)1 x HDMI port2 x RJ-45 port1 x optical S/PDIF Out connector5 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.Noise detection BIOS 2 x 256 Mbit flashUse of licensed AMI UEFI BIOSSupport for DualBIOS™PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress Install Bundled Software Norton® Internet Security (OEM version)cFosSpeed Operating System Support for Windows 10 64-bit Form Factor E-ATX Form Factor; 30.5cm x 27cm
