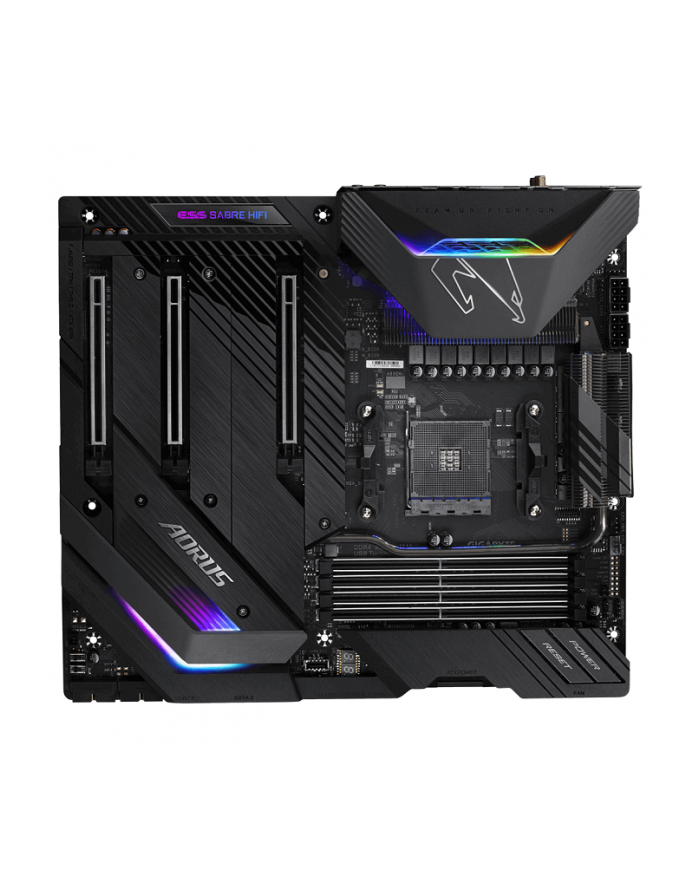

Gigabyte X570 AORUS XTREME, AM4, AMD X570, DDR4, 3xM.2 Socket 3, 6xSATA 6Gb/s

X570 AORUS XTREME (rev. 1.0) AMD X570 AORUS Motherboard with Direct 16 Phases Infineon Digital VRM, Fins-Array Heatsink, NanoCarbon Baseplate, Triple PCIe 4.0 M.2 with Thermal Guards, Intel® WiFi 6 802.11ax, ESS SABRE HiFi 9218, AQUANTIA® 10GbE LAN+1GbE LAN, RGB FAN COMMANDER, RGB Fusion 2.0 Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs Direct 16 Phases Infineon Digital VRM Solution with 70A PowIRstage Thermal Reactive Armor Design with Fins-Array Heatsink, Direct Touch Heatpipe and NanoCarbon Baseplate Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Triple Thermal Guards Onboard Intel® WiFi 6 802.11ax 2T2R & BT 5 with 2X AORUS Antenna Rear 130dB SNR AMP-UP Audio with ALC1220-VB & ESS SABRE 9218 DAC with WIMA Audio Capacitors AQUANTIA® 10GbE BASE-T LAN + Intel® Gigabit LAN with cFosSpeed Exclusive RGB FAN COMMANDER for Professional Casemoders USB TurboCharger for Mobile Device Fast Charge Support RGB FUSION with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection Front & Rear USB 3.2 Gen 2 Type-C™ Headers Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card TECHNICAL SPECIFICATIONS CPU AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors(Please refer "CPU Support List" for more information.) Chipset AMD X570 Memory 3rd Generation AMD Ryzen™ processors: Support for DDR4 3200/2933/2667/2400/2133 MHz memory modules 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: Support for DDR4 2933/2667/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Audio Realtek® ALC1220-VB codec* The front panel line out jack supports DSD audio. ESS SABRE9218 DAC chip High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out LAN 1 x Aquantia GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1000 Mbit/100 Mbit) (LAN1) 1 x Intel® GbE LAN phy (10/100/1000 Mbit) (LAN2) Wireless Communication module Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment. Expansion Slots Integrated in the CPU (PCIEX16/PCIEX8): 3rd Generation AMD Ryzen™ processors:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) 2nd Generation AMD Ryzen™ processors:1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode. 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4* For 3rd Generation AMD Ryzen™ processors only. Multi-Graphics Technology Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies * For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only. Storage Interface Integrated in the CPU (M2A_SOCKET): 3rd Generation AMD Ryzen™ processors:1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET)* For 3rd Generation AMD Ryzen™ processors only. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2C_SOCKET)* For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10* Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors. USB Integrated in the CPU: 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) on the back panel* For 3rd Generation AMD Ryzen™ processors only. 2 x USB 3.2 Gen 1 ports on the back panel Integrated in the Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 3 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports available through the internal USB header Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel Internal I/O Connectors 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x OC PEG power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 1 x USB 2.0/1.1 header 1 x noise detection header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 2 x temperature sensor headers 1 x power button 1 x reset button 2 x BIOS switches Voltage Measurement Points Back Panel Connectors 1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red)* For 3rd Generation AMD Ryzen™ processors only. 3 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection BIOS 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSAutoGreenCloud StationEasyTuneFast BootGame BoostRGB FusionSmart BackupSmart KeyboardSmart SurveySystem Information ViewerUSB BlockerUSB TurboCharger Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Bundled Software Norton® Internet Security (OEM version) cFosSpeed XSplit Gamecaster + Broadcaster (12 months license) Operating System Support for Windows 10 64-bit Form Factor E-ATX Form Factor; 30.5cm x 27.0cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Budowa: E-ATX (SSI CEB)
Chipset: AMD X570
CPU-Kompatybilność: Ryzen 3000, Ryzen 3000G/GE, Ryzen 2000, Ryzen 2000G/GE, TDP-Limit: 105W (Producent)
VRM: 16 rzeczywistych faz (14+2), tylko realne fazy, PWM-Kontroler: XDPE132G5C (max. 16 faz)
MOSFETs CPU: 14x 70A TDA21472
MOSFETs SoC: 2x 70A TDA21472
RAM: 4x DDR4 DIMM, dual PC4-35200U/?DDR4-4400 (OC), max. 128GB (UDIMM)
Sloty rozszerzeń: 3x PCIe 4.0 x16 (1x x16, 1x x8, 1x x4), 3x M.2/?M-Key (PCIe 4.0 x4/?SATA, 22110/?2280/?2260/?2242)
Złącza zewnętrzne: 1x USB-C 3.1 (X570), 3x USB-A 3.1 (X570), 2x USB-A 3.1 (CPU), 2x USB-A 3.0, 4x USB-A 2.0, 1x 10GBase-T (Aquantia AQtion AQC107), 1x Gb LAN (Intel I211-AT), 5x wtyczka jack, 1x Toslink
Złącza wewnętrzne: 1x USB-C 3.1 (20-Pin Key-A Header, X570), 4x USB 3.0, 2x USB 2.0, 6x SATA 6Gb/s (X570), 1x TPM-Header
Header Chłodzenie: 1x Wentylatory CPU 4-Pin, 1x Wentylatory CPU/?pompa 4-Pin, 4x wentylator 4-Pin, 2x wentylator/?pompa 4-Pin, 2x Thermal-czujnik
Header Oświetlenie: 2x RGB-Header 4-Pin (5050), 2x RGB-Header 3-Pin (WS2812B)
Przyciski/przełączniki: przycisk Power (wewn.), przycisk Reset (wewn.), Clear-CMOS-Button (zewn.), USB BIOS Flashback/?Q-Flash Plus (zewn.), 2x przełącznik BIOS (wewn.)
Audio: 7.1 (Realtek ALC1220), DAC (ESS ES9218 Sabre)
Poziom RAID: 0/?1/?10 (X570)
Multi GPU: NVIDIA 2-Way-SLI (x8/?x8), AMD 2-Way-CrossFireX (x8/?x8)
Złącza zasilania: 1x 24-Pin ATX, 2x 8-Pin EPS12V, 1x 6-Pin PCIe
Grafika: brak
Oświetlenie: RGB, 3 Strefy (chłodzenie chipsetu, I/?O-przykrycie, Audio-przykrycie)
Cechy dodatkowe produktu: AMD X570 bez wentylatora, Audio+solid capacitors, dioda diagnostyczna (wyświetlacz segmentowy), Dual BIOS, 3x pasywne chłodzenie M.2, punkty pomiaru napięcia, I/?O-zaślepka zintegrowany, backplate, front, Bluetooth 5.0 + WLAN 802.11a/?b/?g/?n/?ac/?ax (2x2, Intel)
Gwarancja producenta: trzy lata (od daty produkcji, realizacja przez sklepy)
Uwaga: pisowania USB


Gigabyte X570 AORUS XTREME (rev. 1.0). Producent procesora: AMD, Gniazdo procesora: Socket AM4, Procesor: 2nd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 5, 3rd.... Obsługiwane rodzaje pamięci: DDR4-SDRAM, Maksymalna pojemność pamięci: 128 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2,SATA III. Obsługa przetwarzania równoległego: 2-Way CrossFireX,2-Way SLI,Quad-GPU CrossFireX,Quad-GPU SLI. Rodzaj interfejsu sieci Ethernet: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Standardy Wi- Fi: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
