gigabyte Płyta główna B760M GAMING X AX s1700 DDR4 mATX

B760M GAMING X AX DDR4 Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors Unparalleled Performance:Hybrid 8+1+1 Phases Digital VRM Solution Dual Channel DDR4:4*DIMMs XMP Memory Module Support Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors Advanced Thermal Design & M.2 Thermal Guard :To Ensure VRM Power Stability & M.2 SSD Performance EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design Fast Networks:2.5GbE LAN & Intel® Wi-Fi 6E 802.11ax Extended Connectivity:Front USB-C® 10Gb/s, DP, HDMI Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card CPU LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® ProcessorsL3 cache varies with CPU(Please refer "CPU Support List" for more information.) Chipset Intel® B760 Express Chipset Memory Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.31 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.0 version and HDCP 2.3.(Graphics specifications may vary depending on CPU support.) Audio Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module AMD Wi-Fi 6E RZ608 (MT7921K)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.2Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate(Actual data rate may vary depending on environment and equipment.) Expansion Slots CPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) Storage Interface CPU:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB Chipset:1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)1 x USB 2.0/1.1 port on the back panelChipset+2 USB 2.0 Hubs:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Internal I/O Connectors 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers2 x addressable LED strip headers2 x RGB LED strip headers2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB Type-C® header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt™ add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x reset button1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumper Back Panel Connectors 3 x USB 3.2 Gen 1 ports5 x USB 2.0/1.1 ports2 x SMA antenna connectors (2T2R)1 x HDMI 2.0 port1 x DisplayPort1 x RJ-45 port3 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install. BIOS 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash Plus Bundled Software Norton® Internet Security (OEM version)LAN bandwidth management software Operating System Support for Windows 11 64-bitSupport for Windows 10 64-bit Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

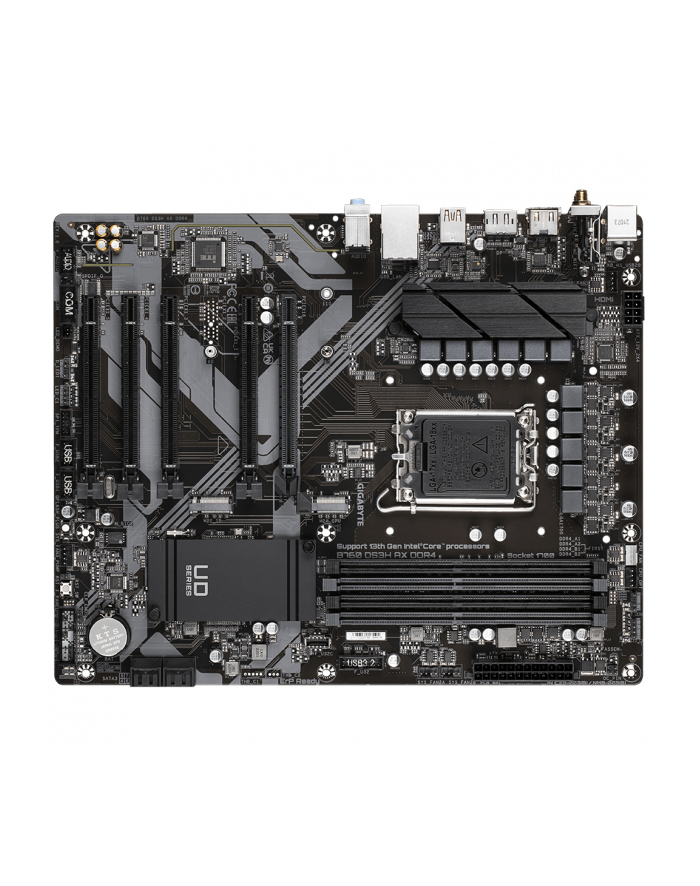

Gigabyte B760 DS3H AX DDR4. Producent procesora: Intel, Gniazdo procesora: LGA 1700, Procesor: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Obsługiwane rodzaje pamięci: DDR4-SDRAM, Maksymalna pojemność pamięci: 128 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2, PCI Express 4.0, SATA III, Obsługiwane rodzaje dysków: HDD & SSD, Poziomy raid: 0, 1, 5, 10. Maks. rozdzielczość: 4096 x 2304 px. Obsługiwany typ USB: USB Typu-A, USB Type-C
