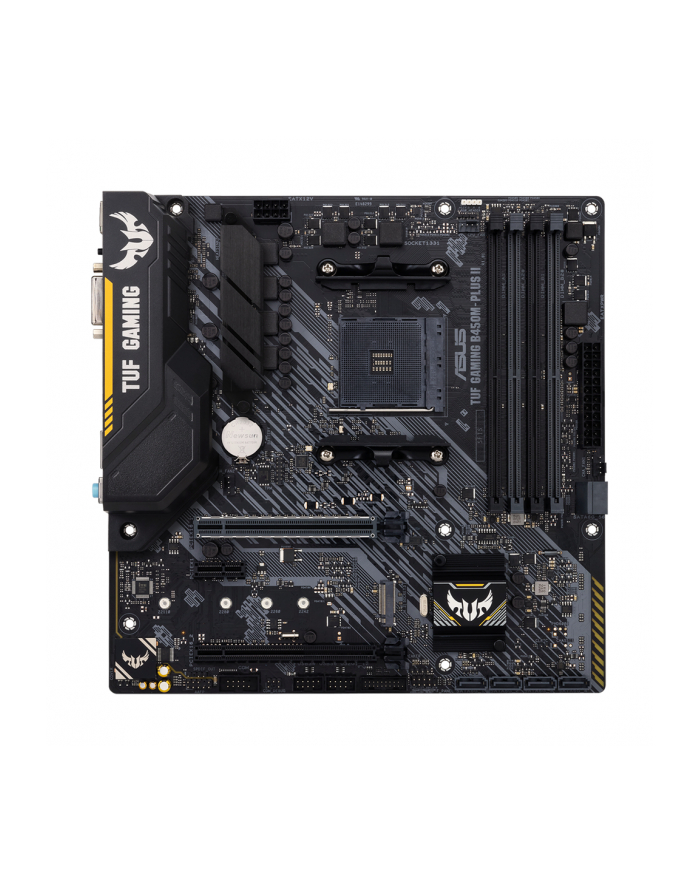

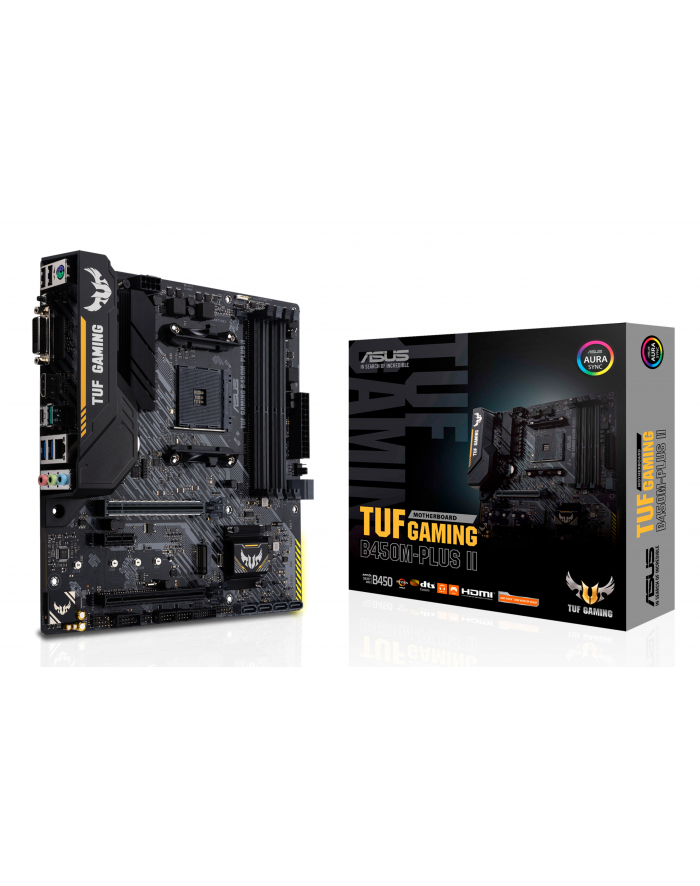

Asus TUF GAMING B450M-PLUS II - Socket AM4 - Mainboard

TUF GAMING B450M-PLUS II AMD B450 (AM4) micro ATX gaming motherboard with M.2 support, AI Noise-Canceling Microphone, HDMI, DVI-D, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1 Type-A and Type-C, Aura Sync RGB lighting support Comprehensive cooling: VRM heatsink, PCH heatsink, Fan Xpert 2+ Next-gen connectivity: USB 3.2 Gen 2 Type-A support AI Noise-Canceling Microphone: Provides crystal-clear in-game voice communication Aura Sync RGB Lighting: Synchronize LED lighting with a vast portfolio of compatible PC gear TECHNICAL SPECIFICATIONS CPU AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors ** Refer to www.asus.com for CPU support list Chipset AMD B450 Memory 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3533(O.C)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *Dual Channel Memory ArchitectureECC Memory (ECC mode) support varies by CPU.* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).* The maximum memory frequency supported varies by processor. Graphic Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors1 x HDMI 2.0b1 x DVI-D*Graphics specifications may vary between CPU types. Multi-GPU Support Supports AMD 2-Way CrossFireX Technology Expansion Slots 3rd/2nd/1st Gen AMD Ryzen™ Processors1 x PCIe 3.0/2.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors1 x PCIe 3.0/2.0 x16 (x8 mode) Athlon™ with Radeon™ Vega Graphics Processors1 x PCIe 3.0/2.0 x16 (max at x4 mode) AMD B450 chipset1 x PCIe 2.0 x16 (x4 mode)1 x PCIe 2.0 x1 Storage Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics :1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support*1 Athlon™ with Radeon™ Vega Graphics Processors :1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*1 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors :2 x SATA 6Gb/s port(s),Support Raid 0, 1, 10 AMD B450 chipset :4 x SATA 6Gb/s port(s),Support Raid 0, 1, 10 LAN Realtek RTL8111H 1Gb EthernetTUF LANGuard Audio Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playbackAudio Feature :- Exclusive DTS Custom for GAMING Headsets.- Audio cover- Audio Shielding- Dedicated audio PCB layers- Premium Japanese audio capacitors USB Ports Rear USB Port ( Total 6 )1 x USB 3.2 Gen 2 port(s)(1 x Type-A)3 x USB 3.2 Gen 1 port(s)(2 x Type-A +1 x Type-C)2 x USB 2.0 port(s)(2 x Type-A)Front USB Port ( Total 6 )2 x USB 3.2 Gen 1 port(s)(2 x Type-A)4 x USB 2.0 port(s)(4 x Type-A) Software Features ASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- AI Noise-Canceling MicrophoneAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDigi+ VRMFan Xpert 2+- EZ update- PC CleanerTUF GAMING CPU-ZAI ChargerASUS Turbo LANDAEMON ToolsDTS Custom for GAMING HeadsetsNorton Anti-virus software (Free Trial for 60 days)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode ASUS Special Features ASUS TUF PROTECTION- ASUS DIGI+ VRM- ASUS Enhanced DRAM Overcurrent Protection- ASUS ESD Guards- TUF LANGuard- ASUS Overvoltage Protection- ASUS SafeSlot- ASUS Stainless-Steel Back I/OASUS Q-Design- ASUS Q-DIMM- ASUS Q-SlotASUS Thermal Solution- Aluminum heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LEDAURA Sync- AURA RGB header Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)1 x DVI-D1 x HDMI1 x LAN (RJ45) port(s)1 x USB 3.2 Gen 2 (teal blue)Type-A,2 x USB 3.2 Gen 1 (blue) Type-A1 x USB 3.2 Gen 1 (black) Type-C2 x USB 2.03 x Audio jack(s)1 x BIOS FlashBack™ Button(s) Internal I/O Ports 1 x CPU Fan connector(s)2 x Chassis Fan connector(s)1 x Aura RGB Strip Header1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x SPI TPM header6 x SATA 6Gb/s connector(s)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors1 x Front panel audio connector(s) (AAFP)1 x Clear CMOS jumper(s)1 x System panel connector1 x COM port header1 x Speaker connector Accessories User's manualI/O Shield2 x SATA 6Gb/s cable(s)1 x Supporting DVD1 x TUF Gaming Sticker1 x TUF Certification card(s)1 x M.2 SSD screw package(s) BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PXE Operating System Windows® 10 64-bitWindows® 7 64-bit *2 Form Factor mATX Form Factor9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) Note *1 The M.2 slot shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed.*2 To support Windows 7 64-bit, please install an AMD Ryzen™ 2nd Generation or Ryzen™ 1st Generation Processor.

Typ produktu: płyta główna
EAN: 4718017927185
Kod producenta: 90MB1620-M0EAY0
Gniazdo: AM4
Maksymalna obsługiwana liczba procesorów: 1
System operacyjny: gotowy na Windows 10
Procesor: Procesory AMD® RYZEN Series dla Socket AM4 [Athlon xxxGE (Raven Ridge), Ryzen 3 1xxx (Summit Ridge), Ryzen 5 1xxx (Summit Ridge), Ryzen 5 1xxx (Pinnacle Ridge), Ryzen 7 1xxx (Summit Ridge), Ryzen 3 1xxxX (Summit Ridge), Ryzen 5 1xxxX (Summit Ridge), Ryzen 7 1xxxX (Summit Ridge), Ryzen 3 PRO 1xxx (Summit Ridge), Ryzen 5 PRO 1xxx (Summit Ridge), Ryzen 7 PRO 1xxx (Summit Ridge) , Ryzen 3 PRO 1xxxX (Summit Ridge), Ryzen 5 PRO 1xxxX (Summit Ridge), Ryzen 7 PRO 1xxxX (Summit Ridge), Ryzen 3 2xxxG (Raven Ridge), Ryzen 5 2xxxG (Raven Ridge), Ryzen 5 2xxx (Pinnacle Ridge) ), Ryzen 5 2xxxX (Pinnacle Ridge), Ryzen 7 2xxx (Pinnacle Ridge), Ryzen 7 2xxxX (Pinnacle Ridge), Ryzen 3 3xxx (Matisse), Ryzen 3 3xxxG (Picasso), Ryzen 3 3xxxX (Matisse), Ryzen 5 3xxx (Matisse), Ryzen 5 3xxxG (Picasso), Ryzen 5 3xxxX (Matisse), Ryzen 5 3xxxXT (Matisse), Ryzen 5 4xxx (Renoir), Ryzen 7 3xxx (Matisse), Ryzen 7 3xxxX (Matisse), Ryzen 7 3xxxXT ( Matisse), Ryzen 9 3xxxX (Matisse), Ryzen 9 3xxxXT (Matisse)]
Chipset: AMD B450
Sloty: 1x
: 1
: 1
BIOS: 256Mbit AMI UEFI
: TAk
Współczynnik kształtu: µATX
Użyj: komputer osobisty
Zasilanie: ATX12V (24-pin + 8-pin)
Pamięć: 128 GB
: 4x DDR4
SDRAM DDR4
: DDR4-2133, DDR4-2400, DDR4-2666, DDR4-2800 (chłodzenie), DDR4-3000 (chłodzenie), DDR4-3066 (chłodzenie), DDR4-3200 (chłodzenie)
: 2
: 8.
: TAk
: TAk
: 8192 Mbit
Połączenia (zewnętrzne): 1
: 1
: 1
: 2
: Oznaczenie USB 3.2 Gen 1 odpowiada wcześniejszym oznaczeniom USB 3.1 Gen 1 lub USB 3.0.
Oznaczenie USB 3.2 Gen 2 odpowiada wcześniejszym oznaczeniom USB 3.1 Gen 2 lub USB 3.1.
: 2
: 1
: 1
: 1
: 1
: 1
: 1
Połączenia (wewnętrzne): 6
: 1
: M
: SATA, PCIe
: 42 - 110mm
: 1
: 3
Połączenia (opcjonalnie): 4
: 2
Kontroler SATA: AMD B450
bezpośrednio używane poziomy RAID: 0, 1, 10
Kontroler USB: AMD B450
Wbudowana grafika: Połączenia graficzne na płycie głównej mogą być używane tylko w przypadku korzystania z procesora ze zintegrowanym układem graficznym.
Dźwięk: Realtek ALC887-VD2
LAN: Realtek RTL8111H Gigabit LAN
Cechy: CrossFireX
Informacje dodatkowe: W celu obsługi najnowszych rdzeni procesora może być wymagana aktualizacja systemu BIOS. Interfejsy graficzne płyty głównej mogą być używane tylko w przypadku korzystania z procesora ze zintegrowanym układem graficznym.
Wymiary: Szerokość: 244mm x Głębokość/Długość: 305mm
Waga: 1,1 kg

ASUS TUF Gaming B450M-Plus II. Producent procesora: AMD, Gniazdo procesora: Socket AM4, Procesor: AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 3, AMD Ryzen™ 5, 2nd.... Obsługiwane rodzaje pamięci: DDR4-SDRAM, Maksymalna pojemność pamięci: 128 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2,SATA,SATA II,SATA III. Rodzaj interfejsu sieci Ethernet: Gigabit Ethernet. Przeznaczenie: PC, Rodzaj płyty: micro ATX, Rodzina płyt z chipsetami: AMD
