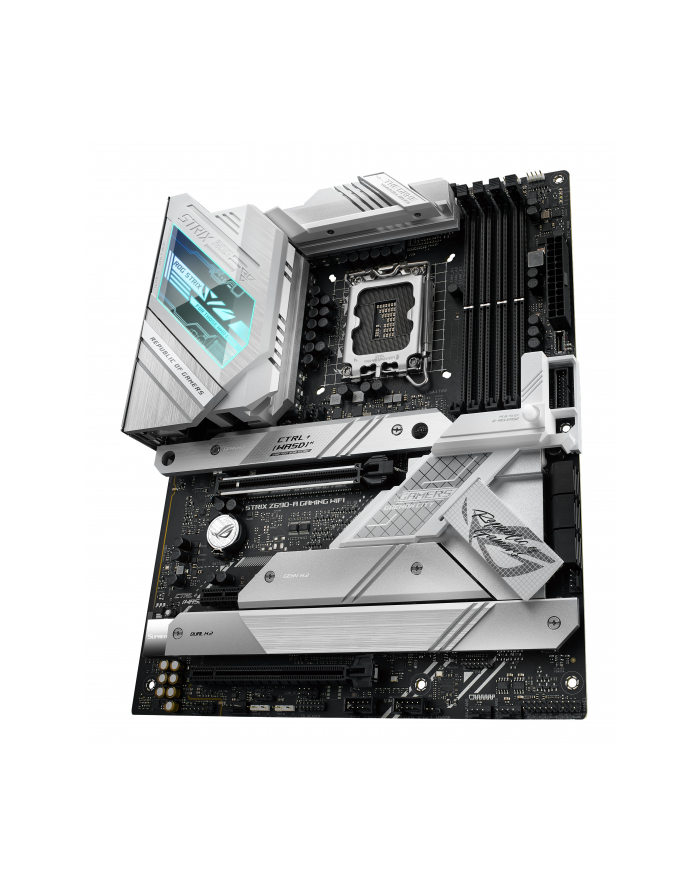

ASUS ROG STRIX Z690-A GAMING WIFI, motherboard - Socket 1700

ROG STRIX Z690-A GAMING WIFI Intel® Z690 LGA 1700 ATX motherboard with PCIe® 5.0, 16+1 DrMos, DDR5, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E, Intel 2.5 Gb Ethernet, four M.2 slots with heatsinks PCIe 4.0 NVMe® SSD support, M.2 backplate, USB 3.2 Gen 2x2 Type-C®, SATA and AURA Sync RGB lighting Intel® LGA 1700 socket: Ready for 12th Gen Intel Core™, Pentium® Gold and Celeron® Processors Optimal Power Solution: 16+1 DrMos with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, four onboard M.2 heatsinks and M.2 backplate for the first M.2 slot High-performance Networking: On-board Intel® WiFi 6E and Intel® 2.5 Gb Ethernet with ASUS LANGuard Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, four M.2 slots, as well as USB 3.2 Gen 2x2 Type-C® Intelligent Control:? ASUS-exclusive AI Overclocking and Two-Way AI Noise Cancelation to simplify setup and improve performance DIY Friendly Design: PCIe®Slot Q-Release, M.2 Q-Latch, ROG Reusable Cable Organizer, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and three addressable Gen 2 headers Industry-leading Gaming Audio: High fidelity audio with ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86 CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® ProcessorsIntel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Z690 Memory 4 x DIMM, Max. 128GB, DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)OptiMem II*Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphics 1 x DisplayPort** 1 x HDMI®**** Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.** Support 8K@60Hz as specified in DisplayPort 1.4*** Support 4K@60Hz as specified in HDMI 2.1. Expansion Slots Intel® 12th Gen Processors1 x PCIe 5.0/4.0/3.0 x16 slot*Intel® Z690 Chipset**1 x PCIe 3.0 x16 slot (supports x4 mode)*1 x PCIe 3.0 x1 slot* Please check PCIe bifurcation table in User Guide Chapter 1 // support site.** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot Storage Intel® 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280/22110- Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® Z690 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)6 x SATA 6Gb/s ports**** Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. *** RAID configuration is not supported on the SATA6G_E1-2 ports. Wireless & Bluetooth Intel® Wi-Fi 6EWi-Fi 6E2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band*Bluetooth v5.2 hardware ready*** WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. ** Bluetooth v5.2 function will be ready in Windows 11 or later. USB Rear USB:Total 10 ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)4 x USB 3.2 Gen 1 ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB:Total 7 ports1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)1 x USB 3.2 Gen 1 header support(s) additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input- Supports up to 32-Bit/384 kHz playbackAudio Features - SupremeFX Shielding Technology- Savitech SV3H712 AMP - Premium audio capacitors- Audio cover* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®)4 x USB 3.2 Gen 1 ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort1 x HDMI® port1 x Wi-Fi Module1 x Intel® 2.5Gb Ethernet port5 x Audio jacks 1 x BIOS FlashBack™ button 1 x Clear CMOS button Internal I/O Connectors Fan and cooling related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header5 x 4-pin Chassis Fan headersPower related 1 x 24-pin Main Power connector2 x 8-pin +12V Power connectorsStorage related 4 x M.2 slots (Key M) 6 x SATA 6Gb/s portsUSB 1 x USB 3.2 Gen 2x2 connector (support USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x AURA RGB header1 x Clear CMOS header1 x CPU Over Voltage jumper1 x 12-1 pin Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x SPI TPM header (14-1pin)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thermal Sensor header1 x Thunderbolt™ header Special Features Extreme Engine Digi+-5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch- PCIe Slot Q-Release- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink backplate- M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Clear CMOS button- CPU Socket lever protector- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMMAURA Sync- AURA RGB header- Addressable Gen 2 headersASUS HYDRANODE- 1 x 12-1 pin Front Panel Audio header (AAFP)- 1 x Chassis fan support* (CHA_FAN1P)* Visit ASUS Website for the latest compatibility list. Software Features ROG Exclusive Software- GameFirst VI- ROG CPU-Z- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion- Sonic Radar III- DTS® Sound Unbound - Anti-virus softwareASUS Exclusive SoftwareArmoury Crate- AIDA64 Extreme (60 days free trial) - AURA Creator- AURA Sync- Fan Xpert 4 - Two-Way AI Noise CancelationAI Suite 3- Easy Optimization with AI Overclocking TPU EPU DIGI+ VRM Turbo appMyAsusWinRARUEFI BIOSAI Overclocking GuideASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ ModeFlexKeyMemTest86 BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables4 x SATA 6Gb/s cables Miscellaneous1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack1 x M.2 Rubber Package1 x M.2 Q-Latch package1 x ROG key chain1 x ROG Strix stickers1 x ROG Strix thank you cardInstallation Media1 x Support DVDDocumentation1 x User guide Form Factor 30.5cm x 24.4cm

Typ produktu: płyta główna
EAN: 4711081682110
Kod producenta: 90MB1AP0-M0EAY0
Gniazdo: 1700
Maksymalna obsługiwana liczba procesorów: 1
System operacyjny: gotowy na Windows 10
Procesor: Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core i7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxF (Alder Lake), Core i9 12xxx (Alder Lake), Core i9 12xxxK (Alder Lake), Core i9 12xxxKF (Alder Lake), Core i9 12xxxT (Alder Lake), Core i9 12xxxF (Alder Lake), Core i9 12xxxKS ( Jezioro Olchowe), Core i9 13xxxK (Jezioro Raptor), Pentium Gold Gxxxx (Jezioro Olchowe), Celeron Gxxxx (Jezioro Olchowe)
Chipset: Intel® Z690
Gniazda: 2x (w tym: 1x PCIe x16, 1x PCIe x4)
: 1
BIOS: 256Mbit UEFI AMI BIOS
: TAk
: TAk
Współczynnik kształtu: ATX
Użyj: komputer osobisty
Zasilanie: ATX12V (24-pinowe + 2x 8-pinowe)
Pamięć: 128 GB
: 4x DDR5
: DDR5-6400/4800 MHz
: 2
: 8.
: TAk
: 8192 Mbit
Połączenia (zewnętrzne): 1
: 2
: 2
: 4
: Oznaczenie USB 3.2 Gen 1 odpowiada wcześniejszym oznaczeniom USB 3.1 Gen 1 lub USB 3.0.
Oznaczenie USB 3.2 Gen 2 odpowiada wcześniejszym oznaczeniom USB 3.1 Gen 2 lub USB 3.1.
: 2
: 1
: 1
: 1
: 1
: 3
: 1
: 1
: TAk
: TAk
Połączenia (wewnętrzne): 6
: 4
: M
: SATA, PCIe
: 42 - 110mm
: 1
: 3
: 8.
Połączenia (opcjonalnie): 2
: 1
: 4
: 1
: TAk
Domyślny RGB: synchronizacja AURA
Kontroler SATA: Intel® Z690
bezpośrednio używane poziomy RAID: 0, 1, 10, 5
Kontroler USB: Intel® Z690
Wbudowana grafika: Połączenia graficzne na płycie głównej mogą być używane tylko w przypadku korzystania z procesora ze zintegrowanym układem graficznym.
Dźwięk: ROG SupremeFX 7.1 ALC4080 + wzmacniacz Savitech SV3H712
Sieć LAN: Intel® 2,5 Gb Ethernet
: Intel® Wi-Fi 6E + Bluetooth 5.2
Informacje dodatkowe: W celu obsługi najnowszych rdzeni procesora może być wymagana aktualizacja systemu BIOS. Bluetooth 5.2 jest obsługiwany od systemu Windows 10 w wersji 21H1.
Akcesoria: 4 x kable SATA 6 Gb/s, 1 x ruchome anteny ASUS Wi-Fi, 1 x opaska kablowa, 1 x gumowy pakiet M.2, 1 x M.2 Q-Latch pack, 1 x DVD z obsługą, 1 x instrukcja obsługi


Wymiary: szerokość: 244mm x wysokość: 305mm

ASUS ROG STRIX Z690-A GAMING WIFI. Producent procesora: Intel, Gniazdo procesora: LGA 1700, Procesor: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Obsługiwane rodzaje pamięci: DDR5-SDRAM, Maksymalna pojemność pamięci: 128 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2,SATA III, Obsługiwane rodzaje dysków: HDD & SSD. Rodzaj interfejsu sieci Ethernet: 2.5 Gigabit Ethernet, Podstawowy standard Wi-Fi: Wi-Fi 6E (802.11ax), Standardy Wi- Fi: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax). Przeznaczenie: PC, Rodzaj płyty: ATX, Rodzina płyt z chipsetami: Intel
