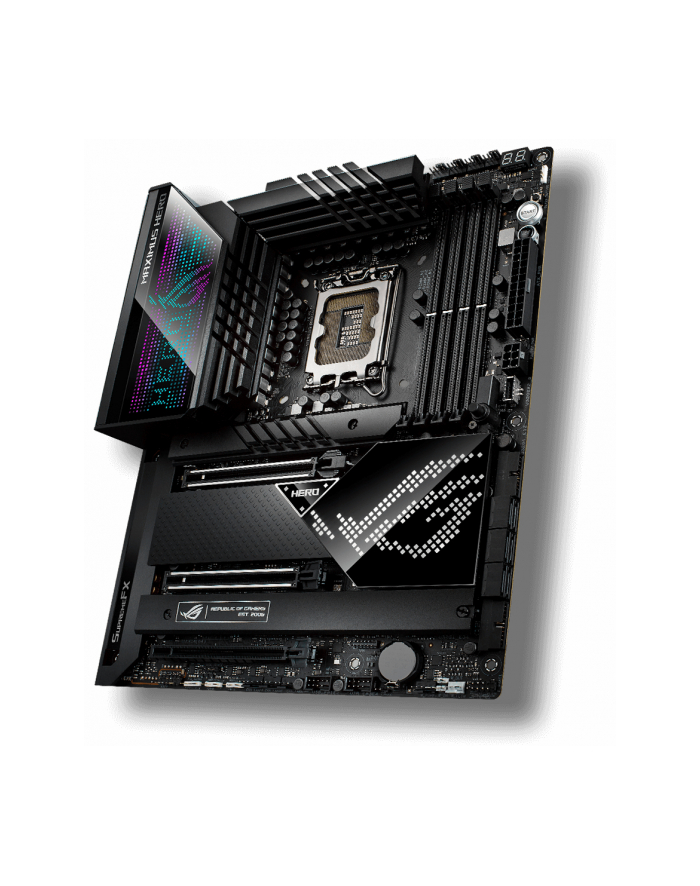

ASUS ROG MAXIMUS Z690 HERO LGA 1700

ROG MAXIMUS Z690 HERO CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® Z690 Chipset Memory 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 MHz Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)* Actual Memory frequency support depends on the CPU types and DRAM moduless, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphics 1 x HDMI® port**2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.**Support 4K@60Hz as specified in HDMI 2.1. Expansion Slots Intel® 12th Gen Processors*2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)**Intel® Z690 Chipset***1 x PCIe 4.0 x16 slot (supports x4, x4/x4 modes)* Please check PCIe bifurcation table in Chapter 1.** When ROG Hyper M.2 card is installed on PCIEX16(G5)_1, PCIEX16(G5)_2 will run x8 only and if ROG Hyper M.2 card is installed on PCIEX16(G5)_2, PCIEX16(G5)_1 will run x8 only.*** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot. Storage Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports*Intel® 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel® 12th Gen processors support PCIe 4.0 x4 mode.Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110***- Intel® 12th Gen processors support PCIe 5.0 x4 modeIntel® Z690 Chipset**M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)***Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)****6 x SATA 6Gb/s ports****** Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.*** When ROG Hyper M.2 card is installed on PCIEX16(G5)_1, Hyper M.2_1 slot can support PCIe 4.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G5)_2, Hyper M.2_1 slot can support PCIe 5.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G4), Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode.**** When ROG Hyper M.2 card is installed on PCIEX16(G5)_1 or PCIEX16(G5)_2, Hyper M.2_2 slot will be disabled. When ROG Hyper M.2 card is installed on PCIEX16(G4), Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode.***** RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports Ethernet 1 x Intel® 2.5Gb EthernetASUS LANGuard Wireless & Bluetooth Wi-Fi 6E2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band*Bluetooth v5.2 hardware ready*** WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. USB Rear USB (Total 11 ports)2 x Thunderbolt™ 4 ports (2 x USB Type-C®)7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®)2 x USB 2.0 ports (2 x Type-A) Front USB (Total 9 ports)1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input- Supports up to 32-Bit/384 kHz playbackAudio Features - SupremeFX Shielding Technology- ESS® SABRE9018Q2C DAC/AMP- Gold-plated audio jacks- Rear optical S/PDIF out port- Premium audio capacitors- Audio cover Back Panel I/O Ports 2 x Thunderbolt™ 4 USB Type-C® ports7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®)2 x USB 2.0 ports (2 x Type-A)1 x HDMI® port1 x Wi-Fi Module1 x Intel® 2.5Gb Ethernet port5 x Gold-plated audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™ button 1 x Clear CMOS button Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header4 x 4-pin Chassis Fan headers1 x W_PUMP+ header1 x 2-pin Water In header1 x 2-pin Water Out header1 x 3-pin Water Flow headerPower related 1 x 24-pin Main Power connector2 x 8-pin +12V Power connector1 x 6-pin PCIe Graphics Card connectorStorage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s portsUSB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x AURA RGB header1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin)1 x Start button1 x ReTry button1 x 10-1 pin System Panel header1 x Thermal Sensor header Special Features Extreme OC Kit- FlexKey button- ReTry button- Start buttonExtreme Engine Digi+- 10K Black Metallic Capacitors- MicroFine Alloy Choke ASUS Q-Design - M.2 Q-Latch- PCIe Slot Q-Release- Q-Code- Q-Connector- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink backplate- M.2 heatsinks- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- Clear CMOS button- CPU Socket lever protector- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMMAURA Sync- AURA RGB header(s)- Addressable Gen 2 header(s)Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support- Support: up to 60W charging*- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A- Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS* To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27WASUS HYDRANODE- 3 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P,CHA_FAN3P)* Visit ASUS Website for the latest compatibility list. Software Features ROG Exclusive Software- ROG CPU-Z- GameFirst VI- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion- Sonic Radar III- DTS® Sound Unbound - BullGuard Internet Security (1-year full version)ASUS Exclusive SoftwareArmoury Crate- AIDA64 Extreme (1 year full version)- AURA Creator- AURA Sync- Fan Xpert 4 - Two-Way AI Noise CancelationAI Suite 3- 5-Way Optimization with AI Overclocking TPU EPU DIGI+ Power Control Turbo appMyAsusWinRARUEFI BIOSAI Overclocking GuideASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ ModeMemTest86 BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables1 x ARGB RGB extension cable1 x RGB extension cable4 x SATA 6Gb/s cables ROG Hyper M.2 Card1 x ROG Hyper M.2 Card with heatsink2 x M.2 screw packages for ROG Hyper M.2 CardMiscellaneous1 x ASUS Wi-Fi moving antennas 1 x M.2 Q-Latch package2 x M.2 Q-Latch packages for M.2 backplate1 x M.2 Rubber Package1 x Q-connector1 x ROG Graphics card holder1 x ROG stickers1 x ROG key chain1 x ROG thank you cardInstallation Media1 x USB drive with utilities and drivers Documentation1 x User Guide Operating System Operating System Windows® 11 64-bit, Windows® 10 64-bit Form Factor ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Typ produktu: płyta główna
EAN: 4711081455493
Kod producenta: 90MB18E0-M0EAY0
Gniazdo: 1700
Maksymalna obsługiwana liczba procesorów: 1
System operacyjny: gotowy na Windows 10
Procesor: Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core i7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxF (Alder Lake), Core i9 12xxx (Alder Lake), Core i9 12xxxK (Alder Lake), Core i9 12xxxKF (Alder Lake), Core i9 12xxxT (Alder Lake), Core i9 12xxxF (Alder Lake), Core i9 12xxxKS ( Jezioro Olchowe), Core i9 13xxxK (Jezioro Raptor), Pentium Gold Gxxxx (Jezioro Olchowe), Celeron Gxxxx (Jezioro Olchowe)
Chipset: Intel® Z690
Gniazda: 3x (w tym: 1x PCIe x16, 1x PCIe x8, 1x PCIe x4)
BIOS: 256Mbit UEFI AMI BIOS
: TAk
: TAk
Współczynnik kształtu: ATX
Użyj: komputer osobisty
Zasilanie: ATX12V (24-pin + 2x 8-pin + 6-pin)
Pamięć: 128 GB
: 4x DDR5
: DDR5-6400+(Praca)/6200(Praca)/ 6000(Praca)/ 5800(Praca)/5600(Praca)/ 5400(Praca)/5200(Praca)/ 5000(Praca)/4800MHz
: 2
: 8.
: TAk
: 8192 Mbit
Połączenia (zewnętrzne): 1
: 6
: Oznaczenie USB 3.2 Gen 1 odpowiada wcześniejszym oznaczeniom USB 3.1 Gen 1 lub USB 3.0.
Oznaczenie USB 3.2 Gen 2 odpowiada wcześniejszym oznaczeniom USB 3.1 Gen 2 lub USB 3.1.
: 2
: 2 x wersja 4
: 1
: 1
: 1
: 3
: 1
: 1
: TAk
: TAk
Połączenia (wewnętrzne): 6
: 3
: 42 - 110mm
: 7
: 4
Kontroler SATA: Intel® Z690
bezpośrednio używane poziomy RAID: 0, 1, 10, 5
Kontroler USB: Intel® Z690
Wbudowana grafika: Połączenia graficzne na płycie głównej mogą być używane tylko w przypadku korzystania z procesora ze zintegrowanym układem graficznym.
Dźwięk: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
Sieć LAN: Intel® I225-V 2,5 Gb Ethernet
: Intel® Wi-Fi 6E + Bluetooth 5.2
Cechy: Dwa dodatkowe gniazda M.2 są dostępne za pośrednictwem karty ROG Hyper M.2. Połączenie modułów M.2 zależy od używanego gniazda PCIe.
Informacje dodatkowe: W celu obsługi najnowszych rdzeni procesora może być wymagana aktualizacja systemu BIOS. Wi-Fi 6E i Bluetooth 5.2 są obsługiwane od systemu Windows 10 w wersji 21H1.
Akcesoria: 1x rozszerzenie ARGB, 1x rozszerzenie RGB, 4x kable SATA, 1x karta ROG Hyper M.2, 1x antena ASUS WiFi, 1x M.2 Q-Latch, 1x M.2 Q-Latch akcesoria backplate, 1x Q-Connector, 1x uchwyt na kartę graficzną ROG, 1x instrukcja obsługi, 1x pamięć USB z oprogramowaniem i sterownikami
Wymiary: szerokość: 244mm x wysokość: 305mm

ASUS ROG MAXIMUS Z690 HERO. Producent procesora: Intel, Gniazdo procesora: LGA 1700, Procesor: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Obsługiwane rodzaje pamięci: DDR5-SDRAM, Maksymalna pojemność pamięci: 128 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2,SATA, Obsługiwane rodzaje dysków: HDD & SSD. Rodzaj interfejsu sieci Ethernet: 2.5 Gigabit Ethernet, Podstawowy standard Wi-Fi: Wi-Fi 6E (802.11ax), Standardy Wi- Fi: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6E (802.11ax). Przeznaczenie: PC, Rodzaj płyty: ATX, Rodzina płyt z chipsetami: Intel
