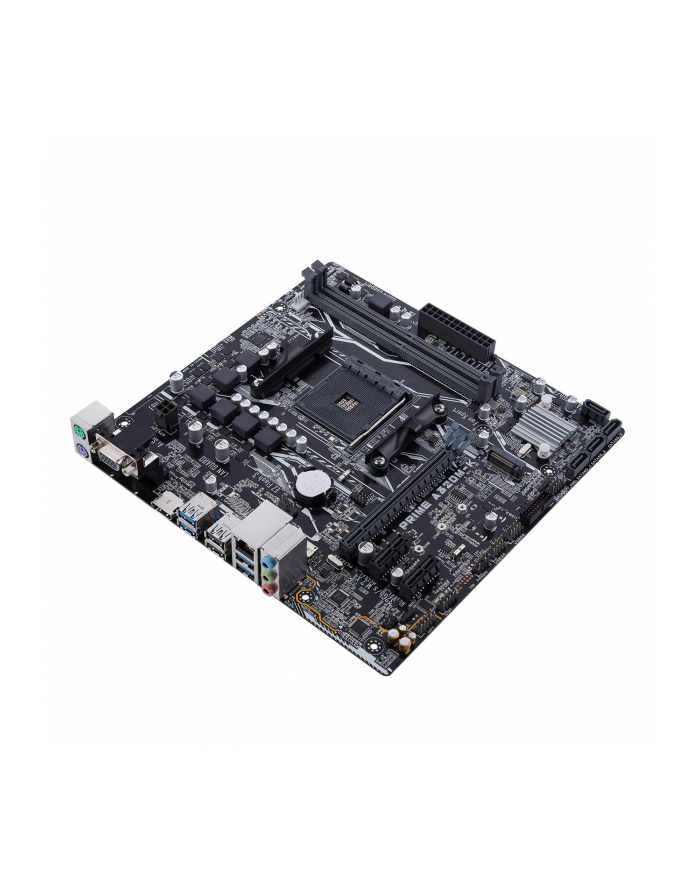

ASUS PRIME A320M-K/CSM - AM4

PRIME A320M-K/CSM AMD AM4 uATX motherboard with LED lighting, DDR4 3200MHz, 32Gb/s M.2, HDMI, SATA 6Gb/s, USB 3.0 5X Protection III: Multiple hardware safeguards for all-round protection LED illumination: Lighting control for audio trace paths Native M.2: Lightning-fast storage speeds One-stop controls: Media-acclaimed UEFI BIOS with EZ Flash 3 CSM/software pro remote management + pick up & return servis TECHNICAL SPECIFICATIONS CPU AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4 Processors Supports CPU up to 8 cores* Refer to www.asus.com for CPU support list Chipset AMD A320 Memory AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors2 x DIMM, Max. 32GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory AMD 7th Generation A-Series/Athlon X4 Processors2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU.* Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Generation A-Series APU Multi-VGA output support : HDMI/RGB ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz- Supports RGB with max. resolution 1920 x 1200 @ 60 HzMaximum shared memory of 2048 MB (for iGPU exclusively) Expansion Slots AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors1 x PCIe 3.0/2.0 x16 (x8 mode) AMD Athlon™ with Radeon™ Vega Graphics Processors1 x PCIe 3.0/2.0 x16 (x4 mode) AMD A320 chipset2 x PCIe 2.0 x1 Storage AMD A320 chipset: 4 x SATA 6Gb/s port(s), graySupport Raid 0, 1, 10AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)AMD 7th Generation A-Series/ Athlon™ X4 Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)AMD Athlon™ with Radeon™ Vega Graphics Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) LAN Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) Audio Realtek® ALC887 8-Channel High Definition Audio CODEC USB Ports AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/ 7th Generation A-Series/ Athlon™ X4 Processors: 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)AMD A320 chipset: 2 x USB 3.0 port(s) (2 at mid-board)AMD A320 chipset: 6 x USB 2.0 port(s) (2 at back panel, 4 at mid-board) Special Features ASUS 5X Protection III:- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!- ASUS Overvoltage Protection: World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!- ASUS DIGI+ VRM: 6 Phase digital power designASUS Exclusive Features:- AI Suite 3- Ai Charger ASUS Quiet Thermal Solution:- Stylish Fanless Design Heat-sink solution- ASUS Fan Xpert ASUS EZ DIY:- ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode- Multi-language BIOSASUS Q-Design:- ASUS Q-Slot- ASUS Q-DIMM Back I/O Ports 1 x PS/2 keyboard (purple)1 x PS/2 mouse (green)1 x D-Sub1 x HDMI1 x LAN (RJ45) port(s)4 x USB 3.1 Gen 1 (blue) 2 x USB 2.0 3 x Audio jack(s) Internal I/O Ports 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x COM port(s) connector(s)4 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) (1 x 4 -pin)1 x Chassis Fan connector(s) (1 x 4 -pin)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x System panel(s) 1 x Clear CMOS jumper(s)1 x Speaker connector Accessories User's manualI/O Shield2 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x Supporting DVD BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control Operating System Support Windows® 10 Operating System Windows® 10 64-bitWindows® 7 64-bit *1 Form Factor mATX Form Factor 8.9 inch x 8.7 inch (22.6 x 22.1 cm) Note *1 Windows 7 64-bit is only supported when using AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation / 7th Generation A-series/ Athlon X4 Processors.

ASUS PRIME A320M-K / CSM bazuje na chipsecie AMD A320 i obsługuje procesory AMD dla gniazda AM4. Posiada dwa gniazda DDR4 do 32 GB pamięci RAM. Inne funkcje ASUS PRIME A320M-K / CSM obejmują zależne od procesora rozwiązanie graficzne, gniazdo PCIe 3.0 x16 i dwa gniazda PCIe 2.0 x1. Ponadto ASUS PRIME A320M-K / CSM posiada 8-kanałowy dźwięk, interfejs Gigabit LAN, a także sześć portów SATA3, jeden M.2, USB 3.1 Type-C i USB 3.0.
Dane techniczne:
Kod EAN 4172017221863
Maksymalnie obsługiwane procesory: 1
Obsługiwane procesory: modele Procesory AMD® z serii RYZEN, Seria A / Athlon ™ Procesory 7 generacji do Socket AM4
Chipset: AMD A320
Gniazda: PCIe x16 1, PCIe x1 2
BIOS 128 Mbps AMI UEFI
EFI BIOS: Tak
Zastosowanie: PC
Zasilanie EPS12V 2.9x (24-pinowe + 8-pinowe + 6-pinowe + 4-pinowe)
Maksymalna pojemność pamięci: 32 GB
Liczba gniazd: 2x DDR4
Obsługiwana pamięć typu: SDRAM-DDR4
Obsługiwane standardy DDR4 3200 (O.C) / 2933 (O.C) / 2666/2400/2133 MHz
Maksymalne jednostki pamięci 4
ECC jest obsługiwany: Tak
Kontroler pamięci w CPU: Tak
Maksymalna gęstość danych 8192 Mbit
Kontroler SATA AMD A320
Dźwięk Realtek ALC887
LAN Realtek RTL8111H Gigabit LAN
Kompatybilny z systemem Windows 10
Wymiary: 221 mm x: 226 mm


ASUS PRIME A320M-K/CSM. Producent procesora: AMD, Gniazdo procesora: Socket AM4, Procesor: AMD A, AMD Athlon, AMD Athlon™ X4, AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 3, 3rd Generation.... Obsługiwane rodzaje pamięci: DDR4-SDRAM, Typ slotów pamięci: DIMM, Obsługa kanałów pamięci: Dwukanałowy. Wspierane interfejsy dysków twardych: M.2, SATA III, Obsługiwane rodzaje dysków: HDD, Poziomy raid: 0, 1, 10. Rodzaj interfejsu sieci Ethernet: Gigabit Ethernet, Kontroler LAN: Realtek RTL8111H. Przeznaczenie: PC, Rodzaj płyty: micro ATX, Rodzina płyt z chipsetami: AMD
