ASUS ROG STRIX Z690-I GAMING WIFI LGA 1700

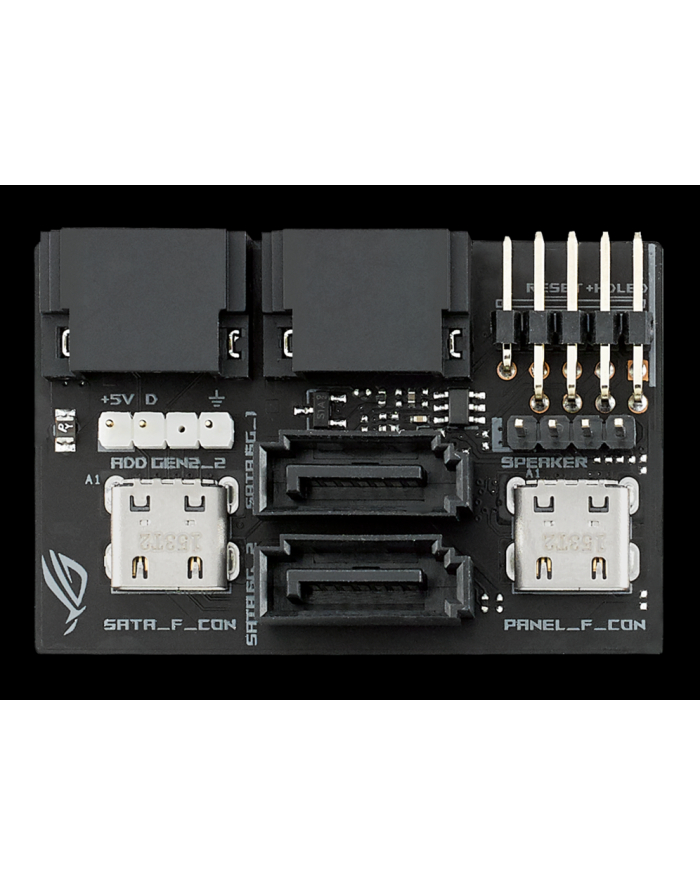

ROG STRIX Z690-I GAMING WIFI Intel® Z690 LGA 1700 ITX motherboard with PCIe® 5.0, 10+1 power stages, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E (802.11ax), Intel® 2.5 Gb Ethernet, two M.2 slots with heatsinks and backplates, two Thunderbolt™ 4 USB Type-C®, SATA and Aura Sync RGB lighting Intel®LGA 1700 socket: Ready for 12th Gen Intel Core™, Pentium® Gold and Celeron® Processors Optimal Power Solution: 10+1 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped heatpipe, two onboard M.2 heatsinks and backplates High-performance Networking: On-board Intel® WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard Best Gaming Connectivity: Supports HDMI® 2.1, two M.2 slots, 2 x ThunderboltTM 4 as well as 1 x USB 3.2 Gen 2x2 Type-C® Intelligent Control:? ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation to simplify setup and improve performance DIY Friendly Design: Bundled ROG Front Panel SATA Card, M.2 Q-Latch, Pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including a RGB header and two addressable Gen 2 headers Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86 CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Chipset Z690 Graphics 1 x HDMI 2.1 Expansion Slots Intel® 12th Gen Processors*1 x PCIe 5.0 x16 slot(s)**** Please check PCIe bifurcation table in support site. Storage Supports 2 x M.2 slots and 4 x SATA 6Gb/s portsTotal supports 2 x M.2 slots and 4 x SATA6Gb/s ports*Intel® 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280- Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® Z690 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)4 x SATA 6Gb/s ports**** Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.*** Install ROG Strix Front panel SATA card to support 4 x SATA 6Gb/s ports Ethernet 1 x Intel® 2.5Gb Ethernet Wireless & Bluetooth Intel® Wi-Fi 6EWi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band*Bluetooth v5.2* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. USB Rear USB (Total 9 ports)2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) 2 x USB 3.2 Gen 2 port(s) (2 x Type-A)3 x USB 3.2 Gen 1 port(s) (3 x Type-A)2 x USB 2.0 port(s) (2 x Type-A) Front USB (Total 5 ports)1 x USB 3.2 Gen 2x2 connector(s) (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input- Supports up to 32-Bit/384 kHz playbackAudio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - LED-illuminated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 2 x Thunderbolt™ 4 USB Type-C® port(s)2 x USB 3.2 Gen 2 port(s) (2 x Type-A)3 x USB 3.2 Gen 1 port(s) (3 x Type-A)2 x USB 2.0 port(s) (2 x Type-A) 1 x HDMI® port1 x Wi-Fi Module1 x Intel® 2.5Gb Ethernet portLED-illuminated audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™ button 1 x Clear CMOS button Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header(s)1 x 4-pin AIO Pump header(s)1 x 4-pin Chassis Fan header(s)Power related 1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s portsUSB 1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C®)1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 portsMiscellaneous1 x Addressable Gen 2 header(s)1 x AURA RGB header(s)1 x 2 pin POWER_BTN header2 x USB Type-C® connectors to Install ROG Strix Front panel SATA card** Install ROG Strix Front panel SATA card to support 4 x SATA 6Gb/s ports, 1 x Addressable Gen 2 header, 1 x Front Panel header and 1 x Speaker header. Special Features Extreme Engine Digi+- 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink backplate- M.2 heatsink ASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Clear CMOS button- CPU Socket lever protector- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMMAURA Sync- AURA RGB header(s)- Addressable Gen 2 header(s) Software Features ROG Exclusive Software- GameFirst VI- ROG CPU-Z- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion- Sonic Radar III- DTS® Sound Unbound - Anti-virus softwareASUS Exclusive SoftwareArmoury Crate- AIDA64 Extreme (60 days free trial) - AURA Creator- AURA Sync- Fan Xpert 4 - Two-Way AI Noise CancelationAI Suite 3- Easy Optimization with AI Overclocking TPU EPU DIGI+ VRM Turbo appMyAsusWinRARUEFI BIOSAI Overclocking GuideASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ ModeFlexKeyMemTest86 BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables1 x ROG USB2.0 splitter cable1 x Panel Cable2 x SATA 6Gb/s cables Miscellaneous1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack1 x M.2 Q-Latch package(s)1 x ROG key chain1 x ROG logo plate stickers1 x ROG Strix stickers 1 x ROG Strix thank you cardInstallation Media1 x Support DVDDocumentation1 x User guide Operating System Windows® 11 64-bit, Windows® 10 64-bit Form Factor Mini ITX17cm x 17cm

Typ produktu: płyta główna
EAN: 4711081460961
Kod producenta: 90MB1910-M0EAY0
Gniazdo: 1700
Maksymalna obsługiwana liczba procesorów: 1
System operacyjny: gotowy na Windows 10, gotowy na Windows 11
Procesor: Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core i7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxF (Alder Lake), Core i9 12xxx (Alder Lake), Core i9 12xxxK (Alder Lake), Core i9 12xxxKF (Alder Lake), Core i9 12xxxT (Alder Lake), Core i9 12xxxKS (Alder Lake), Core i9 13xxxK ( Jezioro Raptor), Pentium Gold Gxxxx (Jezioro Olchowe), Celeron Gxxxx (Jezioro Olchowe)
Chipset: Intel® Z690
Gniazda: 1x (w tym: 1x PCIe x16)
BIOS: 256 MB pamięci Flash ROM, UEFI AMI BIOS
Współczynnik kształtu: Mini-ITX
Użyj: komputer osobisty
Zasilanie: ATX12V (24-pin + 8-pin)
Pamięć: 64 GB
: 2x DDR5
: DDR5-6400 (OC)+ / 4800 MHz
: 2
: TAk
Połączenia (zewnętrzne): 2
: 3
: Oznaczenie USB 3.2 Gen 1 odpowiada wcześniejszym oznaczeniom USB 3.1 Gen 1 lub USB 3.0.
Oznaczenie USB 3.2 Gen 2 odpowiada wcześniejszym oznaczeniom USB 3.1 Gen 2 lub USB 3.1.
: 2
: 2 x wersja 4
: 1
: 1
: 1
: TAk
: TAk
Połączenia (wewnętrzne): 4
: 2
: M
: SATA, PCIe
: 42-80mm
: 1
: 1
: 3
Połączenia (opcjonalnie): 2
: 1
: 2
: TAk
Kontroler SATA: Intel Z690
bezpośrednio używane poziomy RAID: 0, 1, 10, 5
Kontroler USB: Intel Z690
Wbudowana grafika: Połączenia graficzne na płycie głównej mogą być używane tylko w przypadku korzystania z procesora ze zintegrowanym układem graficznym.
Dźwięk: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Sieć LAN: Intel® 2,5 Gb Ethernet
: Intel® Wi-Fi 6E
Informacje dodatkowe: W celu obsługi najnowszych rdzeni procesora może być wymagana aktualizacja systemu BIOS. Bluetooth 5.2 jest obsługiwany od systemu Windows 10 w wersji 21H1.
Wymiary: szerokość: 170mm x wysokość: 170mm

ASUS ROG-STRIX-Z690-I-GAMING-WIFI. Producent procesora: Intel, Gniazdo procesora: LGA 1700, Procesor: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Obsługiwane rodzaje pamięci: DDR5-SDRAM, Maksymalna pojemność pamięci: 64 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2,SATA, Obsługiwane rodzaje dysków: HDD & SSD. Rodzaj interfejsu sieci Ethernet: 2.5 Gigabit Ethernet, Podstawowy standard Wi-Fi: Wi-Fi 6E (802.11ax), Standardy Wi- Fi: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6E (802.11ax). Przeznaczenie: PC, Rodzaj płyty: mini ITX, Rodzina płyt z chipsetami: Intel
