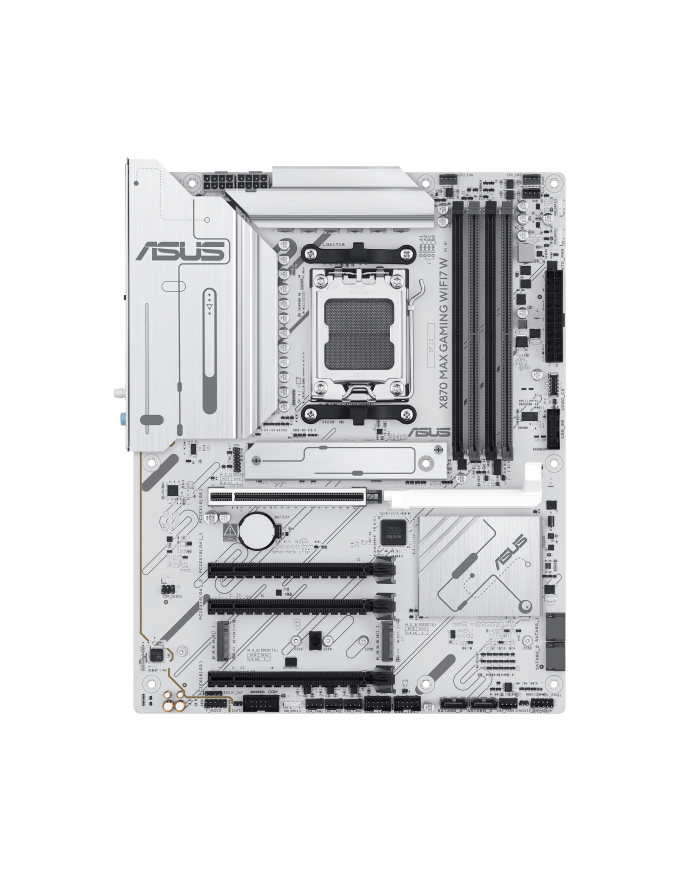

Płyta główna ASUS X870 MAX GAMING WIFI7 White

Format:ATX; Chipset:AMD X870; Socket:Socket AM5 (LGA 1718); Motherboard memory module type:DDR5; RAID support:0, 1, 5, 10; PCI express 16x:4; COM portASUS X870 MAX GAMING WIFI7 WASUS X870 series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the X870 MAX GAMING WIFI7 W motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.CPUAMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors** Refer to https://www.asus.com/support/download-center/ for CPU support list.ChipsetAMD X870 ChipsetMemory4 x DIMM slots, max. 256GB, DDR5Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series ProcessorsECC and Non-ECC, Un-buffered DIMM*Dual channel memory architectureSupports AMD Extended Profiles for Overclocking (EXPO™)ASUS Enhanced Memory Profile (AEMP)* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.Graphics1 x HDMI™ port**2 x USB4 (40Gbps) ports support USB Type-C display outputs**** Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.** Supports 4K@60Hz as specified in HDMI 2.1.  *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.*** VGA resolution support depends on processorsqqq1 or graphic cardsqqq1 resolution.Expansion SlotsAMD Ryzen™ 9000 & 7000 Series Desktop Processors*1 x PCIe 5.0 x16 slot (supports x16 mode)AMD Ryzen™ 8000 Series Desktop Processors1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**AMD X870 Chipset2 x PCIe 4.0 x16 slots (support x1 mode)1 x PCIe 3.0 x16 slot (supports x1 mode)**** Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).** Specifications vary by CPU types.*** PCIEX16(G3) slot shares bandwidth with SATA6G_3 and SATA6G_4 ports. Both SATA ports will be disabled when PCIEX16(G3) slot is running. You can enter the BIOS to adjust the default Settings as required.- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.StorageTotal supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*AMD Ryzen™ 9000 & 7000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)AMD Ryzen™ 8000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**AMD X870 ChipsetM.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* 2 x USB4 (40Gbps) ports share bandwidth with M.2_2 slot. The M.2_2 slot will be disabled when either of the two USB4 (40Gbps) ports is running. You can enter the BIOS to adjust the default Settings as required.* The PCIEX16(G3) slot shares bandwidth with the SATA6G_3 and SATA6G_4 ports. Both SATA ports will be disabled when the PCIEX16(G3) slot is running. You can enter the BIOS to adjust the default Settings as required.** Specifications vary by CPU types.RAID SupportAMD RAIDXpert2 Technology*Ryzen™ 9000 Series Processors: RAID 0/1/5/10Ryzen™ 8000 Series Processors: RAID 0/1Ryzen™ 7000 Series Processors: RAID 0/1/10* Specifications vary by CPU types.Ethernet1 x Realtek 2.5Gb EthernetASUS LANGuardWireless & BluetoothWi-Fi 7*2x2 Wi-Fi 7 (802.11be)Supports 2.4/5/6GHz frequency band**Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.Bluetooth v5.4**** Wi-Fi features may vary depending on the operating system.For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.For Windows 10, only Wi-Fi 6 is supported.** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturerqqq1s website for the latest specifications.USBRear USB (Total 10 ports)2 x USB4 (40Gbps) ports (2 x USB Type-C)1 x USB 10Gbps port (1 x Type-A)3 x USB 5Gbps ports (3 x Type-A)4 x USB 2.0 ports (4 x Type-A)Front USB (Total 7 ports)1 x USB 20Gbps connector (supports USB Type-C)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports* USB Type-C power delivery output: max. 5V/3AAudioRealtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.Back Panel I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)1 x USB 10Gbps port (1 x Type-A)3 x USB 5Gbps ports (3 x Type-A)4 x USB 2.0 ports (4 x Type-A)1 x HDMI™ port1 x Wi-Fi module1 x Realtek 2.5Gb Ethernet port3 x Audio jacks1 x BIOS FlashBack™ buttonInternal I/O ConnectorsFan and Cooling Related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header4 x 4-pin Chassis Fan headersPower Related1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connectorsStorage Related3 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 20Gbps connector (supports USB Type-C)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable RGB Gen 2 headers1 x Clear CMOS header1 x Chassis Intrusion header1 x COM Port header1 x Front Panel Audio header (F_AUDIO)1 x S/PDIF Out header1 x SPI TPM header (14-1 pin)1 x 10-1 pin System Panel headerSpecial FeaturesASUS 5X PROTECTION III- DIGI+ VRM (- Digital power design with DrMOS)- LANGuard- Overvoltage protection- SafeSlot- Stainless-steel back I/OASUS Q-Design- PCIe Slot Q-Release- Q-Antenna- Q-Dashboard- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- Flexible M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- ProCool- Pre-mounted I/O shield- SafeSlotAura Sync- Addressable RGB Gen 2 headersSoftware FeaturesASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- Fan Xpert 4 with AI Cooling IIASUS AI AdvisorASUS DriverHubASUS GlideXTurboV CoreASUS CPU-ZNorton 360 Deluxe (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode- ASUS MyHotkeyBIOS256 Mb Flash ROM, UEFI AMI BIOSManageabilityWOL by PME, PXEAccessoriesCables2 x SATA 6Gb/s cablesMiscellaneous1 x ASUS WiFi Q-Antenna1 x M.2 rubber package1 x Screw package for M.2 SSDDocumentation1 x Quick start guideOperating SystemWindows 11Form FactorATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

ASUS X870 MAX GAMING WIFI7 W. Producent procesora: AMD, Gniazdo procesora: Gniazdo AM5, Procesor: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Obsługiwane rodzaje pamięci: DDR5-SDRAM, Maksymalna pojemność pamięci: 256 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: PCI Express 4.0, PCI Express 5.0, SATA III, Obsługiwane rodzaje dysków: HDD & SSD, Poziomy raid: 0, 1, 5, 10. Maks. rozdzielczość: 3840 x 2160 px. Obsługiwany typ USB: USB Typu-A, USB Type-C
