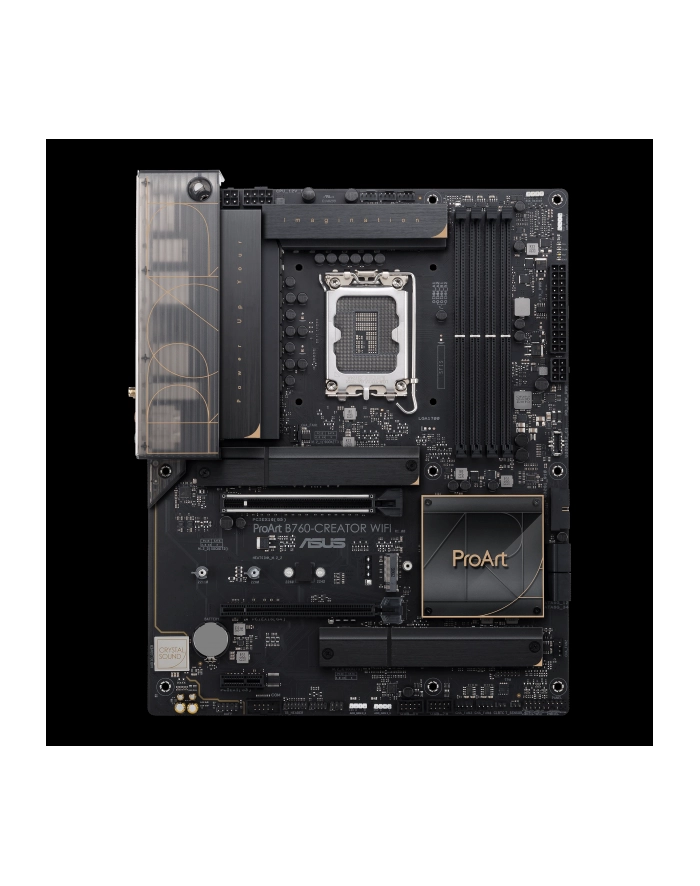

ASUS PROART B760-CREATOR WIFI LGA1700 B760 PCIE5.0 USB32GEN2X2 MB

Format:ATX; Chipset:Intel B760; Socket:Socket 1700; Motherboard memory module type:DDR5; PCI express 16x:2; COM portASUS ProArt B760-CREATOR WIFIProArt B760-Creator WiFi is an enhanced motherboard designed for content creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of 14th & 13th & 12th Gen Intel Core™ processors through robust power delivery and cooling design, and its comprehensive connectivity includes three M.2 slots, WiFi 6, 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C front-panel connector with 60W Quick Charge 4+ and a Thunderbolt™ 4 header.Supports 14th Gen Intel Core™ ProcessorsCPUIntel Socket LGA1700 for 14th Gen Intel Core™ & 13th Gen Intel Core™ & 12th Gen Intel Core™, Pentium Gold and Celeron ProcessorsSupports Intel 10 nm CPUSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list.** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.ChipsetIntel B760 ChipsetMemory4 x DIMM slots, Max. 192GB, DDR5 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel Extreme Memory Profile (XMP)OptiMem II* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/Graphics1 x HDMI port**1 x DisplayPort port**** Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.** Support 4K@60Hz as specified in HDMI 2.1.*** Support max. 8K@60Hz as specified in DisplayPort 1.4.Expansion SlotsIntel 14th & 13th & 12th Gen Processors1 x PCIe 5.0/4.0/3.0 x16 slotIntel B760 Chipset*1 x PCIe 4.0 x16 slot (supports x4 mode)1 x PCIe 3.0 x1 slot**** PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled.StorageTotal supports 3 x M.2 slots and 4x SATA 6Gb/s ports*Intel 14th & 13th & 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280/22110- Intel 13th & 12th Gen processors support PCIe 4.0 x4 mode.Intel B760 ChipsetM.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)**M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.** M.2_2 slot shares bandwidth with PCIe X1 and WiFi module and will run at PCIe 3.0 x2 by default. You need to set M.2_2 running at PCIe 3.0 x4 by manually enabled in BIOS.Ethernet1 x Realtek 2.5Gb Ethernet1 x Intel 1Gb EthernetASUS LANGuardWireless & BluetoothWi-Fi 62x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)Supports 2.4/5GHz frequency bandBluetooth v5.2**The Bluetooth version may vary, please refer to the Wi-Fi module manufacturerqqq1s website for the latest specificationsUSBRear USB (Total 9 ports)1 x USB 3.2 Gen 2 (10G) Type-C port4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)4 x USB 2.0 ports (4 x Type-A)Front USB (Total 7 ports)1 x USB 3.2 Gen 2x2 (20G) connector (supports USB Type-C with 60W PD/QC4+)1 x USB 3.2 Gen 1 (5G) header supports additional 2 x USB 3.2 Gen1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsAudioRealtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Premium audio capacitors- Dedicated audio PCB layers- Audio cover- Unique de-pop circuitBack Panel I/O Ports1 x USB 3.2 Gen 2 port (1 x USB Type-C)4 x USB 3.2 Gen 1 ports (4 x Type-A)4 x USB 2.0 ports (4 x Type-A)1 x DisplayPort1 x HDMITM port1 x Wi-Fi Module1 x Realtek 2.5Gb Ethernet port1 x Intel 1Gb Ethernet port5 x Audio jacks1 x Optical S/PDIF out portInternal I/O ConnectorsFan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header4 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connector1 x 6-pin PD_12V Power connectorStorage related3 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 2x2 (20G) connector (supports USB Type-C with 60W PD/QC4+)1 x USB 3.2 Gen 1 (5G) header supports additional 2 x USB 3.2 Gen1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x AURA RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x SPI TPM header (14-1pin)1 x 20-5 pin System Panel header1 x Thermal Sensor header1 x Thunderbolt™ headerSpecial FeaturesASUS 5X PROTECTION III- DIGI+ VRM (- Digital power design with DrMOS)- Enhanced DRAM Overcurrent Protection- ESD Guards- LANGuard- Overvoltage Protection- SafeSlot- Stainless-Steel Back I/OASUS Q-Design- M.2 Q-Latch- Q-Connector- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- Flexible M.2 heatsink- VRM heatsink designASUS EZ DIY- ProCool- Pre-mounted I/O shieldAURA Sync- AURA RGB header- Addressable Gen 2 headersSoftware FeaturesASUS Exclusive SoftwareArmoury Crate- AURA Creator- AURA Sync- Fan Xpert 4- Power Saving- Two-Way AI Noise CancelationAI Suite 3- Performance And Power Saving Utility DIGI+ VRM Turbo appASUS CPU-ZIT Management software supported- ASUS Control Center Express(ACCE)ProArt Creator HubCreationFirstMyASUSNorton 360 Deluxe (60 Days Free Trial)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ ModeBIOS128 MbManageabilityWOL by PME, PXEAccessoriesCables2 x SATA 6Gb/s cablesMiscellaneous1 x ASUS Wi-Fi moving antennas2 x M.2 Rubber packages1 x ProArt ruler1 x Q-connectorDocumentation1 x ACC Express Activation Key Card1 x User guideOperating SystemWindows 11 64-bit, Windows 10 64-bitForm FactorATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
