HPE FlexNetwork 5140 24G 4SFP+ 1-slot HI SwitchHPE FlexNetwork 5140 24G 4SFP+ 1-slot HI SwitchHPE FlexNetwork 5140 24G 4SFP+ HI Switch (R9L61A)I/O ports and slots24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) with 8 combo ports (RJ45 or SFP)4 1/10G SFP+ ports, 1 port expansion module slot.Attention: SFP PLUS can also support 1G SFP and 1G SFP-GE-T (only works at GE)Additional ports and slots1 dual-personality (RJ-45 or mini-USB) serial console port1 RJ-45 out-of-band management port1 USB 2.0Power supplies2 power supply slots 1 minimum power supply requiredFan trayAirflow direction is from side to backPhysical characteristicsDimensions17.32(w) x 14.17(d) x 1.71(h) in.(44.00 x 36.00 x 4.36 cm)(1U height)Weightâ‰¤6.7 kgMemory and processor2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flashMounting and enclosureMounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)Performance1000 Mb Latency< 5 Âµs10 Gbps Latency< 3 ÂµsThroughput180 MppsRouting/Switching capacity288 GbpsRouting table size8KMAC address table size32KEnvironmentOperating temperature23°F to 113°F (-5°C to 45°C)Operating relative humidity5% to 95%, noncondensingNon-operating/Storage temperature-40°F to 158°F (-40°C to 70°C)Non-operating/Storage relative humidity5% to 95%, noncondensingAcousticlow speed fan: 53.0 dB, High speed fan:68.9 dB. ISO 7779Electrical characteristics Frequency50/60 HzMaximum heat dissipationranges from 81.89 BTU/hr to 324 BTU/hr depending on power supply configurationCurrent6AVoltage100-240 VAC, rated (90-264 VAC, max)-48 to -60 VDC,rated (-36 to -72 VDC, max) (depending on power supply chosen)Maximum power rating95 W (dual DC)Idle power29 W (dual AC)Notes:- Idle power is the actual power consumption of the device with no ports connected.- Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated SafetyUL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; FDA 21 CFR Subchapter J; RoHS Compliance; AS/NZS 60950-1; GB 4943; EAC (EurAsian Conformity Certification)EmissionsETSI EN300 386 V1.6.1 (2012-09); ETSI EN 300 386 V2.1.1 (2016-07); EN 55032:2015 CLASS A; CISPR 32:2015 CLASS A; AS/NZS CISPR 32:2015 CLASS A; EN 61000-3-2:2014; EN61000-3-3:2013; FCC PART15 Subpart B CLASS A; ICES-003 Issue 7 CLASS A; ANSI C63.4-2014; VCCI-CISPR 32:2016 CLASS AGenericIEC 61000-4-1:2006;IEC 61000-4-2:Ed2 2008;IEC 61000-4-3:2020;IEC 61000-4-3:2010;IEC 61000-4-4:2004;IEC 61000-4-4:2011;IEC 61000-4-4:Ed3.0 2012;IEC 61000-4-5:2014;IEC 61000-4-5:2017;IEC 61000-4-6:2013;IEC 61000-4-6:2013 COR1:2015;IEC 61000-4-8:2009;IEC 61000-4-11:2004;IEC 61000-4-11:2017;IEC 61000-4-11:2020ESDAir 8KV; Con 6KV; Criteria BImmunityETSI EN300 386 V1.6.1 (2012-09);ETSI EN 300 386 V2.1.1 (2016-07);EN 55035:2017; CISPR 35:2016;ManagementIMC-Intelligent Management Center; Smart MC, command-line interface; SNMP ManagerServicesRefer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

Parametry techniczne

Opis	Seria przełączników HPE FlexNetwork 5140 HI zapewnia wysoką dostępność i skalowalność w warstwie dostępowej średnich i dużych sieci kampusowych przedsiębiorstw. Przełączniki te zapewniają szybką łączność i elastyczność dzięki łączom nadrzędnym 10GbE i portom combo. Obsługa modułów dodatkowych zwiększa pojemność dzięki dodatkowym funkcjom. Jest to bardzo ekonomiczny przełącznik z licznymi funkcjami, takimi jak DRNI i IRF dla zwiększenia odporności, funkcje QoS dla większej niezawodności, iNQA dla wydajności sieci i wglądu w pojemność w czasie rzeczywistym.
Klasa przełącznika	Zarządzalny
Zastosowanie (switche)	Średnie i duże firmy (powyżej 16 portów)
Warstwa przełączania (switche)	L3, L2
Architektura sieci (switche)	GigabitEthernet
Liczba portów 10/100/1000 MBps	24
Liczba portów 10GB	4
Liczba portów COMBO	8
Liczba portów SFP+	4
Port konsoli	Tak
Przepustowość (switche Gbps)	288 Gb/s
Prędkość przekazywania (Mpps)	180 Mpps
Rozmiar tablicy adresów MAC	32000
Bufor pakietów	4 MB
Obsługa ramek Jumbo	Tak
Rozmiar ramki Jumbo	8 KB
Obsługiwane protokoły i standardy	IEEE 802.1ad Q-in-Q IEEE 802.1ak Multiple Registration Protocol (MRP) and Multiple VLAN Registration Protocol (MVRP) IEEE 802.1AE MACsec IEEE 802.1AX2008 Link Aggregation IEEE 802.1D MAC Bridges IEEE 802.1p Priority IEEE 802.1Q (GVRP) IEEE 802.1Q VLANs IEEE 802.1s Multiple Spanning Trees IEEE 802.1v VLAN classification by Protocol and Port IEEE 802.1w Rapid Reconfiguration of Spanning Tree IEEE 802.1X PAE IEEE 802.3 Type 10BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3ac (VLAN Tagging Extension) IEEE 802.3ad Link Aggregation (LAG) IEEE 802.3ad Link Aggregation Control Protocol (LACP) IEEE 802.3ae 10-Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az Energy Efficient Ethernet IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-X IEEE 802.3x Flow Control IEEE 802.3z 1000BASE-X RFC 768 UDP RFC 783 TFTP Protocol (revision 2) RFC 791 IP RFC 792 ICMP RFC 793 TCP RFC 826 ARP RFC 854 TELNET RFC 855 Telnet Option Specification RFC 894 IP over Ethernet RFC 925 Multi-LAN Address Resolution RFC 950 Internet Standard Subnetting Procedure RFC 951 BOOTP RFC 959 File Transfer Protocol (FTP) RFC 1027 Proxy ARP RFC 1042 IP Datagrams RFC 1058 RIPv1 RFC 1071 Computing the Internet Checksum RFC 1166 IP Addresses RFC 1122 Requirements for Internet HostsCommunication Layers RFC 1123 Requirements for Internet Hosts RFC 1141 Incremental updating of the Internet checksum RFC 1191 Path MTU discovery RFC 1213 Management Information Base for Network Management of TCP/IP-based internets RFC 1256 ICMP Router Discovery Protocol (IRDP) RFC 1305 NTPv3 RFC 1350 TFTP Protocol (revision 2) RFC 1519 CIDR RFC 1533 DHCP Options and BOOTP Vendor Extensions RFC 1542 BOOTP Extensions RFC 1591 DNS (client only) RFC 1643 Definitions of Managed Objects for the Ethernet-like Interface Types RFC 1723 RIP v2 RFC 1812 IPv4 Routing RFC 1866 Hypertext Markup Language2.0 RFC 1887 An Architecture for IPv6 Unicast Address Allocation RFC 1901 Introduction to Community-based SNMPv2 RFC 1902-1907 SNMPv2 RFC 2131 DHCP RFC 2236 IGMP Snooping RFC 2375 IPv6 Multicast Address Assignments RFC 2462 IPv6 Stateless Address Autoconfiguration RFC 2474 Definition of the Differentiated Services Field (DS Field) in the IPv4 and IPv6 Headers RFC 2475 Architecture for Differentiated Services RFC 2597 Assured Forwarding PHB Group RFC 2616 Hypertext Transfer ProtocolHTTP/1.1 RFC 2644 Directed Broadcast Control RFC 2665 Definitions of Managed Objects for the Ethernet-like Interface Types RFC 2668 Definitions of Managed Objects for IEEE 802.3 Medium Attachment Units (MAUs) RFC 2711 IPv6 Router Alert Option RFC 2865 Remote Authentication Dial In User Service (RADIUS) RFC 2866 RADIUS Accounting RFC 2868 RADIUS Attributes for Tunnel Protocol Support RFC 3046 DHCP Relay Agent Information Option RFC 3246 Expedited Forwarding PHB RFC 3410 Applicability Statements for SNMP RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3) RFC 3415 View-based Access Control Model (VACM) for the Simple Network Management Protocol (SNMP) RFC 3416 Protocol Operations for SNMP RFC 3417 Transport Mappings for the Simple Network Management Protocol (SNMP) RFC 3418 Management Information Base (MIB) for the Simple Network Management RFC 3484 Default Address Selection for Internet Protocol version 6 (IPv6) RFC 3493 Basic Socket Interface Extensions for IPv6 RFC 3542 Advanced Sockets Application Program Interface (API) for IPv6 RFC 3576 Ext to RADIUS (CoA only) RFC 3580 IEEE 802.1X Remote Authentication Dial In User Service (RADIUS) Usage Guidelines RFC 3587 IPv6 Global Unicast Address Format RFC 3596 DNS Extensions to Support IP Version 6 RFC 3704 Unicast Reverse Path Forwarding (URPF) RFC 4113 Management Information Base for the User Datagram Protocol (UDP) RFC 4213 Basic IPv6 Transition Mechanisms RFC 4250 The Secure Shell (SSH) Protocol Assigned Numbers RFC 4251 The Secure Shell (SSH) Protocol Architecture RFC 4252 The Secure Shell (SSH) Authentication Protocol RFC 4253 The Secure Shell (SSH) Transport Layer Protocol RFC 4254 The Secure Shell (SSH) Connection Protocol RFC 4291 IP Version 6 Addressing Architecture RFC 4443 Internet Control Message Protocol (ICMPv6) for the Internet Protocol Version 6 (IPv6) Specification RFC 4541 Considerations for Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD) Snooping Switches RFC 4594 Configuration Guidelines for DiffServ Service Classes RFC 4675 RADIUS VLAN & Priority RFC 5095 Deprecation of Type 0 Routing Headers in IPv6
QoS	RFC 2474 DS Field in the IPv4 and IPv6 Headers RFC 3260 New Terminology and Clarifications for DiffServ
Bezpieczeństwo	UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 608252 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; FDA 21 CFR Subchapter J; RoHS Compliance; AS/NZS 60950-1; GB 4943; EAC (EurAsian Conformity Certification)
Zarządzanie, monitorowanie, konfiguracja	IEEE 802.1AB Link Layer Discovery Protocol (LLDP) RFC 1215 Convention for Defining Traps for use with the SNMP RFC 2579 Textual Conventions for SMIv2 RFC 2580 Conformance Statements for SMIv2 RFC 2818 HTTP over TLS RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events) RFC 6398 IP Router Alert Considerations and Usage ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED) SNMPv1/v2c/v3
Typ obudowy	Rack (Switche/UPS)
Wentylator (switche)	Tak
Zasilacz (switche)	Wewnętrzny
Pobór mocy	95 W
Zasilanie	100240 VAC, znamionowe (90264 VAC, maks.) -48 do -60 VDC, znamionowe (od -36 do -72 VDC, maks.) (w zależności od wybranego zasilacza)
Wymiary	440.0 x 360.0 x 43.6 mm
Waga	6.7 kg

Zobacz też

Kategorie

Pomoc i kontakt

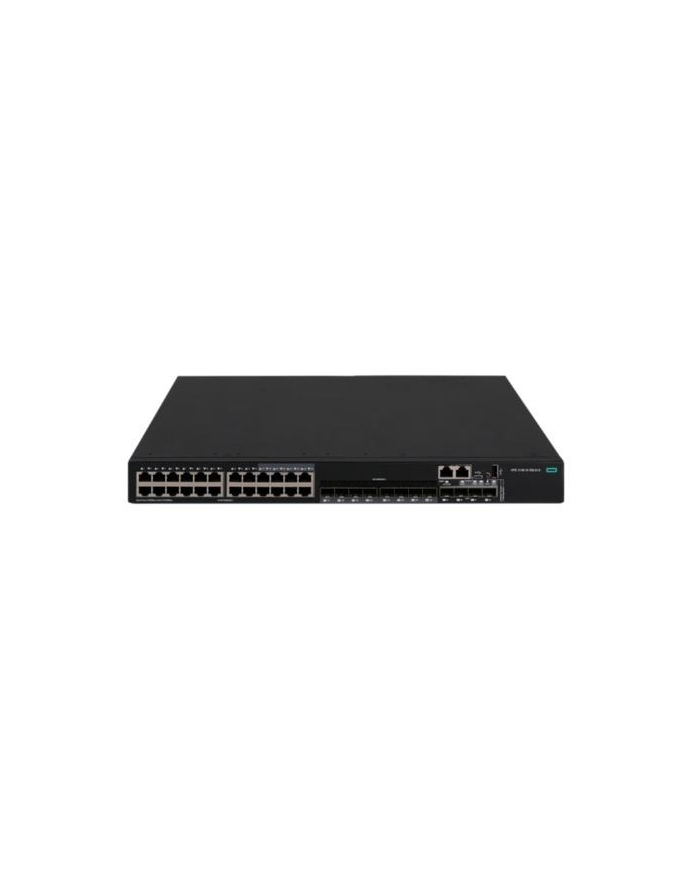

hewlett packard enterprise Przełącznik 5140-24G-4SFP+ 1-slot HI R9L61A
