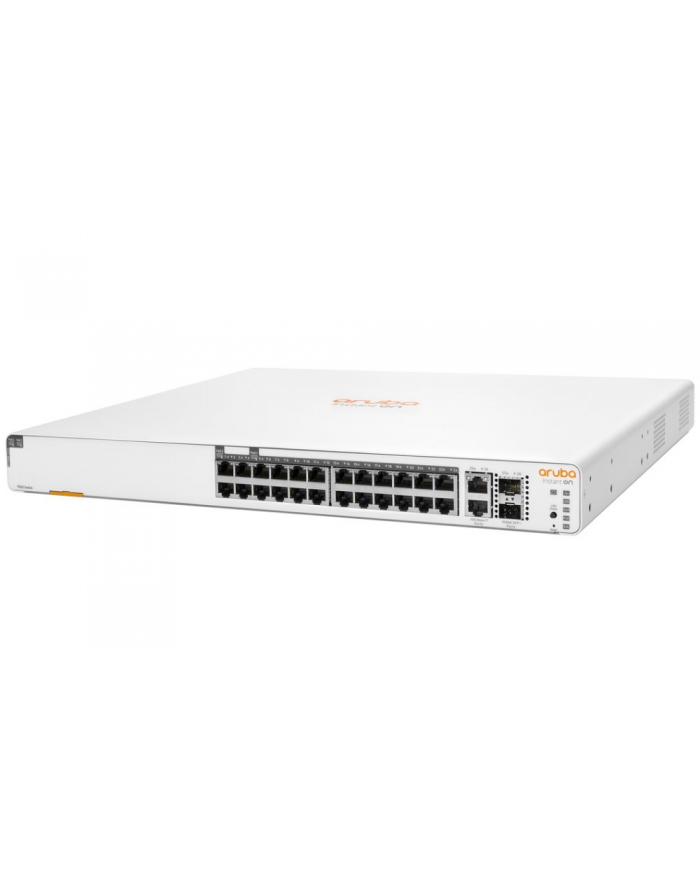

hewlett packard enterprise HPE Aruba IOn 1960 24G 2XT 2XF 370W Switch Europe - English

Aruba Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Switch I/O ports and slots 24 RJ-45 autosensing 10/100/1000 Mbps ports including 4 CL4 and 20 CL6 PoE ports IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at Class 4, IEEE 802.3bt Class 6); Duplex: 10BASE-T/100BASE TX: half or full; 1000BASE-T: full only 2 SFP+ 10GbE ports 2 10GBASE-T ports Dimensions 350.5(d) x 442.5(w) x 43.95(h) mm Weight 10.4 lb (4.7 kg) CPU Single-Core ARM v7 Cortex-A9 @800MHz 100 Mb Latency < 4.4 uSec 1000 Mb Latency < 2.2 uSec 10000 Mb Latency < 1.1 uSec Throughput (Mpps) 95 Mpps Capacity 128 Gbps Routing Table size (# of static entries) 32 IPv4/IPv6 MAC Address table size (# of entries) 16,000 entries Reliability MTBF (years) 65.3 Operating temperature 0-40°C, 0-10,000 ft Operating relative humidity 15% to 95% @ 104°F (40°C) non-condensing Nonoperating/Storage temperature -40°F to 158°F (-40°C to 70°C) up to 15000 ft Nonoperating/Storage relative humidity 15% to 90% @ 149°F (65°C) non-condensing Altitude up to 10,000 ft (3 km) Acoustics1 LWAd = 3.5 Bel Notes1: 1 Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and (for JL807A and JL809A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm) Electrical Characteristics Frequency 50Hz/60Hz AC voltage 100-127VAC / 200-240VAC Current 5.0A/0.4A Maximum power rating 100-127V: 500W 200-220V: 480W Idle power 100-127V: 40W 200-220V: 80W PoE power Total 370 W PoE Power (Up to 240 W of Class 6 or 370 W of Class 4 PoE) Power Supply Internal power supply Safety EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 3 Emissions EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A Generic EN 55035, CISPR 35, KN35 EN EN 55035, CISPR 35 ESD EN/IEC 61000-4-2 Radiated EN/IEC 61000-4-3 EFT/Burst EN/IEC 61000-4-4 Surge EN/IEC 61000-4-5 Conducted EN/IEC 61000-4-6 Power frequency magnetic field EN/IEC 61000-4-8 Voltage dips and interruptions EN/IEC 61000-4-11 Harmonics EN/IEC 61000-3-2 Flicker EN /IEC 61000-3-3 Device Management Aruba Instant On Cloud; Web browser; SNMP Manager Mounting Positions and Supported Racking Mounts in an EIA-standard 19 in. telco rack or equipment cabinet. 2-post rack kit includedSupports table-top mountingSupports rack-mountingSupports wall-mounting with ports facing either up or downSupports under-table mounting using the brackets provided Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D)Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver (R9D18A)Aruba 10G SFP+ LC LR 10km SMF Transceiver (J9151E)Aruba 10G SFP+ to SFP+ 1m DAC (J9281D)Aruba 10G SFP+ to SFP+ 3m DAC (J9283D)
