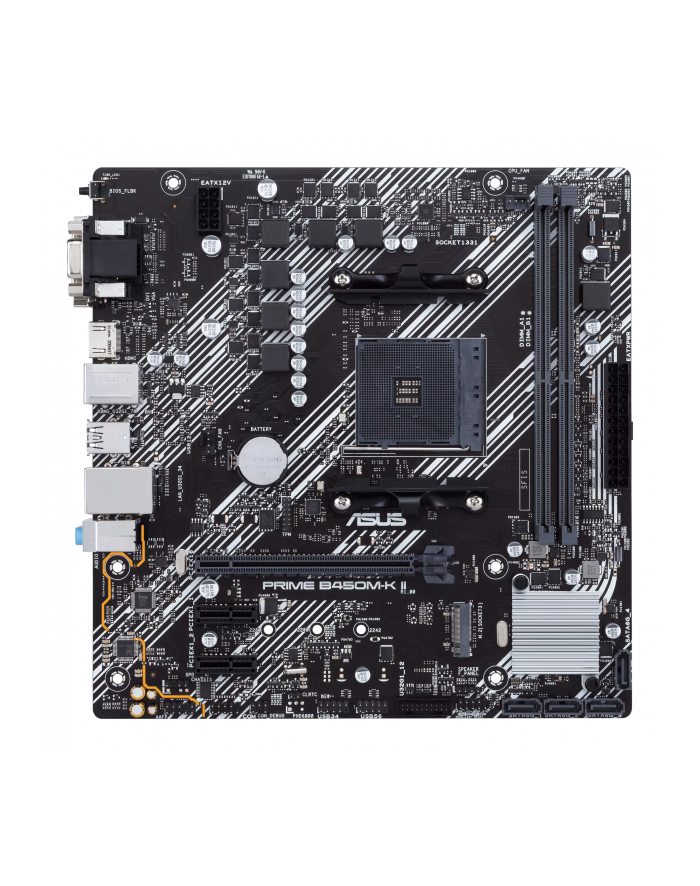

Asus PRIME B450M-K II - Socket AM4 - motherboard

PRIME B450M-K II AMD B450 (Ryzen AM4) micro ATX motherboard with M.2 support, HDMI/DVI-D/D-Sub, SATA 6 Gbps, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A, BIOS FlashBack™ Comprehensive cooling: PCH heatsink, and Fan Xpert Ultrafast connectivity: M.2 support, 1 Gb Ethernet, and USB 3.2 Gen 1 Type-A 5X Protection III: Multiple hardware safeguards for all-around system protection LED illumination: Lighting control for both PCIe slot and audio trace paths TECHNICAL SPECIFICATIONS CPU AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors ** Refer to www.asus.com for CPU support list Chipset AMD B450 Memory 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors2 x DIMM, Max. 64GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *Dual Channel Memory ArchitectureECC Memory (ECC mode) support varies by CPU.* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).* The maximum memory frequency supported varies by processor. Graphic Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *1 x D-Sub1 x DVI-D1 x HDMI 2.0b*Graphics specifications may vary between CPU types. Expansion Slots 3rd/2nd/1st Gen AMD Ryzen™ Processors1 x PCIe 3.0 x16 (x16 mode)2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors1 x PCIe 3.0 x16 (x8 mode)AMD Athlon™ with Radeon™ Vega Graphics Processors1 x PCIe 3.0 x16 (x4 mode)AMD B450 chipset2 x PCIe 2.0 x1 Storage Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics :1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)Athlon™ with Radeon™ Vega Graphics Processors :1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)AMD B450 chipset :4 x SATA 6Gb/s port(s),Support Raid 0, 1, 10 LAN Realtek® RTL8111HASUS LANGuard Audio Realtek ALC887/897 7.1-Channel High Definition Audio CODEC *- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playbackAudio Feature:- LED-illuminated design- Audio Shielding- Dedicated audio PCB layers- Premium Japanese audio capacitors* Choose the chassis with HD audio module in front panel to support 8-channel audio output. USB Ports Rear USB Port (Total 6)4 x USB 3.2 Gen 1 port(s)(4 x Type-A)2 x USB 2.0 port(s)(2 x Type-A) Front USB Port (Total 6)2 x USB 3.2 Gen 1 port(s)4 x USB 2.0 port(s) Software Features ASUS Exclusive SoftwareArmoury CrateAI Suite 3- Performance and Power Saving UtilityTurboV EVOEPUDIGI+ VRMFan XpertPC Cleaner- EZ update- System InformationASUS CPU-ZAI ChargerASUS EZ InstallerDAEMON ToolsNorton Anti-virus software (Free Trial for 60 days)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode ASUS Special Features ASUS 5X PROTECTION III- ASUS DIGI+ VRM- ASUS LANGuard- ASUS Overvoltage Protection- ASUS SafeSlot Core- ASUS Stainless-Steel Back I/OASUS Q-Design- ASUS Q-DIMM- ASUS Q-SlotASUS Thermal Solution- Aluminum heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LEDASUS Lighting Control Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)1 x DVI-D1 x D-Sub1 x HDMI1 x LAN (RJ45) port(s)4 x USB 3.2 Gen 1 (blue) Type-A2 x USB 2.03 x Audio jack(s)1 x BIOS FlashBack™ Button(s) Internal I/O Ports 1 x CPU Fan connector(s) (1 x 4 -pin)1 x Chassis Fan connector(s) (1 x 4 -pin)1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x SPI TPM header1 x COM port(s) connector(s)4 x SATA 6Gb/s connector(s)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x System panel(s)1 x Clear CMOS jumper(s)1 x COM port header1 x Speaker connector Accessories User´s manualI/O Shield2 x SATA 6Gb/s cable(s)1 x M.2 Anchor1 x Supporting DVD BIOS 256 Mb Flash ROM, UEFI AMI BIOS Operating System Windows® 10 64-bitWindows® 7 64-bit * Form Factor mATX Form Factor8.9 x 8.7 inch (22.6 x 22.1 cm) Note *To support Windows 7 64-bit, please install an AMD Ryzen™ 2nd Generation or Ryzen™ 1st Generation Processor.

Budowa: µATX
Chipset: AMD B450
RAM: 2x DDR4 DIMM, dual PC4-35200U/?DDR4-4400 (OC), max. 64GB (UDIMM)
Sloty rozszerzeń: 1x PCIe 3.0 x16, 2x PCIe 2.0 x1, 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 2280/?2260/?2242)
Złącza zewnętrzne: 1x VGA (iGPU), 1 x DVI-D (iGPU), 1x HDMI 2.0b (iGPU), 4x USB-A 3.0, 2x USB-A 2.0, 1x Gb LAN (Realtek RTL8111H), 3x wtyczka jack, 1x combo PS/?2
Złącza wewnętrzne: 1x USB 3.0 Header (2x USB 3.0), 2x USB 2.0 Header (4x USB 2.0), 4x SATA 6Gb/s (B450), 1x port szeregowy, 1x TPM-Header, 1x S/?PDIF-Header, 1x Speaker-Header
Header Chłodzenie: 1x Wentylatory CPU 4-Pin, 1x wentylator 4-Pin
Header Oświetlenie: brak
Przyciski/przełączniki: USB BIOS Flashback (zewn.)
Audio: 7.1 (Realtek ALC887)
Onboard-Grafika: iGPU
Wireless: brak
Poziom RAID: 0/?1/?10 (B450)
Multi GPU: brak
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V
Oświetlenie: pomarańczowy, 1 Zone (obwód audio)
BIOS: 1x 32MB (256Mb)
Cechy szczególne: Audio+solid capacitors, obsługa ECC
Gwarancja: trzy lata (realizacja przez sklep)
Ostatnia aktualizacja ceny: -


ASUS Prime B450M-K II. Producent procesora: AMD, Gniazdo procesora: Socket AM4, Procesor: AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 3, AMD Ryzen™ 5, 2nd Generation AMD Ryzen™ 5, AMD.... Obsługiwane rodzaje pamięci: DDR4-SDRAM, Maksymalna pojemność pamięci: 64 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2,PCI Express 3.0,SATA III. Rodzaj interfejsu sieci Ethernet: Gigabit Ethernet. Przeznaczenie: PC, Rodzaj płyty: micro ATX, Rodzina płyt z chipsetami: AMD
