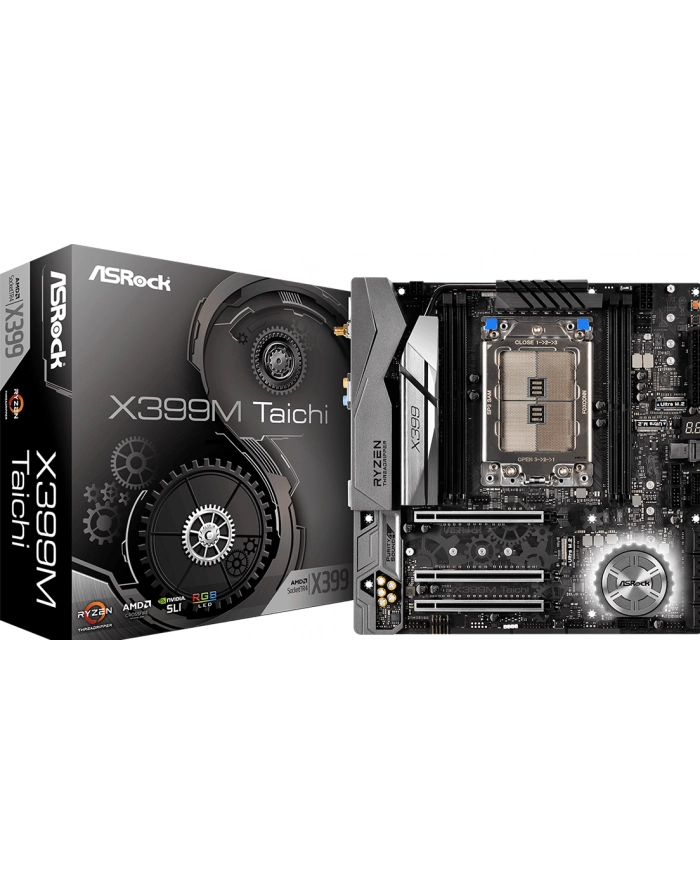

ASRock X399M Taichi - TR4

X399M Taichi Supports AMD TR4 Socket Ryzen Threadripper Series CPUs IR Digital PWM, 11 Power Phase & Dr. MOS Supports DDR4 3600+(OC) 3 PCIe 3.0 x16 NVIDIA® Quad SLI™, AMD Quad CrossFireX™ 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports DTS Connect 8 SATA3, 2 Ultra M.2 (PCIe Gen3 x4), 1 Ultra M.2 (PCIe Gen3 x4 & SATA3) 2 USB 3.1 Gen2 (1 Type-A + 1 Type-C), 12 USB 3.1 Gen1 (4 Front, 8 Rear) 1 U.2 Connector Intel® 802.11ac WiFi, Dual Intel® Gigabit LAN ASRock RGB LED BIOS Flashback TECHNICAL SPECIFICATIONS Unique Feature ASRock USB 3.1 Gen2- ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)- ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)ASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium 60A Power Choke- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)- IR3555M Dr. MOS 60A- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)- I/O Armor- Matte Black PCB- High Density Glass Fabric PCBIntel® 802.11ac WiFiASRock Steel SlotsASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)ASRock Ultra USB PowerASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop CPU - Supports AMD TR4 Socket Ryzen Threadripper Series CPUs- IR Digital PWM- 11 Power Phase design Chipset - AMD X399 Memory - Quad Channel DDR4 Memory Technology- 4 x DDR4 DIMM Slots- Supports DDR4 3600+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory (U-DIMM)*- Max. capacity of system memory: 64GB**- 15µ Gold Contact in DIMM Slots *Please refer to Memory Support List on ASRock's website for more information. **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. Graphics - n/a Slots - 3 x PCI Express 3.0 x16 Slots (PCIE1/PCIE2/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x16 (PCIE2); triple at x16 (PCIE1) / x16 (PCIE2) / x16 (PCIE3))*- Supports AMD Quad CrossFireX™ and CrossFireX™- Supports NVIDIA® Quad SLI™ and SLI™- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)- 15µ Gold Contact in VGA PCIe Slot (PCIE1, PCIE2 and PCIE3) *Supports NVMe SSD as boot disks Storage - 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280/22110 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*- 1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*- 1 x U.2 Connector** *Supports NVMe RAID (RAID 0, RAID 1 and RAID 10)Supports NVMe SSD as boot disksSupports ASRock U.2 Kit **If M2_1 is plugged, U.2 Connector will be disabled. LAN - Gigabit LAN 10/100/1000 Mb/s- 2 x GigaLAN Intel® I211AT- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Dual LAN with Teaming*- Supports Energy Efficient Ethernet 802.3az- Supports PXE *Teaming is supported on Windows® 10 RS2, RS3 and RS4. Wireless LAN - Intel® 802.11ac WiFi Module- Supports IEEE 802.11a/b/g/n/ac- Supports Dual-Band (2.4/5 GHz)- Supports high speed wireless connections up to 433Mbps- Supports Bluetooth 4.2 / 3.0 + High speed class II Connector - 1 x TPM Header- 1 x Power LED and Speaker Header- 1 x RGB LED Header*- 1 x CPU Fan Connector (4-pin)**- 1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***- 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)- 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)- 1 x Front Panel Audio Connector (15µ Gold Audio Connector)*****- 1 x Right Angle Front Panel Audio Connector*****- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)- 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)- 1 x Clear CMOS Button- 1 x Dr. Debug with LED- 1 x Power Button- 1 x Reset Button- 1 x CPU Xtreme OC Switch *Supports in total up to 12V/3A, 36W LED Strip **The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ***The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power. ****The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.CPU_FAN1, CHA_FAN1, CHA_FAN2, CPU_OPT/W_PUMP and CHA_FAN3/W_PUMP can auto detect if 3-pin or 4-pin fan is in use. *****Connect the audio device to either one of the audio connectors. Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)- Premium Blu-ray Audio support- Supports Surge Protection- Supports Purity Sound™ 4- Nichicon Fine Gold Series Audio Caps- 120dB SNR DAC with Differential Amplifier- NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)- Pure Power-In- Direct Drive Technology- PCB isolate shielding- Impedance Sensing on Rear Out port- Individual PCB Layers for R/L Audio Channel- Gold Audio Jacks- 15µ Gold Audio Connector- Supports DTS Connect Rear panel I/O - 2 x Antenna Ports- 1 x PS/2 Mouse/Keyboard Port- 1 x Optical SPDIF Out Port- 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)- 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)- 8 x USB 3.1 Gen1 Ports (Supports ESD Protection)*- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)- 1 x BIOS Flashback Button- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) *Ultra USB Power is supported on USB3_5 port.ACPI wake-up function is not supported on USB3_5 port. Software and UEFI Software- ASRock A-Tuning- ASRock RGB LED- ASRock APP Charger- ASRock XFast LANUEFI- ASRock Full HD UEFI- ASRock Instant Flash- ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar BIOS - 128Mb AMI UEFI Legal BIOS with GUI support- Supports "Plug and Play"- ACPI 5.1 compliance wake up events- Supports jumperfree- SMBIOS 2.3 support- CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment Accessories - Quick Installation Guide, Support CD, I/O Shield- 4 x SATA Data Cables- 1 x ASRock SLI_HB_Bridge_1S Card- 1 x ASRock SLI_HB_Bridge_2S Card- 2 x ASRock WiFi 2.4/5 GHz Antennas- 3 x Screws for M.2 Sockets Hardware Monitor - Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans- Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDP Operating System - Microsoft® Windows® 10 64-b Form Factor - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm- 8 Layer PCB- 2oz Copper PCB Certifications - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)

Budowa: microATX
Chipset: AMD X399
RAM: 4x DDR4 DIMM, quad PC4-28800U/?DDR4-3600 (OC), max. 64GB (UDIMM)
Sloty rozszerzeń: 3x PCIe 3.0 x16, 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 2280/?2260/?2242), 1x M.2/?M-Key (PCIe 3.0 x4, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 3.0 x4, 2280/?2260/?2242), 1x M.2/?E-Key (PCIe, 2230, zajęty przez moduł WiFi+BT), 1x U.2/?SFF-8643 (PCIe 3.0 x4)
Złącza zewnętrzne: 1x USB-C 3.1 (X399), 1x USB-A 3.1 (X399), 8x USB-A 3.0, 2x Gb LAN (Intel I211-AT), 5x wtyczka jack, 1x Toslink, 1x combo PS/?2, 1x USB BIOS Flashback
Złącza wewnętrzne: 4x USB 3.0, 4x USB 2.0, 8x SATA 6Gb/s (X399)
Header Chłodzenie: 1x Wentylatory CPU 4-Pin, 1x Wentylatory CPU/?pompa 4-Pin, 2x wentylator 4-Pin, 1x wentylator/?pompa 4-Pin
Header Oświetlenie: 2x RGB-Header 4-Pin (5050)
Przyciski/?przełączniki: przycisk Power, przycisk Reset, Clear CMOS, USB BIOS Flashback (zewn.)
Audio: 7.1 (Realtek ALC1220)
Poziom RAID: 0/?1/?10 (X399)
Multi Procesor graficzny: NVIDIA 3-Way-SLI (x16/?x16, x16/?x16/?x16), AMD 3-Way-CrossFireX (x16/?x16, x16/?x16/?x16)
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V, 1x 4-Pin ATX12V
Fazy Procesor: 11 (8+3)
Grafika: brak
Oświetlenie: RGB, 1 Zone (chłodzenie chipsetu)
Cechy dodatkowe produktu: dioda diagnostyczna, Bluetooth 4.2 + WiFi 802.11a/?b/?g/?n/?ac, obsługa ECC
Gwarancja producenta: trzy lata (realizacja tylko przez sklepy)
