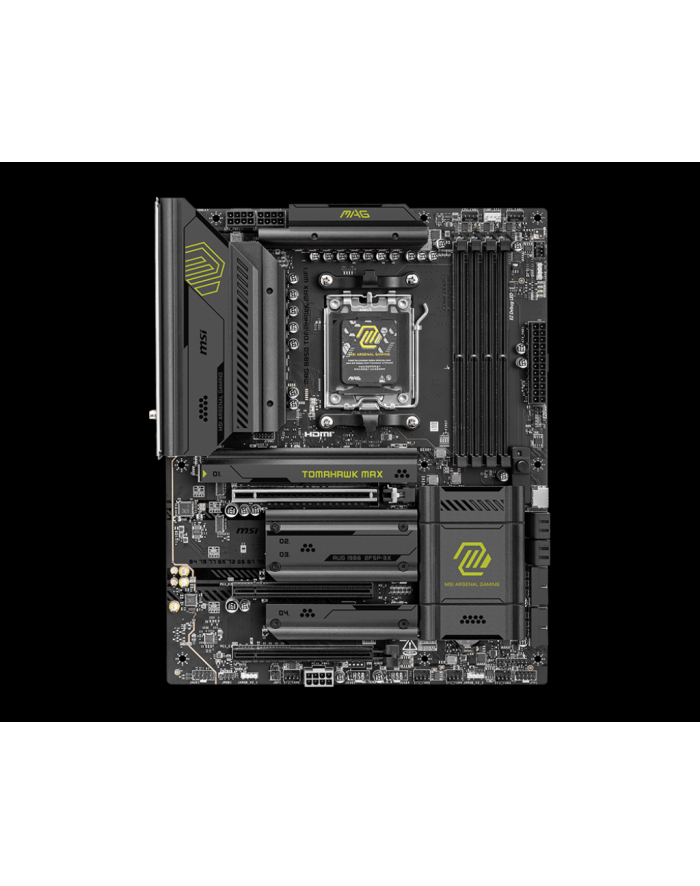

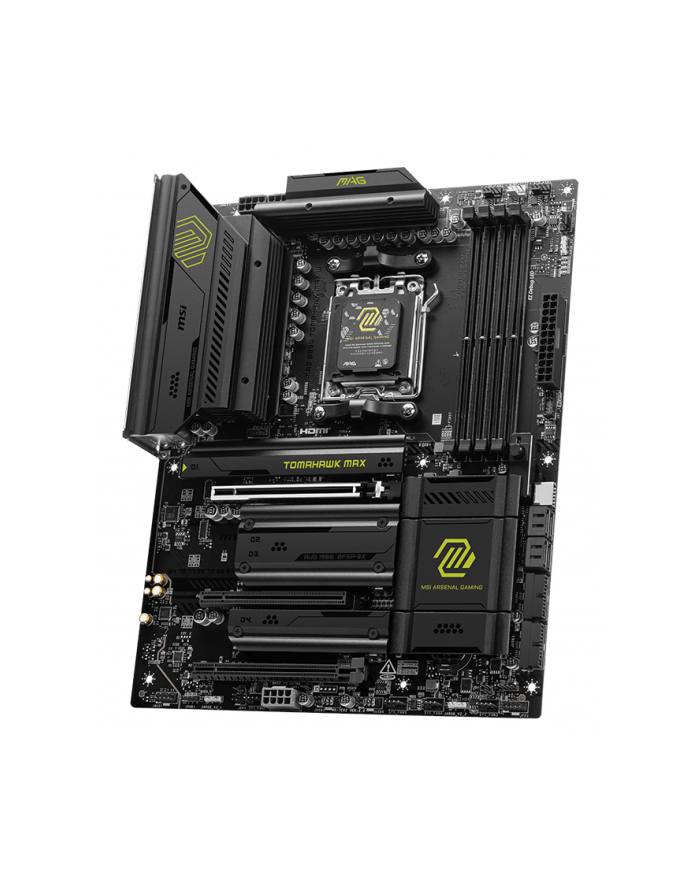

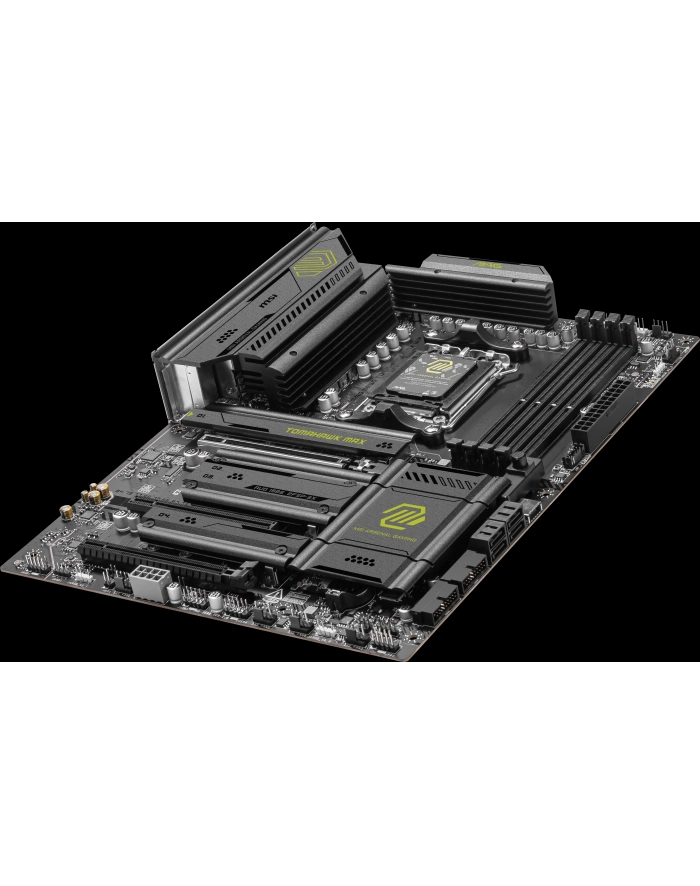

Płyta główna MSI MAG B850 TOMAHAWK MAX WIFI

Format:ATX; Chipset:AMD B850; Socket:Socket AM5 (LGA 1718); Motherboard memory module type:DDR5; RAID support:0, 1, 10; PCI express 16x:3MSI MAG B850 TOMAHAWK MAX WIFIMAG B850 TOMAHAWK MAX WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 20Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, itqqq1s ready for the battlefield of AMD Ryzen™ 9000 series processors.MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.ChipsetAMD B850CPUSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5Memory4x DDR5 UDIMM, Maximum Memory Capacity 256GBMemory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/sRyzen™ 9000 Series Processors max. overclocking frequency:• 1DPC 1R Max speed up to 8400+ MT/s• 1DPC 2R Max speed up to 6400+ MT/s• 2DPC 1R Max speed up to 6400+ MT/s• 2DPC 2R Max speed up to 4800+ MT/sSupports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPO™Supports Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM, Clock Driver bypass mode only** CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.• The DIMM slots on this motherboard have double-sided latches.• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.Onboard Graphics1x HDMI™Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.Slot3x PCI-E x16 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E1 slot• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)*PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slotAudioRealtek ALC4080 Codec7.1-Channel USB High Performance AudioSupports up to 32-bit/384kHz playback on front panelSupports S/PDIF outputStorage4x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devicesM.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devicesM.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices4x SATA 6GM2_1 slot• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)M2_2 slot• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)*PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot.** Please refer to the manual for M.2 SSD heatsink restrictionsRAIDSupports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devicesUSB4x USB 2.0 (Rear)4x USB 2.0 (Front)1x USB 5Gbps Type A (Rear)4x USB 5Gbps Type A (Front)2x USB 10Gbps Type A (Rear)3x USB 10Gbps Type C (Rear)1x USB 20Gbps Type C (Front)LANRealtek 8126VB 5G LANInternal IO1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x Power Connector(PCIE_PWR 8pin)1x CPU Fan1x Combo Fan (Pump_Sys Fan)6x System Fan1x EZ Conn-header (JAF_2)2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports4x USB 5Gbps Type A ports1x USB 20Gbps Type C portsWIRELESS LAN & BLUETOOTHWi-Fi 7 SolutionThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth 5.4**, MLO, 4KQAM* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.LED FEATURE4x EZ Debug LED1x EZ Memory Detection LEDBACK PANEL PORTSClear CMOS ButtonUSB 10Gbps Type-AUSB 5Gbps Type-AUSB 2.05G LANWi-Fi / BluetoothAudio ConnectorsFlash BIOS ButtonHDMI™USB 10Gbps Type-CUSB 10Gbps Type-CUSB 10Gbps Type-AOPERATING SYSTEMSupport for Windows 11 64-bitFORM FactorATX243.84mmx304.8mm

MSI MAG B850 TOMAHAWK MAX WIFI. Producent procesora: AMD, Gniazdo procesora: Gniazdo AM5, Procesor: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Obsługiwane rodzaje pamięci: DDR5-SDRAM, Maksymalna pojemność pamięci: 256 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2, Micro SATA III, Obsługiwane rodzaje dysków: HDD & SSD, Poziomy raid: 0, 1, 10. Rodzaj interfejsu sieci Ethernet: 5 Gigabit Ethernet, Podstawowy standard Wi-Fi: Wi-Fi 7 (802.11be), Standardy Wi- Fi: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Przeznaczenie: PC, Rodzaj płyty: ATX, Rodzina płyt z chipsetami: AMD
