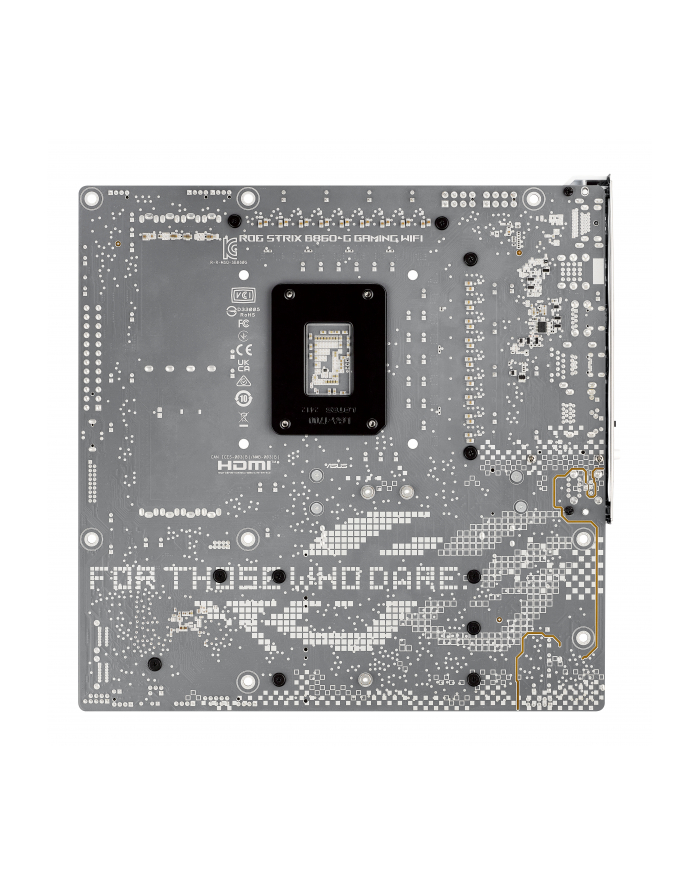

Płyta główna ASUS ROG STRIX B860-G GAMING WIFI

Format:micro ATX; Chipset:Intel B860; Socket:Socket 1851; Motherboard memory module type:DDR5; RAID support:0, 1, 5, 10; PCI express 16x:1ASUS ROG STRIX B860-G GAMING WIFIFeaturing Thunderbolt™ 4, PCIe 5.0, and Aura Sync lighting, the ROG Strix B860-G offers blazing-fast data transfers, outstanding connectivity, and a flexible aesthetic that adapts to bold or subtle preferences. Designed to meet the demands of elite gaming and advanced AI PC applications, it delivers the performance and speed you need.CPUSupport Intel Core™ Ultra Processors (Series 2)*Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*** Refer to https://www.asus.com/support/download-center/ for CPU support list.** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.ChipsetIntel B860 ChipsetMemory4 x DIMM slots, max. 256GB, DDR5Supports up to 9066+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*Dual channel memory architectureDIMM FitSupports Intel Extreme Memory Profile (XMP) memory moduleASUS Enhanced Memory Profile III(AEMPIII)* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.Graphics1 x DisplayPort**1 x HDMI™ port***1 x Intel Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs***** Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.** Supports max. 4K@60Hz as specified in DisplayPort 1.4.*** Supports 4K@60Hz as specified in HDMI 2.1.****Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs.***** VGA resolution support depends on processorsqqq1 or graphic cardsqqq1 resolution.Expansion SlotsIntel Core™ Ultra Processors (Series 2)1 x PCIe 5.0 x16 slot- To ensure compatibility of the deviceinstalled, please refer to https://www.asus.com/support/download-center/ forthe list of supported peripherals.StorageTotal supports 4 x M.2 slots and 4 x SATA6Gb/s ports*Intel Core™ Ultra Processors (Series 2)M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode)Intel B860 ChipsetM.2_2 slot (Key M), type 2280 (supportsPCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2230/2280 (supportsPCIe 4.0 x4 mode)**4 x SATA 6Gb/s ports* Intel Rapid Storage Technology supportsSATA RAID 0/1/5/10.Ethernet1 x Intel 2.5Gb EthernetASUS LANGuardWireless & BluetoothWi-Fi 7*2x2 Wi-Fi 7 (802.11be)Supports 2.4/5/6GHz frequency band**Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.Bluetooth v5.4****Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require  24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendorqqq1s website for details.** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturerqqq1s website for the latest specifications.USBRear USB (Total 10 ports)1 x Thunderbolt™ 4 port (1 x USB Type-C)  1 x USB 20Gbps ports (1 x USB Type-C)1 x USB 10Gbps ports (1 x Type-A)3 x USB 5Gbps ports (3 x Type-A)4 x USB 2.0 ports (4 x Type-A)Front USB (Total 6 ports)1 x USB 10Gbps connector (supports USBType-C)1 x USB 5Gbps header supports 2 additionalUSB 5Gbps ports2 x USB 2.0 header supports 3 additionalUSB 2.0 ports* USB Type-C power delivery output: max.5V/3AAudioRealtek ALC1220P 7.1 Surround SoundHigh Definition Audio CODEC*- Impedance sense for front and rear headphone outputs- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)- Supports up to 32-Bit/192 kHzplayback*Audio Features- SupremeFX Shielding Technology- Savitech SV3H712 AMP  - Rear optical S/PDIF out port- Premium audio capacitors- Dedicated audio PCB layers- Audio cover* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.Back Panel I/O Ports1 x Thunderbolt™ 4 USB Type-C port(s)1 x USB 20Gbps port(s) (1 x USB Type-C with DP Alt mode)1 x USB 10Gbps port(s) (1 x Type-A)3 x USB 5Gbps port(s) (3 x Type-A)4 x USB 2.0 port(s) (4 x Type-A)1 x DisplayPort1 x HDMI™ port1 x Wi-Fi module1 x Intel 2.5Gb Ethernet port2 x Audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™ button1 x Clear CMOS buttonInternal I/O ConnectorsFan and Cooling Related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header2 x 4-pin Chassis Fan headersPower Related1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connectorStorage Related4 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 10Gbps connector (supports USB Type-C )1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 header supports 3 additional USB 2.0 portsMiscellaneous3 x Addressable Gen2 header(s)1 x Front Panel Audio header (F_AUDIO)1 x 10-1 pin Front System Panel header1 x Thermal Sensor headerSpecial FeaturesExtreme Engine Digi+- 5K Black metallic capacitorsASUS Q-Design- M.2 Q-Latch- M.2 Q-Release- M.2 Q-Slide- PCIe Slot Q-Release Slim (with PCIe SafeSlot)- Q-Antenna- Q-Dashboard- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA[white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink backplate- M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Clear CMOS button- CPU Socket lever protector- ProCool- Pre-mounted I/O shield- SafeSlot- SafeDIMMAura Sync- Addressable Gen2 headersSoftware FeaturesROG Exclusive Software- ROG CPU-Z- Dolby AtmosASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- Fan Xpert 4- GameFirst- Power SavingAIDA64 Extreme (60 days free trial)HWiNFOASUS AI AdvisorASUS DriverHubASUS GlideXTurboV CoreAdobe Creative Cloud 30 Days Free Trial)Norton 360 for Gamers (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSAI Overclocking GuideASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash- ASUS UEFI BIOS EZ Mode- ASUS MyHotkeyNPU BoostBIOS256 Mb Flash ROM, UEFI AMI BIOSManageabilityWOL by PME, UEFI PXEAccessoriesCables2 x SATA 6Gb/s cablesMiscellaneous1 x ASUS WiFi Q-Antenna1 x Cable ties package1 x M.2 Q-Latch1 x M.2 Q-Slide1 x ROG key chain1 x ROG Strix stickers3 x M.2 rubbers1 x M.2 backplate rubber package(s)Documentation1 x Quick start guideOperating SystemWindows 11  (22H2 & later)Form Factormicro-ATX Form Factor9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

ASUS ROG STRIX B860-G GAMING WIFI. Producent procesora: Intel, Gniazdo procesora: LGA 1851 (Socket V1), Procesor: Intel Core Ultra (Series 2). Obsługiwane rodzaje pamięci: DDR5-SDRAM, Maksymalna pojemność pamięci: 256 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2, SATA III, Obsługiwane rodzaje dysków: HDD & SSD, Poziomy raid: 0, 1, 5, 10. Rodzaj interfejsu sieci Ethernet: 2.5 Gigabit Ethernet, Podstawowy standard Wi-Fi: Wi-Fi 7 (802.11be). Przeznaczenie: PC, Rodzaj płyty: micro ATX, Rodzina płyt z chipsetami: Intel
