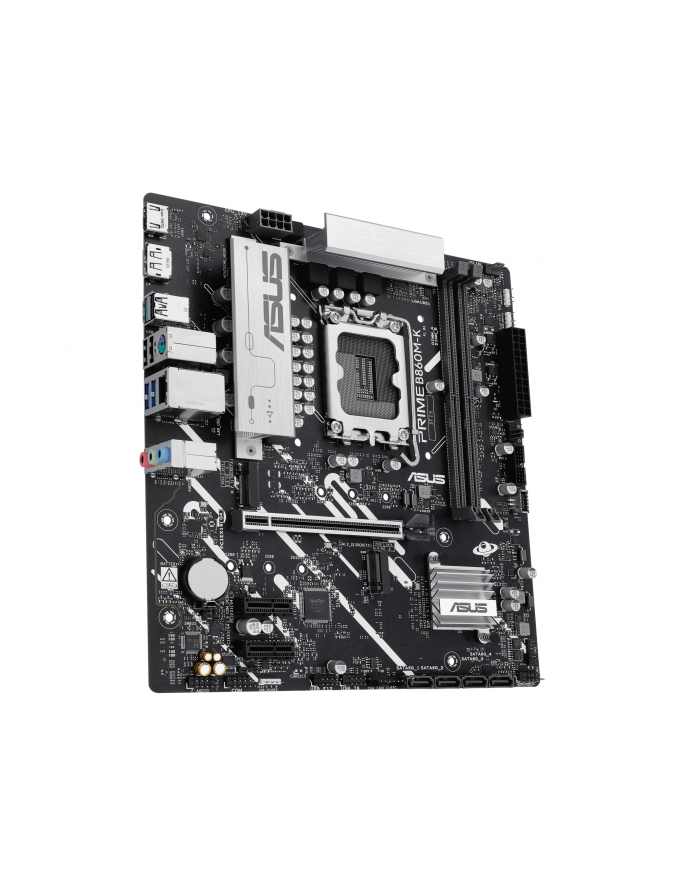

Płyta główna ASUS PRIME B860M-K

Format:ATX; Chipset:Intel B860; Socket:Socket 1851; Motherboard memory module type:DDR5; RAID support:0, 1, 5, 10; PCI express 16x:1; COM portASUS PRIME B860M-KASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-K motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.CPUSupports Intel Core™ Ultra Processors (Series 2), LGA1851*Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*** Refer to https://www.asus.com/support/download-center/ for CPU support list.** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.ChipsetIntel B860 ChipsetMemory2 x DIMM slots, max. 128GB, DDR5Supports up to 8800+MT/s (OC),  Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*Dual channel memory architectureDIMM FitSupports Intel Extreme Memory Profile (XMP) memory moduleASUS Enhanced Memory Profile III(AEMPIII)* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.Graphics1 x DisplayPort**1 x HDMI™ port***  * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.** Supports max. 4K@60Hz as specified in DisplayPort 1.4.***  Supports 4K@60Hz as specified in HDMI 2.1.**** VGA resolution support depends on processorsqqq1 or graphic cardsqqq1 resolution.Expansion SlotsIntel Core™ Ultra Processors (Series 2)1 x PCIe 4.0 x16 slotIntel B860 Chipset2 x PCIe 4.0 x1 slots- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*Intel Core™ Ultra Processors (Series 2) *M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)Intel B860 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.Ethernet1 x Realtek 2.5Gb EthernetASUS LANGuardUSBRear USB (Total 6 ports)1 x USB 10Gbps port (1 x Type-A)2 x USB 5Gbps ports (2 x Type-A)3 x USB 2.0 ports (3 x Type-A)**Front USB (Total 7 ports)1 x USB 5Gbps connector (supports USB Type-C)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports*** USB Type-C power delivery output: max. 5V/3A.** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.AudioRealtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.Back Panel I/O Ports1 x USB 10Gbps port (1 x Type-A)2 x USB 5Gbps ports (2 x Type-A)3 x USB 2.0 ports (3 x Type-A)1 x DisplayPort1 x HDMITM port1 x Realtek 2.5Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard/Mouse combo portInternal I/O ConnectorsFan and Cooling Related1 x 4-pin CPU Fan header2 x 4-pin Chassis Fan headersPower Related1 x 24-pin Main Power connector1 x 8-pin +12V CPU Power connectorStorage Related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 5Gbps connector (supports USB Type-C )1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous2 x Addressable Gen2 headers1 x Aura RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (F_AUDIO)1 x S/PDIF Out header1 x SPI TPM header (14-1 pin)1 x 10-1 pin Front Panel System headerSpecial FeaturesASUS 5X PROTECTION III- DIGI+VRM- LANGuard- Overvoltage protection- SafeSlot Core+- Stainless-steel back I/OASUS Q-Design- Q-Dashboard- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- VRM heatsink designASUS EZ DIY- ProCoolAura Sync- Aura RGB header- Addressable Gen2 headersSoftware FeaturesASUS Exclusive SoftwareArmoury Crate- Aura Sync- Fan Xpert 2+- Power SavingASUS AI AdvisorASUS DriverHubASUS CPU-ZNorton 360 Deluxe (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash- ASUS UEFI BIOS EZ Mode- ASUS MyHotkeyBIOS256(128+128) Mb Flash ROM, UEFI AMI BIOSManageabilityWOL by PME, PXEAccessoriesCables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x M.2 anchor packageDocumentation1 x Quick start guideOperating SystemWindows 11(22H2 & later), Windows 10 64-bit(21H2 & later)Form Factormicro-ATX Form Factor9.6 inch x 8.75 inch (24.4cm x 22.2cm)

ASUS PRIME B860M-K. Producent procesora: Intel, Gniazdo procesora: LGA 1851 (Socket V1), Procesor: Intel Core Ultra (Series 2). Obsługiwane rodzaje pamięci: DDR5-SDRAM, Maksymalna pojemność pamięci: 128 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2, SATA III, Obsługiwane rodzaje dysków: HDD & SSD, Poziomy raid: 0, 1, 5, 10. Rodzaj interfejsu sieci Ethernet: 2.5 Gigabit Ethernet. Przeznaczenie: PC, Rodzaj płyty: micro ATX, Rodzina płyt z chipsetami: Intel
