Aluminium Intel® LGA1700 Mini-ITX Cooler
Low-Profile and Compact - Maximum heatsink height of 29.92mm which makes it perfect for low profile systems and Small Form Factor (SFF) such as Mini-ITX, Cube and HTPC cases.
Intelligent and Optimised Design - Hi-performance aluminium heatsink and copper core coupled with an embedded fan that features intelligent PWM function, delivers as much air as needed at any given time to cool the CPU. Coupled with hi-grade thermal interface pre-applied. Ensuring that the cooler delivers outstanding cooling performance.

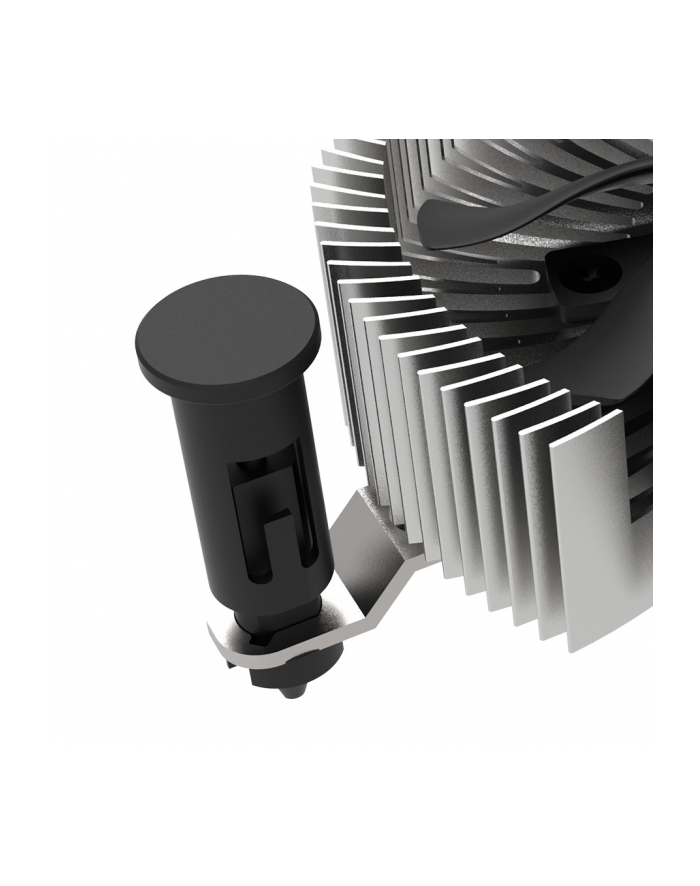

New and Easy Mounting Design - New push-pin design to cater for the Intel® LGA1700.
Array of Compatibility - Supports common desktop motherboards such as ATX, Micro-ATX, Mini-ITX, and Thin Mini-ITX.
TECHNICAL SPECIFICATIONS
Socket Type
Intel LGA1700
Cooler Dimension
87.2 x 85.2 x 29.92 mm (W x D x H)
Heatsink Material
Aluminium with copper core
TDP Support
73W TDP
Installation
Push Pins
Fan Specification
Fan Speed
600 - 3000 RPM (PWM controlled)
Max Airflow
33.50 CFM
Max Air Pressure
3.76 mm-H2O
Max Noise Level
28.71 dB(A)
Voltage Rating / Current Rating
12V DC / 0.19 A
Bearing Type
HDB
Fan Life Expectancy
50,000 hours / 25°C
Fan Connector
4-pin PWM
