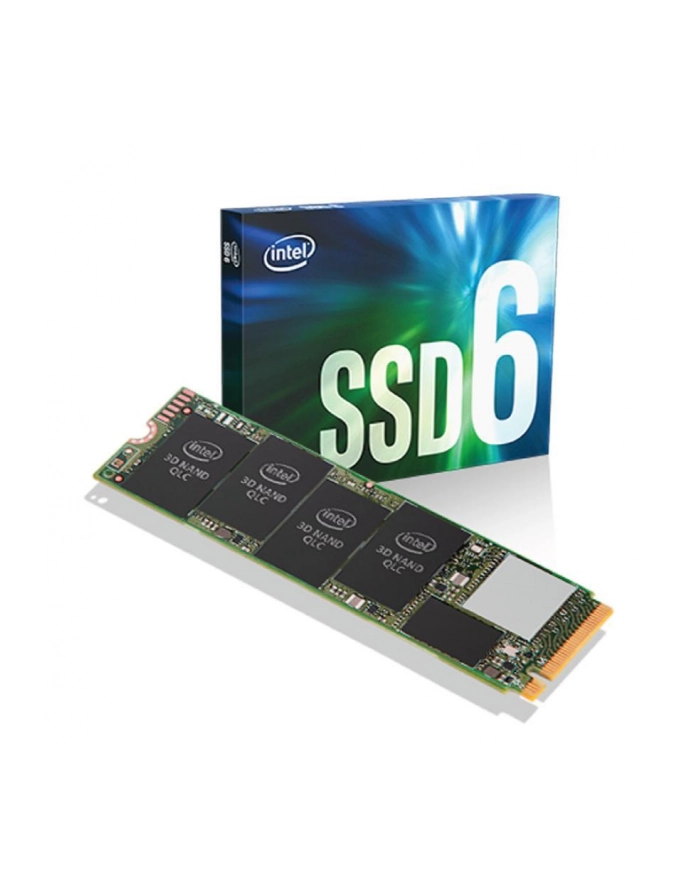

Intel® SSD 670p Series (512GB, M.2 80mm PCIe 3.0 x4, 3D4, QLC)
TECHNICAL SPECIFICATIONS
Product Collection
Intel® SSD 6 Series
Capacity
512 GB
Performance Specifications
Sequential Bandwidth - 100% Read (up to)
3000 MB/s
Sequential Bandwidth - 100% Write (up to)
1600 MB/s
Random Read (8GB Span) (up to)
110000 IOPS
Random Write (8GB Span) (up to)
315000 IOPS
Power - Active
80 mW
Power - Idle
25 mW
Reliability
Vibration - Operating
2.17 GRMS (5-700Hz)
Vibration - Non-Operating
1,500 G/0.5 ms
Shock (Operating and Non-Operating)
Operating; 1,000 G/0.5 ms Non Operation; 1,500 G/0.5 ms
Operating Temperature Range
0°C to 70°C
Operating Temperature (Maximum)
70°C
Operating Temperature (Minimum)
0°C
Endurance Rating (Lifetime Writes)
185 TBW
Mean Time Between Failures (MTBF)
1.6 million hours
Warranty Period
5 years
Package Specifications
Form Factor
M.2 22 x 80mm
Interface
PCIe 3.0 x4, NVMe
Advanced Technologies
Enhanced Power Loss Data Protection
No
Hardware Encryption
AES 256 bit
High Endurance Technology (HET)
No
Temperature Monitoring and Logging
No
End-to-End Data Protection
Yes
Intel® Smart Response Technology
Yes
Intel® Rapid Start Technology
Yes
Intel® Remote Secure Erase
No
