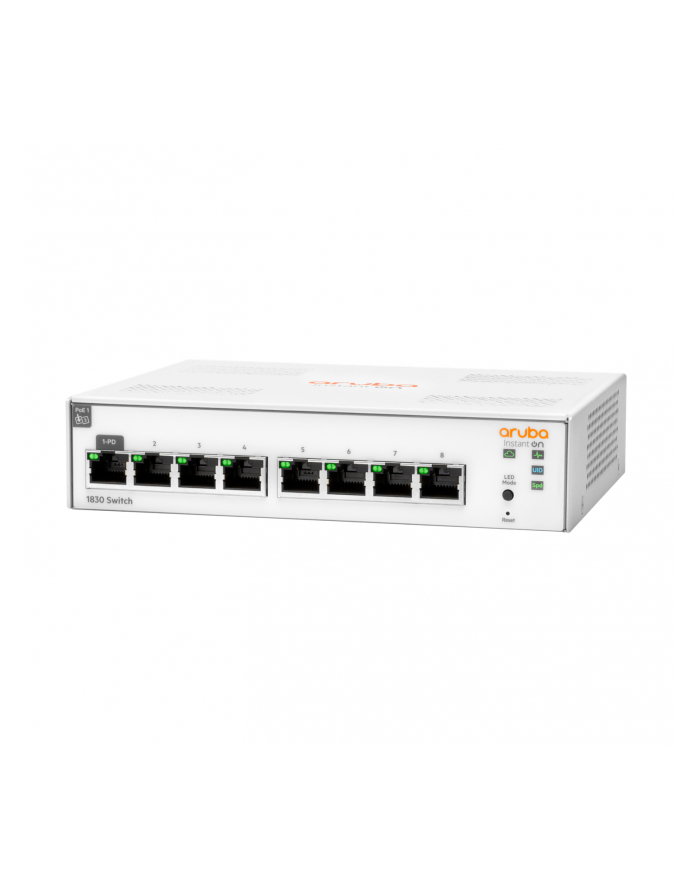

hewlett packard enterprise HPE Aruba Switch IOn 1830 8G Europe - English

Aruba Instant On 1830 8G 10/100/1000 Switch Features:Smart-managed Layer 2 Ethernet switch series ready to deploy in 8, 24-, and 48-port for non-PoE and PoE models.Compact and fan-less 8-port PoE/ non-PoE models and 24-port non-PoE model for acoustically sensitive environments.Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.Two (2) and four (4) dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network.Option to manage your switches through local web GUI.Cost-effective PoE Support: With half of the ports capable of supporting PoE, these switches are ideal for the most cost-efficient environments. Aruba Instant On 1830 8G Switch (JL810A) Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A) Aruba Instant On 1830 24G 2SFP Switch (JL812A) Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A) Aruba Instant On 1830 48G 4SFP Switch (JL814A) Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A) I/O ports and slots 8 RJ-45 autosensing 10/100/1000 ports IEEE 802.3af Class 3 PD (port 1) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 8 RJ-45 autosensing 10/100/1000 ports IEEE 802.3at Class 4 PoE (ports 1-4) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports 24 RJ-45 autosensing 10/100/1000 ports IEEE 802.3at Class 4 PoE (ports 1-12) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP 1GbE ports 48 RJ-45 autosensing 10/100/1000 ports IEEE 802.3at Class 4 PoE (ports 1-24) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP 1GbE ports Physical Characteristics Dimensions 157.0(d) x 173.0(w) x 39.1(h) mm 195.1(d) x 245.1(w) x 43.9(h) mm 215.9(d) x 443.0(w) x 43.9(h) mm 253.0(d) x 443.0(w) x 43.9(h) mm 253.0(d) x 443.0(w) x 43.9(h) mm 351.0(d) x 443.0(w) x 43.9(h) mm Weight 1.70 lb (0.77 kg) 3.40 lb (1.54 kg) 5.50 lb (2.49 kg) 7.65 lb (3.47 kg) 7.80 lb (3.54 kg) 10.90 lb (4.94 kg) Processor and Memory ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB "RM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB Aruba Instant On 1830 8G Switch (JL810A) Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A) Aruba Instant On 1830 24G 2SFP Switch (JL812A) Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A) Aruba Instant On 1830 48G 4SFP Switch (JL814A) Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A) Performance 100 Mb latency < 5.2 uSec < 5.2 uSec < 5.2 uSec < 5.2 uSec < 5.2 uSec < 5.2 uSec 1000 Mb latency < 2.8 uSec < 2.8 uSec < 2.8 uSec < 2.8 uSec < 2.8 uSec < 2.8 uSec 10000 Mb latency n/a n/a n/a n/a n/a n/a Throughput (Mpps) 11.90 Mpps 11.90 Mpps 38.68 Mpps 38.68 Mpps 77.37 Mpps 77.37 Mpps Capacity 16 Gbps 16 Gbps 52 Gbps 52 Gbps 104 Gbps 104 Gbps MAC address table size (# of entries) 8,000 entries 8,000 entries 16,000 entries 16,000 entries 16,000 entries 16,000 entries Reliability MTBF (years) 188.2 105.9 203.6 96.6 114.4 83.5 Environment Operating temperature 32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C) Operating relative humidity 15% to 95% @ 104°F (40°C) 15% to 95% @ 104°F (40°C) 15% to 95% @ 104°F (40°C) 15% to 95% @ 104°F (40°C) 15% to 95% @ 104°F (40°C) 15% to 95% @ 104°F (40°C) Nonoperating/ storage temperature -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C) Nonoperating/ storage relative humidity 15% to 95% @ 140°F (60°C) 15% to 95% @ 140°F (60°C) 15% to 95% @ 140°F (60°C) 15% to 95% @ 140°F (60°C) 15% to 95% @ 140°F (60°C) 15% to 95% @ 140°F (60°C) Altitude up to 10,000 ft (3 km) up to 10,000 ft (3 km) up to 10,000 ft (3 km) up to 10,000 ft (3 km) up to 10,000 ft (3 km) up to 10,000 ft (3 km) Acoustics1 Fanless Fanless Fanless LWAd = 3.1 Bel LpAm (Bystander) = 17 dB LWAd = 3.4 Bel LpAm (Bystander) = 19 dB LWAd = 4.0 Bel LpAm (Bystander) = 25 dB Notes: 1Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and (for JL813A and JL815A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm) 100% traffic Fanless Fanless Fanless LWAd = 3.1 Bel LpAm (Bystander) = 17 dB LWAd = 3.4 Bel LpAm (Bystander) = 19 dB LWAd = 3.5 Bel LpAm (Bystander) = 20 dB 100% traffic / 0% PoE Fanless Fanless Fanless LWAd = 3.1 Bel LpAm (Bystander) = 17 dB - LWAd = 3.5 Bel LpAm (Bystander) = 20 dB 100% traffic / 50% PoE Fanless Fanless Fanless LWAd = 3.1 Bel LpAm (Bystander) = 17 dB - LWAd = 4.0 Bel LpAm (Bystander) = 25 dB 100% traffic / 100% PoE Fanless Fanless Fanless LWAd = 5.1 Bel LpAm (Bystander) = 35 dB - LWAd = 5.7 Bel LpAm (Bystander) = 41 dB Aruba Instant On 1830 8G Switch (JL810A) Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A) Aruba Instant On 1830 24G 2SFP Switch (JL812A) Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A) Aruba Instant On 1830 48G 4SFP Switch (JL814A) Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A) Electrical Characteristics Frequency 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz AC voltage 100-127VAC / 200- 240VAC 100-127VAC / 200- 240VAC 100-127VAC / 200- 240VAC 100-127VAC / 200- 240VAC 100-127VAC / 200- 240VAC 100-127VAC / 200- 240VAC Current 12V -- 1.0A 1.0A/0.5A 0.4A/0.3A 2.7A/1.4A 0.9A/0.6A 5.2A/2.6A Maximum power rating 100-127V: 8.09W 200-220V: 8.05W 100-127V: 86.07W 200-220V: 83.67W 100-127V: 19.1W 200-220V: 19W 100-127V: 244.6W 200-220V: 237.2W 100-127V: 40.2W 200-220V: 40W 100-127V: 462.5W 200-220V: 452.5W Idle power 100-127V: 5.8W 200-220V: 5.9W 100-127V: 8.3W 200-220V: 8.2W 100-127V: 7.6W 200-220V: 7.8W 100-127V: 14.5W 200-220V: 13.4W 100-127V: 17.7W 200-220V: 17.7W 100-127V: 25.8W 200-220V: 25.4W PoE power 13W max Class 3 PD 65 W Class 4 PoE - 195 W Class 4 PoE - 370 W Class 4 PoE Power supply External power adapter (included) Internal power supply Internal power supply Internal power supply Internal power supply Internal power supply Safety EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. L 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 Emissions EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A Aruba Instant On 1830 8G Switch (JL810A) Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A) Aruba Instant On 1830 24G 2SFP Switch (JL812A) Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A) Aruba Instant On 1830 48G 4SFP Switch (JL814A) Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A) Immunity Generic EN 55035, CISPR 35, KN35 EN 55035, CISPR 35, KN35 EN 55035, CISPR 35, KN35 EN 55035, CISPR 35, KN35 EN 55035, CISPR 35, KN35 EN 55035, CISPR 35, KN35 EN EN 55035, CISPR 35 EN 55035, CISPR 35 EN 55035, CISPR 35 EN 55035, CISPR 35 EN 55035, CISPR 35 EN 55035, CISPR 35 ESD EN/IEC 61000-4-2 EN/IEC 61000-4-2 EN/IEC 61000-4-2 EN/IEC 61000-4-2 EN/IEC 61000-4-2 EN/IEC 61000-4-2 Radiated EN/IEC 61000-4-3 EN/IEC 61000-4-3 EN/IEC 61000-4-3 EN/IEC 61000-4-3 EN/IEC 61000-4-3 EN/IEC 61000-4-3 EFT/Burst EN/IEC 61000-4-4 EN/IEC 61000-4-4 EN/IEC 61000-4-4 EN/IEC 61000-4-4 EN/IEC 61000-4-4 EN/IEC 61000-4-4 Surge EN/IEC 61000-4-5 EN/IEC 61000-4-5 EN/IEC 61000-4-5 EN/IEC 61000-4-5 EN/IEC 61000-4-5 EN/IEC 61000-4-5 Conducted EN/IEC 61000-4-6 EN/IEC 61000-4-6 EN/IEC 61000-4-6 EN/IEC 61000-4-6 EN/IEC 61000-4-6 EN/IEC 61000-4-6 Power frequency magnetic field EN/IEC 61000-4-8 EN/IEC 61000-4-8 EN/IEC 61000-4-8 EN/IEC 61000-4-8 EN/IEC 61000-4-8 EN/IEC 61000-4-8 Voltage dips and interruptions EN/IEC 61000-4-11 EN/IEC 61000-4-11 EN/IEC 61000-4-11 EN/IEC 61000-4-11 EN/IEC 61000-4-11 EN/IEC 61000-4-11 Harmonics EN/IEC 61000-3-2 EN/IEC 61000-3-2 EN/IEC 61000-3-2 EN/IEC 61000-3-2 EN/IEC 61000-3-2 EN/IEC 61000-3-2 Flicker EN /IEC 61000-3-3 EN /IEC 61000-3-3 EN /IEC 61000-3-3 EN /IEC 61000-3-3 EN /IEC 61000-3-3 EN /IEC 61000-3-3 Device Management Aruba Instant On Cloud; Web browser; SNMP Manager Aruba Instant On Cloud; Web browser; SNMP Manager Aruba Instant On Cloud; Web browser; SNMP Manager Aruba Instant On Cloud; Web browser; SNMP Manager Aruba Instant On Cloud; Web browser; SNMP Manager Aruba Instant On Cloud; Web browser; SNMP Manager Mounting Mounting positions and supported racking Supports table-top mounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using base surface mounting holes Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using the brackets provided Must be mounted top surface up. To prevent possible impact to longterm reliability, product should not be mounted upside-down Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using the brackets provided Must be mounted top surface up. To prevent possible impact to longterm reliability, product should not be mounted upside-down Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using the brackets provided Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using the brackets provided Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting Supports wall-mounting with ports facing either up or down Suports under-table mounting using the brackets provided Aruba Instant On 1830 8G Switch (JL810A) Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A) Aruba Instant On 1830 24G 2SFP Switch (JL812A) Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A) Aruba Instant On 1830 48G 4SFP Switch (JL814A) Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A) Transceivers Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A) Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A) Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A) Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A) Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D) Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D) Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D) Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D) Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D) Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D) Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D) Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D)

HPE Aruba Networking Networking Instant On Switch 8p Gigabit 1830. Typ przełącznika: Zarządzany, Warstwa przełącznika: L2. Podstawowe przełączania Ethernet RJ-45 porty typ: Gigabit Ethernet (10/100/1000), Podstawowe przełączanie RJ-45 Liczba portów Ethernet: 8. Pełny dupleks. Wielkość tabeli adresów: 8000 wejścia, Przepustowość rutowania/przełączania: 16 Gbit/s. Standardy komunikacyjne: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Możliwości montowania w stelażu
