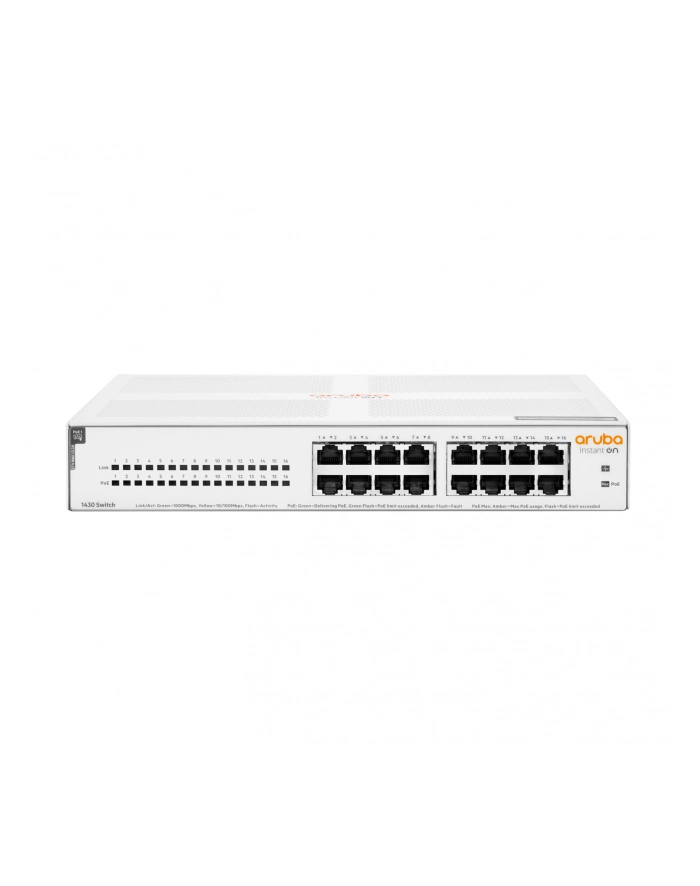

Hewlett Packard Enterprise Hpe Aruba Instant On 1430 16G Class4 Poe 124W Switch (R8R48AABB)

Aruba Instant On 1430 16G Class4 PoE 124W Switch (R8R48A) I/O ports and slots 16 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only Dimensions 260(d) x 275(w) x 44(h) mm Weight 4.60 lb (2.09 kg) Processor and Memory 128Kb EEPROM; Packet buffer size: 2.0 Mb 100 Mb latency < 2.7 µSec 1000 Mb latency < 1.80 µSec Throughput (Mpps) 23.80 Mpps Capacity 32 Gbps MAC address table size 8192 entries Reliability MTBF (years) 126.1 Operating temperature 32°F to 104°F (0°C to 40°C) Operating relative humidity 15% to 95% @ 104°F (40°C) non-condensing Nonoperating/ storage temperature -40°F to 158°F (-40°C to 70°C) up to 15000 ft Nonoperating/ storage relative humidity 15% to 90% @ 149°F (65°C) non-condensing Altitude up to 10,000 ft (3 km) Acoustics Fanless Frequency 50Hz/60Hz AC voltage 100-127VAC / 200- 240VAC Current 1.7A /0.8A Maximum power rating 147W Idle power 5W PoE power 124W Class 4 PoE Power Supply Internal Power Supply Safety EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 3rd. Ed. EN/IEC 60825- 1:2014 Class 1 Emissions EN 55032:2015/ CISPR 32, Class A FCC CFR 47 Part 15: 2018, Class A ICES-003, Class A VCCI-32, Class A CNS 13438, Class A KS C 9832, Class A AS/NZS CISPR 32, Class A Immunity BS/EN 55035, CISPR 35, KS C 9835 Generic EN 55035, CISPR 35 EN EN/IEC 61000-4-2 ESD EN/IEC 61000-4-3 Radiated EN/IEC 61000-4-4 EFT/Burst EN/IEC 61000-4-5 Surge EN/IEC 61000-4-6 Conducted EN/IEC 61000-4-8 Power frequency magnetic field EN/IEC 61000-4-11 Voltage dips and interruptions EN/IEC 61000-3-2 Harmonics EN /IEC 61000-3-3 Device Management Unmanaged Mounting Mounting positions and supported racking Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting using the brackets provided Supports wall-mounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided Supports under-table mounting using the brackets provided Must be mounted top surface up. To prevent possible impact to long-term reliability, product should not be mounted upside-down

HPE Aruba Networking Networking Instant On Switch 16p Gigabit CL4 PoE 124W 1430. Typ przełącznika: Nie zarządzany, Warstwa przełącznika: L2. Podstawowe przełączania Ethernet RJ-45 porty typ: Gigabit Ethernet (10/100/1000), Podstawowe przełączanie RJ-45 Liczba portów Ethernet: 16. Pełny dupleks. Wielkość tabeli adresów: 8192 wejścia, Przepustowość rutowania/przełączania: 32 Gbit/s. Standardy komunikacyjne: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE.... Obsługa PoE. Możliwości montowania w stelażu, Układ: 1U
