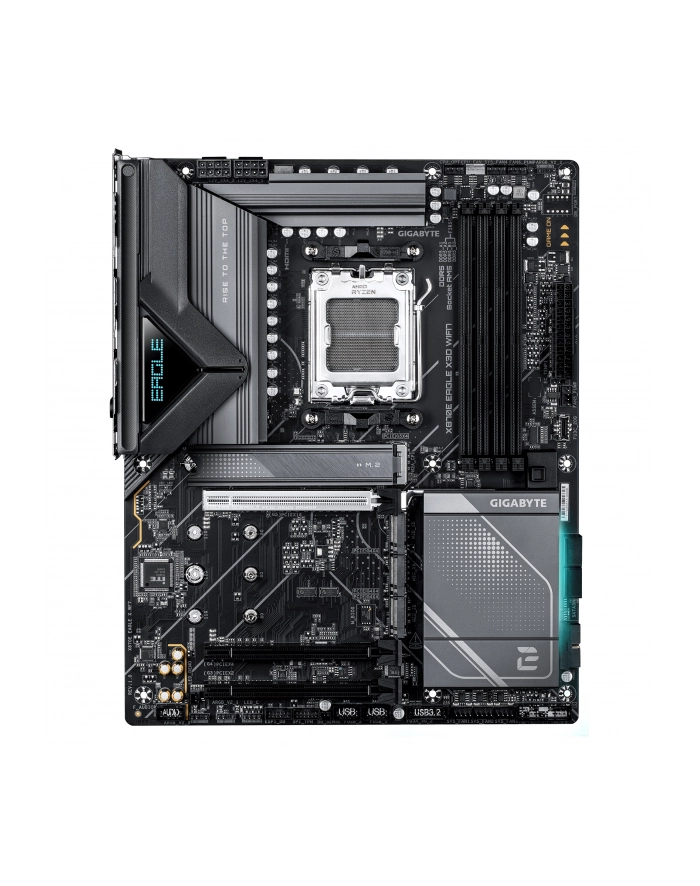

GIGABYTE X870E EAGLE X WF7 AM5 4xDDR5 4xSATA 4xM.2

Opis:

• X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
• DDR5 OC up to 9000MT/s
• DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
• AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
• Digital twin 14+2+2 phases VRM solution
• Dual Channel DDR5 : 4*DIMMs with AMD EXPO Memory Module Support
• M.2 EZ-Flex : high-efficiency heat dissipation & flexible baseplate for M.2 SSD (Exclusive Patented Design)
• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• PCIe EZ-Latch Plus : PCIe slots with Quick Release & Screwless Design
• EZ-Latch Plus : M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click : M.2 heatsinks with screwless design
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 x4
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
• Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt
• PCIe UD Slot : PCIe 5.0 x16 slot with 10X strength for graphics card

Model:

X870E EAGLE X WF7

Gniazdo procesora: Socket AM5

Rodzina procesora: AMD Ryzen 9,
AMD Ryzen,
AMD Ryzen 7,
AMD Ryzen 5

Zintegrowany procesor: Nie

Producent chipsetu MB: AMD

Chipset:

AMD X870E

Rodzaj pamięci: SODIMM DDR5

Liczba gniazd DDR5: 4

Częstotliwość szyny pamięci: 8600 MHz,
7800 MHz,
9000 MHz,
8800 MHz,
8400 MHz,
8000 MHz,
7600 MHz,
7000 MHz,
6600 MHz,
4800 MHz,
6400 MHz,
5200 MHz,
6000 MHz,
4400 MHz,
7200 MHz,
6200 MHz,
6800 MHz,
5600 MHz

Maks. wielkość pamięci: 256 GB

Gniazda rozszerzeń: 4 x M.2,
1 x PCIe x 16,
1 x PCIe 4.0 x 4,
1 x PCIe 5.0 x16,
1 x PCIe 4.0 x 8

Maksymalna ilość urządzeń SATA: 4

RAID: Tak

Szczegółowe dane o interfejsach dysków/napędów:

Złącza rozszerzeń

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
• AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
• AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
• AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
• The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
• The PCIEX4 slot shares bandwidth with the M2B_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SB connector.
• 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

Złącza SATA

• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
• AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
• AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
• AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
• 3 x M.2 connectors (M2B_SB, M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
• * RAID 5 is only available on AMD Ryzen(TM) 9000 Series Processors.
• RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Grafika:

• Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:
• 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
• Support for DisplayPort 1.4 version and HDR.
• Integrated Graphics Processor with AMD Radeon Graphics support:
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Karta dźwiękowa:

• Realtek ALC1220 CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

Interfejs sieciowy:

LAN

• Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

• Qualcomm Wi-Fi 7 QCNCM865
• 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.4
• Support for 11be 320MHz wireless standard

Porty USB na tylnym panelu: 11

Porty USB do wyprowadzenia z płyty: 9

Liczba portów USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1: 8

Liczba portów USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2: 8

FireWire (IEEE 1394): Nie

Port / Złącze COM (szeregowy): Nie

Port / Złącze LPT (równoległy): Nie

Złącza zewnętrzne: 1 x RJ-45,
2 x USB4 Typ-C,
4 x USB 3.2 Gen 2 Type-A,
1 x Przycisk Clear CMOS,
4 x USB 3.2 Gen 1 Type-A,
1 x USB 3.2 Gen 2 Type-C,
1 x S/PDIF,
1 x Przycisk Q-Flash Plus,
1 x Line In (błękitny),
2 x SMA,
1 x Line Out (zielony / headphones),
1 x HDMI,
Przycisk Power,
Przycisk Reset

Złącza dostępne na płycie: 1 x Czujnik temperatury,
2 x 4pin wentylator obudowy chłodzenie cieczą,
1 x Czujnik hałasu (Noise detection header),
1 x USB 3.2 Gen 2x2 Type-C,
1 x Zworka reset,
4 x 4pin wentylator obudowy,
4 x M.2,
1 x 4pin wentylator procesora,
1 x TPM,
4 x SATA III 6Gb/s,
2 x USB 2.0/1.1,
1 x Zworka Clear CMOS,
1 x System panel (front),
1 x Taśma LED RGB,
3 x Adresowalna dioda LED,
1 x 4pin wentylator procesora chłodzenie cieczą,
2 x 8pin 12V zasilanie,
2 x USB 3.2 Gen 1 Type-A,
1 x Przedni panel audio,
1 x 24pin ATX zasilanie

Funkcje specjalne:

• Support for GIGABYTE Control Center (GCC)
• Support for Q-Flash
• Support for Q-Flash Plus
• Support for Smart Backup

Bios:

• 1 x 512 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Format płyty: ATX

Wymiary:

30.5 x 24.4 cm

Obsługiwane systemy operacyjne: Windows 11

Oprogramowanie:

Norton Internet Security (OEM version)

Uwaga: CE+WEEE
