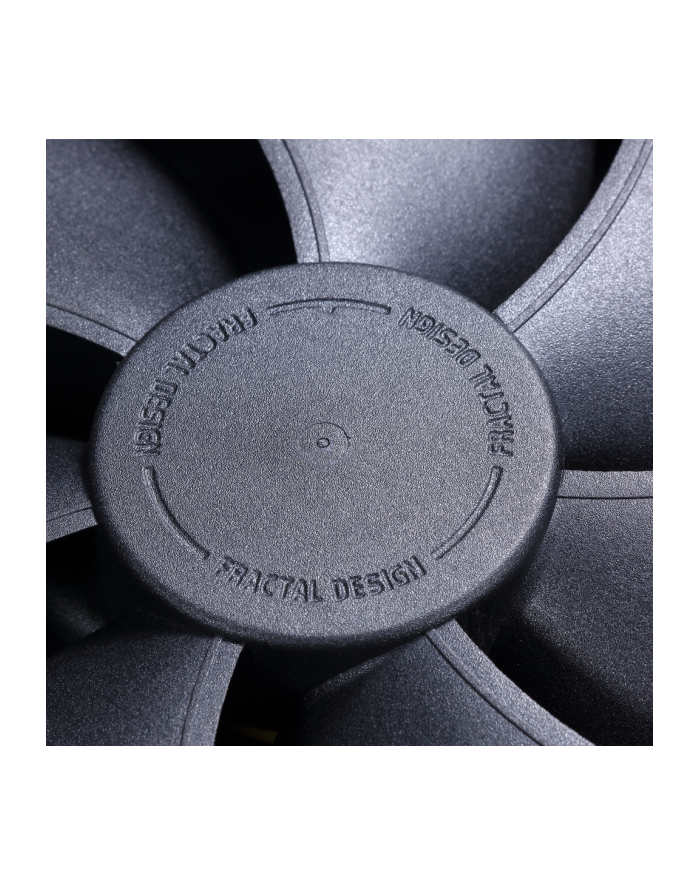

Fractal Design Venturi HP-12 PWM czarny

http://www.fractal-design.com/home/product/casefans/venturi-series/venturi-hp-12-pwm The Venturi High Pressure Series PWM fans, HP-12 and HP-14, are optimized for high-restriction airflow scenarios, making them an excellent choice for usage on large heatsinks, on radiators, or in other highly restrictive scenarios. Designed with a variety of performance-increasing and noise-reducing features, these fans can move an amazing amount of air through restricted environments compared to other fans at the same, minimal noise level. The HP-14 comes with two sets of solid vibration-dampening rubber corners: one for standard 140mm fan hole spacing (125mm) and one compatible with the standard 120mm hole spacing (105mm). The Venturi High Pressure Series PWM fans are ideal for those looking for a perfect balance between high performance and low noise built from sturdy, high quality materials. Key features Featuring true FDB-bearings, providing silent operation coupled with a long lifespan Equipped with a counter-balanced magnet that reduces the axial tension on the bearing Features integrated vibration-dampening corners, made from solid high-quality synthetic rubber Dense, sturdy construction, made from high grade glass fiber reinforced thermoplastic polymer Fan geometry is optimized for high pressure, delivering high performance results in high restriction usage scenarios, such as in use with large dense heatsinks or water cooling radiators. Featuring PWM control with a very wide speed range, starting at only 400RPM (400 +/- 100 RPM), ideal for CPU heatsinks or radiators, where the motherboard can control the fan speed based on the CPU temperature. Aerodynamically shaped thin stator struts reduce noise and unwanted turbulence. Strategically placed notches on the blades further reduce and diffuse any humming noise produced when the blades pass the stator struts The trip wire technology introduces a micro-turbulent layer that combats elements that negatively affect performance, resulting in quieter operation Comes with a PWM Y-cable, for connecting additional fans to a single PWM header on your motherboard or PWM fan controller 140mm fans come with an additional set of vibration-dampening corners are included that lends compatibility with 120mm fan mounts (105mm screw spacing). This enables the use of 140mm fans on many CPU coolers. Available in 120mm and 140mm fan sizes Specifications: Fan HF-12 HP-12 PWM HF-14 HP-14 PWM Size [mm] 120*120*25mm 120*120*25mm 140*140*25mm 140*140*25mm Colors available Black blades, black corners, dark grey ("Gunmetal") frame Black blades, black corners, dark grey ("Gunmetal") frame Black blades, black corners, dark grey ("Gunmetal") frame Black blades, black corners, dark grey ("Gunmetal") frame Screw hole pattern 105*105mm 105*105mm 125*125mm 105*105mm 125*125mm 105*105mm Connector 3-pin fan header 4-pin fan header 3-pin fan header 4-pin fan header Bearing FDB FDB FDB FDB Number of blades 9 7 11 7 Rotational speed [RPM] 1400 1800 1200 1500 Acoustical noise [dB (A)] 25.3 31.7 26.5 30.1 Maximum air flow [CFM] 83.4 61.4 118.2 78.1 Maximum air flow [m 3 /h] 141.7 104.3 200.8 132.7 Maximum pressure [mm H 2 O] 1.22 2.3 0.95 1.94 Actual input power [W] 1.3 1.0 2.2 1.4 Maximum rated input current [A] 0.2 0.2 0.3 0.2 Nominal input voltage [V] 12V 12V 12V 12V Minimum startup voltage [V] 4V 6V 4V 7V Low (0-20%) PWM speed 400 RPM 400 RPM Low PWM Static pressure 0.45 mm H2O 0.54 mm H2O Low PWM Air flow 15.4 CFM 26.2 m3/h 24.0 CFM 40.8 m3/h Low PWM Noise level < 10 dB (A) < 10 dB (A) Low speed adapter speed 1100 RPM 850 RPM Low speed adapter Static pressure 0.89 mm H2O 0.59 mm H2O Low speed adapter Air flow 65.8 CFM 111.8 m3/h 78.5 CFM 133.4 m3/h Low speed adapter Noise level 19.0 dB (A) 18.3 dB (A) MTBF [hours] 150,000 150,000 150,000 150,000 Unit weight [g] 169 179 202 210 Package weight [g] 215 225 260 270 Cable length [mm] 500 500 500 500 Cable type Braided all-black ribbon wire Braided all-black ribbon wire Braided all-black ribbon wire Braided all-black ribbon wire Packaging dimensions [mm] ( Including hanging tab) 180*122*30 180*122*30 200*142*30 200*142*30 Packaging dimensions [mm] (Excluding hanging tab ) 147*122*30 147*122*30 167*142*30 167*142*30 Package contents Venturi Series fan Screw pack with 4 metal screws [HF models] Low speed adapter [HP models] 1->2 PWM signal splitter cable [140 mm models] 4 additional rubber corners, with 105mm hole pattern

Dane techniczne:
Nazwa produktu: Fractal Design Venturi HF-12 PWM czarny
Kod EAN: 7350041083351
Kod producenta: FD-FAN-VENT-HP12-PWM
Wymiary: 120x120x25mm
Obroty: 1800 obr./min
Przepływ powietrza: 104.3m3/h
Ciśnienie: 2.3mmH2O
Głośność: 31.7dB(A)
Łożysko wentylatora: hydrodynamiczny łożysko ślizgowe (FDB)
Złącze: 4-Pin PWM
Zakres napięcia: 6-12V
Pobór mocy 1.0W
Cechy dodatkowe produktu: amortyzator wibracji

Fractal Design Venturi HP-12 PWM. Odpowiedni dla: Obudowa komputera, Model: wentylator, Średnica wentylatora: 12 cm. Kolor produktu: Czarny, Szary, Długość kabla: 0,5 m. Zasilanie: 1 W, Maksymalne natężenie prądu: 0,2 A. Szerokość produktu: 12 cm, Długość urządzenia: 12 cm, Wysokość urządzenia: 2,5 cm. Typ chłodzenia piwa: FDB
