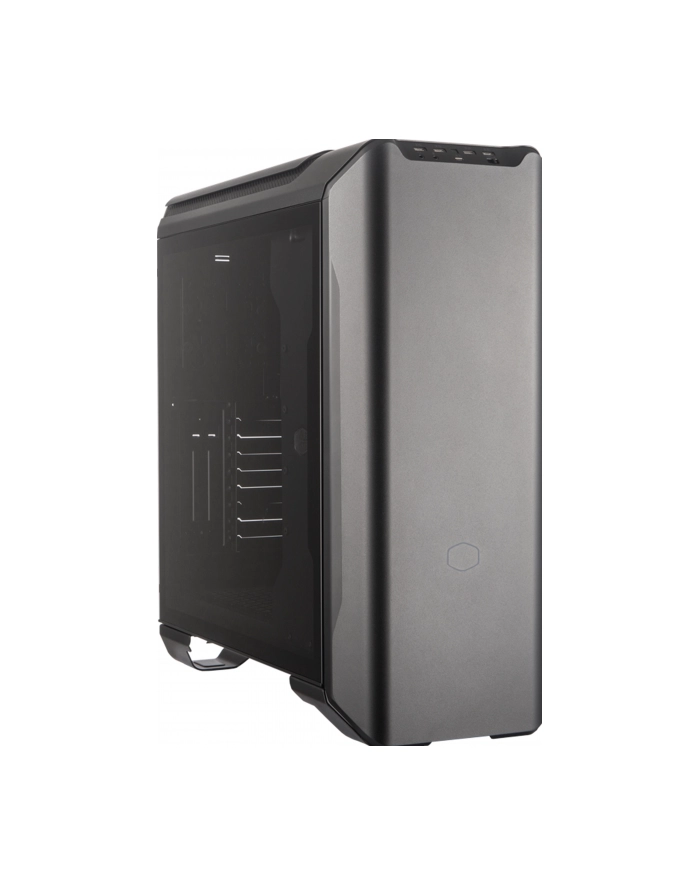

Cooler Master MasterCase SL600M Black Edition, tower case (black, Tempered Glass)

MASTERCASE SL600M BLACK EDITION - GOING DARK Powder-Coated Aluminum Panels Vertical Layout & Chimney Effect Acoustic Noise Reduction Operational Noise Reduction Rotatable PCI Bracket Versatile Storage Brackets Proximity Lighting & I/O Panel Adjustable Top Ventilation THE SL, GOING DARKThe MasterCase SL600M Black Edition celebrates the dark side of hte SL Series - the side that gets irked by business casual attire and the hum of fluorescent office lighting. It prefers the comfort of shadowy corners, lit only by RGB from the latest gaming hardware.Technology between the two SL models may be identical, bud the Black Edition marks aspecific rite of passage for the series: exaclty 1 year of stellar reviews and awards. What was once just a novel idea is now an intensively tested and proven method of cooling and noise reduction.Of course, the original Work/Play concept is as valid as it ever was, but the MasterCase SL600M Black Edition much prefers the latter. POWDER-COATED ALUMINUM PANELSBetter suited to its covert personality, a jet-black powder coat embellishes the aluminum panels and internal layout. VERTICAL LAYOUT & CHIMNEY EFFECTFresh, cool air is taken from the bottom of the case, assisting the natural rise of hot air out of the top of the case for proficient thermal performance. ACOUSTIC NOISE REDUCTIONSince the path of airflow is from bottom to top, the front and rear panels of the case act as a shield against noise. From the front, noise is shielded from escaping toward the user, while the rear panel prevents noise from bouncing off neighboring walls, minimizing acoustics. OPERATIONAL NOISE REDUCTIONNoise is further reduced by large, low RPM fans in comparison to smaller, conventional fans. With efficient case cooling, there is an increased potential for system fans to operate quieter in turn. For maximized noise reduction, the dual 200mm fans can be set to their lowest RPM setting via the I/O Panel. ROTATABLE PCI BRACKETThe entire window of the PCI Bracket is rotatable. This allows the unique option of mounting multiple graphics cards vertically and with more clearance away from the glass side panel, increasing the amount of air available to vertical graphics card(s). *riser cable sold separately VERSATILE STORAGE BRACKETSThe SL600M features versatile brackets that can mount an SSD, HDD, or a pump/reservoir for liquid cooling. Brackets can be placed in multiple positions inside the case, including the bottom radiator bracket and behind the front panel. PROXIMITY LIGHTING & I/O PANELA proximity sensor triggers the USB lighting for easy access in the dark. The panel will stay temporarily lit before turning off automatically. Furthermore, the I/O Panel features a USB 3.1 (Gen 2) Type-C port, four additional USB ports, a PWM fan speed slider, a headset jack (audio + mic), and a dedicated microphone jack. ADJUSTABLE TOP VENTILATIONThe aluminum top panel can be adjusted to 3 different positions. The panel can either stay flush against the mesh, raised, or completely removed. TECHNICAL SPECIFICATIONS Model Number MCM-SL600M-KGNN-S00 Series MasterCase Series Size Mid Tower Color Black Materials Steel, Aluminum, Tempered Glass Dimension (L x W x H) 544 x 242 x 573mm Motherboard Support Mini ITX, Micro ATX, ATX, E-ATX*, (*E-ATX support for up to 12" x 10.7", will limit cable management features) Expanstin slots 9+2 (Supports vertical graphics card installation) 5.25" Drive Bays 0 2.5"/3.5" Drive Bays (Combo) 4 Drive Bays - SSD 4 I/O Panel 1x USB 3.1 (Gen 2) Type-C port2x USB 3.02x USB 2.0PWM fan speed sliderheadset jack (audio + mic) + dedicated microphone jack

Zewnętrzne: brak
Wewnętrzne: 4x 2.5"/3.5", 4x 2.5"
Wyjścia/wejścia z przodu: 1x USB-C 3.1 (20-Pin Key-A Header), 2x USB-A 3.0, 2x USB-A 2.0, 1x słuchawki/?mikrofon, 1x mikrofon
Gniazda PCI: 11 (2x Riser Card)
wentylatory (przód): brak
wentylatory (tył): brak
wentylatory (lewo): brak
wentylatory (prawo): brak
wentylatory (na górze): 3x 120mm (opcjonalnie) lub 2x 140mm (opcjonalnie) lub 2x 200mm (opcjonalnie)
wentylatory (na dole): 2x 200mm, 400-800 obr./?min lub 3x 120mm (opcjonalnie) lub 2x 140mm (opcjonalnie)
wentylatory (inne): brak
Rozmiary radiatora: brak przód, 120/?140/?240/?280/?360mm na górze, 120/?140/?240/?280/?360mm na dole
płyta główna: ATX (szerokość 272mm)
Obsługiwane płyty główne: mini-ITX (6.7"x6.7")/µATX (9.6"x9.6")/ATX (12"x9.6")/E-ATX(12"x10.7")
Zasilacz: ATX (max. 200 mm głębokości)
Umieszczenie zasilacza: przód
Chłodzenie CPU: do wysokości 191mm
Karty graficzne: do max. 318mm (412mm bez HDD-klatka)
Kolor: czarny, wewnątrz czarny
Wymiary (SxWxG): 242x573x544mm
Pojemność: 75.43l
Waga: 13.40kg
Cechy dodatkowe: obudowa aluminiowa, Zarządzanie przewodami, filtr przeciwkurzowy, zintegrowane sterowanie wentylatora, w tym oświetlenie LED RGB, gniazd PCI montowane w pionie, okienko ze szkła, czujnik zbliżeniowy
Uwaga: Płyty główne o wymiarach E-ATX (305x330mm lub 12"x13") nie są w pełni obsługiwane.
Notacja USB: Link


Cooler Master SL600M, MasterCase. Rozmiar układu: Midi Wieża, Model: PC, Materiały: Aluminium, Stal, Szkło hartowane. Lokalizacja zasilania: Przedni, Obsługa zasilania z czynników: ATX. Złącze wentylatora: 4-pin. Obsługiwana średnica wentylatorów górnych: 120,140,200 mm, Zainstalowane wentylatory dolne: 2x 200 mm, Obsługiwana średnica wentylatorów dolnych: 120,140,200 mm. Obsługuje rozmiary napędu dysku twardego: 2.5,3.5"
