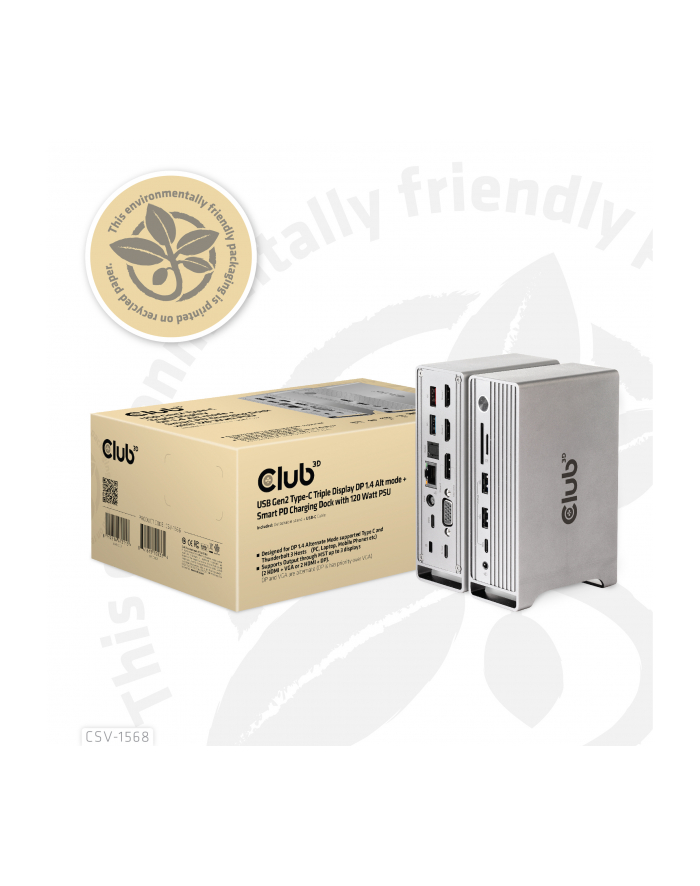

club 3d Stacja dokująca Club3D CSV-1568 (USB Gen2 Type-C Triple Display DP Alt mode + Displaylink™ Dynamic PD Charging Dock with 120 Watt PS)

Accessory type:Docking Stations and ReplicatorsUSB Gen2 Type-C Triple Display DP Alt mode Displaylink Dynamic PD Charging Dock with 120 Watt PSThe Club 3D CSV-1568 USB Gen2 Type-C Triple Display DP™ Alt mode + Smart PD Charging Dock with 120 Watt PSU, is an integrated solution combining Video, Data, Power, Ethernet and Audio. It has 4 videos (output 3 videos simultaneously under MST mode) for video transmission, 4 USB data ports (2 USB-A 10G, 1 Type-C 10G, 1 USB-A 5G)for data transmission, 1 USB-A smart charging port for quick charging, 1 Gigabit Ethernet for super fast Ethernet, 2 audio ports (3.5mm audio, Toslink) for enjoying music. Besides, this dock is equipped with dual power jack (Type-C PD Charging or 120W DC power supply).It supports all DP Alt mode1.4/1.2 supported Type-C and ThunderboltT™ 3 host (PC, Laptop, Mobile phone, etc.) under Windows and under MacOSX based on Intel you will only get limited SST Function or Single display Only.Designed for DP 1.4 Alternate Mode supported Type C and Thunderbolt 3 Hosts (PC, Laptop, Mobile Phones etc)Supports Output through MST up to 3 displays (2 HDMI + VGA or 2 HDMI + DP). DP and VGA are alternate (DP is has priority over VGA)When 3 Displays are connected - 16.2Gbps bandwidth will be sharedSingle Display Support - HDMI max 4K60Hz, DP Max 4K60Hz, VGA max 1920*1200 60HzDP and HDMI support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2DP and HDMI support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2DP and HDMI support deep color 8/10 bitDP and HDMI support HDRDP and HDMI support HDCP2.2&1.4DisplayPort supports DP++ which enables to connect a passive DP to HDMI port to connect HDMI displaySupport Gigabit Ethernet 10/100/1000MSupport USB3.2 Gen2 with max 10Gbps data transferSupport smart chargingSupport Digital audio with max 96KHz/24bit sampling rateSupport dual power supplies: Type-C PD charging or DC JackType-C female supports max 100W PD Charging with fast role swap of PD3.0, support smart power which allows to distribute power according to actual consumption of the connected devicesMax 120W power supply from DC Adapter, support smart power according to actual consumption of the connected devices, the host can get power ranging from 60W to 100W TECHNICAL SPECIFICATIONS Available InterfacesUpstream:- 1x USB Gen2 Type-C Female for connecting to HostDownstream:- 1x USB Gen2 Type-C Female (data)- 2x USB Gen2 Type-A Female- 1x USB Gen1 Type-A Female- 1x USB Type-A (RED) Smart Charging port 5V/2.4A Max.- 2x HDMI™ Female (DP Alt Mode)- 1x DP™ Female (DP Alt Mode)- 1x VGA Female- 1x RJ45- 1x 3.5 mm Phone Socket (Microphone and headphone)- 1x Toslink- 1x AntiTheft Lock- 1x DC Power 20.5V can be alternate to the USB C PD Max 100W- 1x USB C (PD Max 100W) OS Support- Windows 10- Mac OSX Supports SST mode Only (Intel Based systems) In the box- CSV-1568 Docking Station- PowerSupply Input:100-110/240VAC, Output: up to 120W- USB Gen2 Type-C cable 10G, 20V5A M/M, 1 m / 3.28 ft- Detachable stand- Quick Install Guide Other info- Box size: 22.5 x 15.5 x 9.7 cm / 8.86 x 6.1 x 3.82qqq1qqq1- Device size: 13.9 x 9 x 4.4 cm / 5.47 x 3.54 x 1.73qqq1qqq1- USB host Cable length approx.: 1m / 3.28 ft- Device Weight: 563 gr / 19.86 oz- Stand Weight: 19 gr / 0.67 oz- USB Cable Weight: 44 gr / 1.55 oz- Powersupply weight: depending on power plug ? 560 gr / 19.75 oz- Box Weight: 168 gr / 5.93 oz- LDPE Bag Weight: 5 gr / 0.18 oz- Total Weight: ? 1359 gr / 47.94 oz- Meets ROHS, FCC, and CE EMI requirements In case of technical questions, you can contact the official support of the Club 3D manufacturer by email: support@club-3d.com. Support works mainly in English, but you can also write a question in Czech and the manufacturer will handle it. The manufacturer will respond within 24 hours. It is also possible to visit the discussion at the link: https://insights.club-3d.com/. Where you can also find useful information on using Club 3D products.

CLUB3D CSV-1568. Technologia łączności: Dokujący, Interfejs hosta: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, Wtyk słuchawek: 3,5 mm. Kolor produktu: Metaliczny, Maksymalna częstotliwość odświeżania: 60 Hz, Kraj pochodzenia: Chiny. Maksymalne zużycie mocy: 120 W. Funkcje regulowane: In the box: • CSV-1568 Docking Station • PowerSupply Input:100-110/240VAC, Output: up to 120W...
