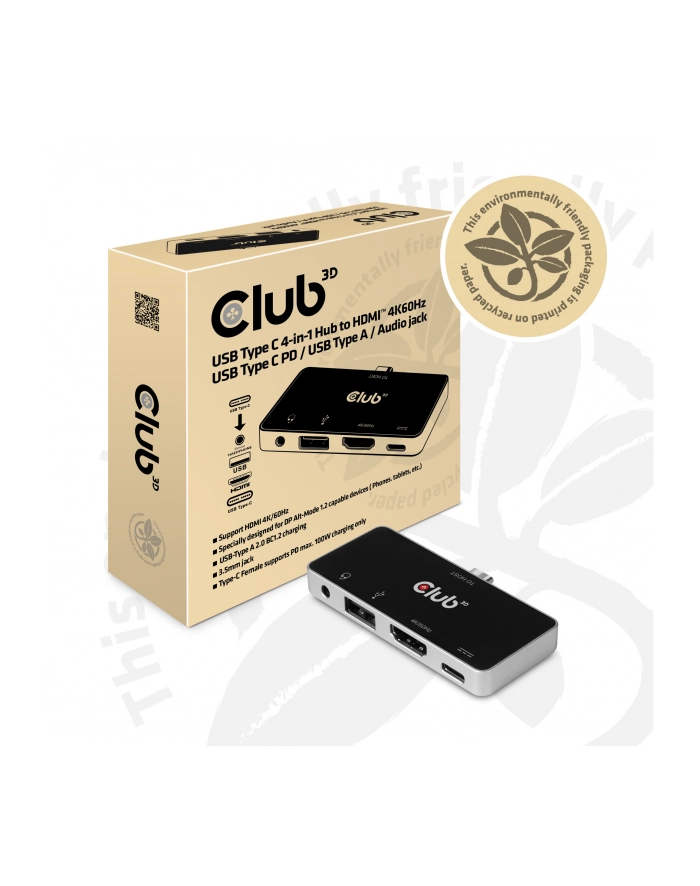

club 3d Hub Club3D CSV-1591 (4-in-1 USB Type-C hub with HDMI USB Type-A 20 35mm audio and USB Type-C PD charging)

Accessory type:Docking Stations and ReplicatorsUSB Type C 4-in-1 Hub to HDMI™ 4K60Hz USB Type C PD / USB Type A / Audio jackCSV-1591 - The Club 3D Hub is a 4-in-1 USB Type-C hub with HDMI™, USB Type-A 2.0, 3.5mm audio and USB Type-C PD charging, the design perfectly suits all DP Alt-mode capable devices. With this hub, you can enjoy ultra high definition video of your host on big screen, enjoy fantastic music, transmit USB 2.0 data and connect USB Type-C PD Adapter to charge the host.This hub can work on all USB Type-C and Thunderbolt™ 3 hosts that supports DP Alt mode. When working on Thunderbolt™ 3 host, this product transmits DP signal.TECHNICAL SPECIFICATIONS Product NameUSB Type C 4-in-1 Hub to HDMI™ 4K60Hz USB Type C PD / USB Type A / Audio jack Product SeriesDocking Station Item codeCSV-1591 EAN code8719214471453 UPC code841615101634 Features• Upstream:1x USB Type-C Male (Connection to host) Support DP1.2 Alt mode, with bandwidth max 5.4 Gbps per lane, 4 lanes 21.6Gbps• Downstream:1x HDMI™ FemaleSupport HDMI™ max 4K/60Hz 4:4:4 8bit with 18Gbps BandwidthSupport 6/8/10/12 bit color depth outputSupport output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2Support HDCP 2.2 & HDCP1.4Support HDR1x USB Type A 2.0, Max 480Mbps bandwidth• Support BC 1.2 with max 7.5W(5V@1.5A) downstream charging• 1x 3.5mm combo audio*Support 48K/44.1KHz sampling rate Audio output* Note: Audio can be output from HDMI or 3.5mm audio port, below explanation illustrates the priority of audio output when both HDMI and 3.5mm audio ports are connected.• When source device is connected to this product prior to sink devices, audio outputs from the port that is connected last.• When sink devices are connected prior to source device connection, audio outputs from 3.5mm audio port OS SupportAll In the boxCSV-1591, 4-in-1 HubQuick Install Guide AVAILABLE INTERFACES Upstream1x USB Type C Male(Host connection) Downstream1x HDMI™ 4K60Hz Female for connecting to Monitor1x USB type A, BC1.2 charging1x USB Type-C Female, PD Charging only1x.3.5mm combo audioOther InfoBox size: 10 x 10 x 3 cmBox size: 3.93 x 3.93 x 1.18 inchDevice size: 7.2 x 3.2 x 0.9 cmDevice size: 2.83 x 1.26 x 0.9 x 0.35 inchDevice Weight: 35 gr / 1.23 ozLDPE Bag Weight: 5 gr / 0.17 ozBox Weight: 65 gr / 2.3 ozTotal Weight: 105 gr / 3.7 ozMeets ROHS, FCC, and CE EMI requirements In case of technical questions, you can contact the official support of the Club 3D manufacturer by email: support@club-3d.com. Support works mainly in English, but you can also write a question in Czech and the manufacturer will handle it. The manufacturer will respond within 24 hours. It is also possible to visit the discussion at the link: https://insights.club-3d.com/. Where you can also find useful information on using Club 3D products.

CLUB3D csv-1591. Technologia łączności: Dokujący, Interfejs hosta: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, Maksymalne zasilanie USB: 100 W. Kolor produktu: Czarny, Chrom, Typ HD: 4K Ultra HD, Maksymalna rodzielczość cyfrowa: 3840 x 2160 px. Rodzaj zasilania: USB, Złącze zasilania: USB Type-C, Zasilanie: 100 W. Certyfikat środowiskowy (zrównoważonego rozwoju): RoHS. Szerokość produktu: 72 mm, Głębokość produktu: 32 mm, Wysokość produktu: 9 mm
