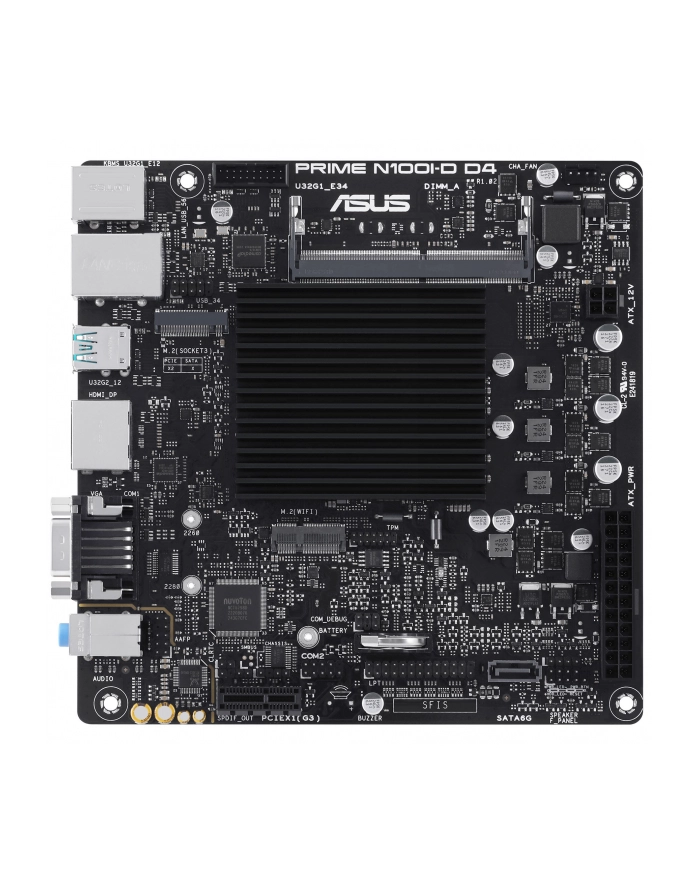

ASUS PRIME N100I-D D4 NA (zintegrowany procesor) mini ITX

Format:Mini-ITX; Chipset:Intel; Socket:Integrated processor; Motherboard memory module type:SODIMM DDR4; RAID support:No; PCI express 16x:0; LPT port; COM portASUS PRIME N100I-D D4-CSMLow-power, fan-less motherboard for Intel Processor N100, with PCIe 3.0, DisplayPort/HDMI™/VGA, USB 3.2 Gen 2 port, M.2 WIFI slot, SATA 6 Gbps, LPT header, COM Port, COM Header, Q-LED CoreUltrafast Connectivity: PCIe 3.0 x1 slot, 16Gbps M.2 support, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 and 1Gb EthernetBetter serviceability: COM debug header to facilitate building and support processesASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protectionCPUOnboard Intel Processor N100Supports Intel Turbo Boost Technology 2.0Memory1 x SO-DIMM, Max. 16GB, DDR4 3200/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory** We recommend that you use 16GB or less memory module.* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/Graphics1 x DisplayPort**1 x VGA port1 x HDMITM port*** *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.**Supports max. 4K@60Hz as specified in DisplayPort 1.4.***Supports 4K@60Hz as specified in HDMITM 2.1.Expansion Slots1 x PCIe 3.0 x1 slot- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.StorageTotal supports 1 x M.2 slot and 1 x SATA 6Gb/s port1 x M.2 Socket 3 with M key, type 2260/2280 (supports PCIe 3.0 x 2 mode)1 x SATA 6Gb/s portEthernet1 x Realtek 1Gb EthernetASUS LANGuardWireless & BluetoothM.2 slot only (Key E, CNVi & PCIe)** Wi-Fi module is sold separately.USBRear USB (Total 6 ports)2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)*2 x USB 2.0 ports (2 x Type-A)Front USB (Total 4 ports)1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports*1 x USB 2.0 header supports 2 additional USB 2.0 ports* U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth.AudioRealtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-Recording, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackqqq1qqq1Audio Features- Audio Shielding- Premium audio capacitors* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.Back Panel I/O Ports2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x VGA port1 x HDMITM Port1 x COM port1 x Realtek 1Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard/Mouse combo portInternal I/O ConnectorsFan and cooling related1 x 4-pin Chassis Fan headerPower related1 x 24-pin Main Power connector1 x 4-pin +12V Power connectorStorage related1 x M.2 slot (Key M)1 x SATA 6Gb/s portUSB1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports1 x USB 2.0 header supports 2 additional USB 2.0 portsMiscellaneous1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x M.2 slot (Key E)1 x Chassis Intrude header1 x LPT header1 x S/PDIF out header1 x SPI TPM header (14-1pin)1 x Speaker Header1 x System Panel connectorSpecial FeaturesProven Quality- ESD Guards- LANGuard- Overvoltage Protection- Stainless-Steel Back I/OASUS Q-Design- Q-LED CoreASUS Thermal Solution- CPU heatsink designSoftware FeaturesASUS Exclusive SoftwareASUS CPU-ZNorton 360 Deluxe (60 Days Free Trial)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3BIOS128 Mb Flash ROM, UEFI AMI BIOSManageabilityWOL by PME, PXEAccessoriesCables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x Screw package for M.2 SSD1 x Screw package for M.2 Key EDocumentation1 x User guide1 x ACC Express Activation Key CardOperating SystemWindows 11(Version 22qqq1H2 and later), Windows 10 64-bitForm FactorMini-ITX Form Factor 17cm x 17cm

ASUS PRIME N100I-D D4. Producent procesora: Intel, Gniazdo procesora: NA (zintegrowany procesor), Procesor: Intel Processor N. Obsługiwane rodzaje pamięci: DDR4-SDRAM, Maksymalna pojemność pamięci: 16 GB, Typ slotów pamięci: SO-DIMM. Wspierane interfejsy dysków twardych: M.2, SATA III, Obsługiwane rodzaje dysków: HDD & SSD. Rodzaj interfejsu sieci Ethernet: Gigabit Ethernet. Przeznaczenie: PC, Rodzaj płyty: mini ITX, Rodzina płyt z chipsetami: Intel
