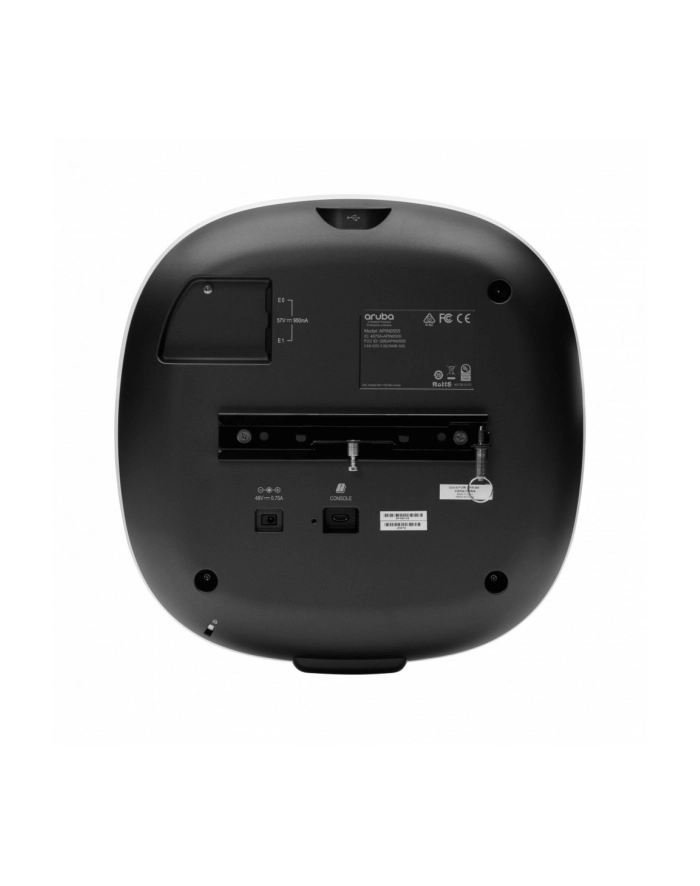

hewlett packard enterprise ARUBA AP-615 (RW) Campus AP R7J49A

Aruba AP-615 (RW) Dual-radio Tri-band 2x2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP Aruba 610 Series Campus Access Points Fast, Resilient, and Secure Wi-Fi 6E Connectivity in a Compact and Affordable Platform For enterprises who need more wireless capacity and/or wider channels, Aruba 610 Series Campus APs are designed to take advantage of the newly available 6 GHz spectrum using a unique dual-radio/tri-band architecture. Adding support for the 6 GHz band to the traditional 2.4 GHz and 5 GHz bands more than doubles the available wireless capacity in a wireless network - so you can meet growing demand due to bandwidth-hungry video, increasing numbers of client and IoT devices, and growth in cloud. Unique to Aruba, the 610 Series features two radios that can be tuned to any two of the three available spectrum bands for Wi-Fi (2.4 GHz, 5 GHz, 6 GHz). This flexibility provides a cost-effective and compact platform that delivers full tri-band coverage as part of a multi-AP deployment and can be used with software that will intelligently and flexibly configure the radios of each of these dual-radio APs. Key Features Unlocks the 6 GHz band to more than double the available capacity in wireless networks Comprehensive dual radio/tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz to deliver up to 3.6 Gbps combined peak data rate1 Compact and low power consumption - virtually unrestricted operation from an 802.3af (class 3) PoE source2 Up to seven 160 MHz channels in 6 GHz to support low-latency, bandwidth-hungry applications like high-definition video, and augmented reality/virtual reality applications 2.5 Gbps Smart Rate Ethernet port to minimize wired bottlenecks Built-in GPS receivers and fine time measurement (802.11mc) to enable APs to automatically locate themselves and serve as reference points for accurate indoor location measurements Notes: ­ 1When configured for 5 GHz + 6 GHz operation ­ 2By default (with IPM disabled) the AP-615 will disable the USB port and limit the speed of the Ethernet port to 1Gbps when on class 3 POE. The Intelligent Power Monitoring feature can be used to avoid these restrictions Standard Features More Capacity and Wider Channels The Aruba 610 Series APs are designed to take advantage of Wi-Fi 6E and the 6 GHz band, which translates into far greater speeds, wider channels for multi-gigabit traffic, and less interference. Its two 2x2 MIMO radios deliver a combined peak data rate of up to 3.6 Gbps when configured for concurrent 5 GHz and 6 GHz operation. Advantages of 6 GHz Wi-Fi 6E provides up to 1200 MHz of additional unlicensed spectrum in the 6 GHz band for higher throughput and improved application performance. With up to seven 160 MHz channels, Wi-Fi 6E can better support low-latency, bandwidth hungry applications like high-definition video and augmented reality/virtual reality applications. Only Wi-Fi 6E capable devices can use the 6 GHz band so there is no interference or slowdowns due to legacy devices. Device Class Support The Aruba 610 Series APs are part of the low power indoor (LPI) device class. This fixed indoor-only class uses lower power levels and does not require an Automated Frequency Coordination service (AFC) to manage incumbent outdoor services, which is required for standard class APs. Global Readiness While the need for more Wi-Fi capacity is recognized across the globe, countries are approaching the 6 GHz band differently. The 610 Series APs are set up to automatically update regulatory rules once Wi-Fi 6E regulations have been approved and certified. Extend the Benefits of Wi-Fi 6 The Aruba 610 Series APs are based on the 802.11ax (Wi-Fi 6) standard, which means that all its efficiency and security enhancements are also available on the 6 GHz band. Wi-Fi 6 features such as Orthogonal Frequency Division Multiple Access (OFDMA), BSS coloring etc. are fully supported on the Aruba Wi-Fi 6E access points as well. Advantages of OFDMA The Aruba 610 Series is equipped with OFDMA to handle multiple 802.11ax capable clients on each channel simultaneously, regardless of device or traffic type. Channel utilization is optimized by handling each transaction via smaller sub-carriers or resource units (RUs), which means that clients are sharing a channel and not competing for airtime and bandwidth. Wi-Fi Optimization Client Optimization Aruba's patented AI-powered technology eliminates sticky client issues by steering a client to the AP where it receives the best radio signal. ClientMatch steers traffic from the noisy 2.4 GHz band to the preferred 5 GHz or 6 GHz band depending on client capabilities and AP setttings. ClientMatch also dynamically steers traffic to load balance APs to improve the user experience. Automated Wi-Fi Radio Frequency Management To optimize the user experience and provide greater stability, Aruba AirMatch allows organizations to automate network optimization using machine learning. AirMatch provides dynamic bandwidth adjustments to support changing device density, enhanced roaming using an even distribution of Effective Isotropic Radiated Power (EIRP) to radios, and real-time channel assignments to mitigate co-channel interference. AirMatch also ensures that the two radios of Aruba 610 Series Access Points are automatically configured in the most effective and efficient way to deliver full tri-band coverage. Application Assurance With Aruba Air Slice, organizations can provide application assurance to their users that goes beyond the traditional capabilities of airtime fairness. After the SLAs are configured, Air Slice monitors network usage, automatically allocates radio resources, and dynamically adjusts radio resources as new users connect and applications sessions begin or end. Aruba Advanced Cellular Coexistence (ACC) Unique to Aruba, Advanced Cellular Coexistence uses built-in filtering to automatically minimize the impact of interference from cellular networks, distributed antenna systems (DAS), and commercial small cell or femtocell equipment. Intelligent Power Monitoring (IPM) For better insights into energy consumption, Aruba APs continuously monitor and report hardware energy usage. Unlike other vendor's access points, Aruba APs can also be configured to enable or disable capabilities based on available PoE power - ideal when wired switches have exhausted their power budget. Enterprises can deploy Wi-Fi 6E APs and update switching and power at a later if needed based on their actual usage. Self-Locating APs Indoor location shouldn't require guesswork or costly overlay technologies. Aruba's Wi-Fi 6 and 6E APs help organizations leverage their wireless investment to deliver indoor location - everywhere. Aruba 610 Series Campus APs include built-in GPS receivers and intelligent software to allow them to automatically locate themselves accurately within the universal framework of latitude and longitude. As part of Aruba's indoor location services solution, they serve as reference points for client devices using fine time measurements (802.11mc) and other location technologies. In addition, Aruba's Wi-Fi 6 and 6E APs support Open Locate, an emerging standard that allows APs to share their location over the air and through cloud-based APIs, enabling mobile devices to locate themselves and applications to support network analytics. APs as an IoT transport platform The Aruba 610 Series includes an integrated Bluetooth 5 and 802.15.4 radio for Zigbee support to simplify deploying and managing IoT-based location services, asset tracking services, security solutions, and IoT sensors. There is also a USB-port extension to provide IoT connectivity to a wider range of devices. These IoT capabilities allows organizations to leverage Aruba APs as an IoT transport platform, which eliminates the need for an overlay infrastructure and additional IT resources and can accelerate IoT initiatives. In addition, Target Wake Time (TWT), part of the 802.11ax standard, establishes a schedule for when clients need to communicate with an AP. This helps improve client power savings and reduces airtime contention with other clients, which is ideal for IoT. Aruba secure infrastructure The Aruba 610 Series includes build-security capabilities such as: WPA3 and Enhanced Open Support for stronger encryption and authentication is provided via the latest version of WPA for enterprise-protected networks. Enhanced Open offers seamless new protection for users connecting to open networks where each session is automatically encrypted to protect user passwords and data on guest networks. WPA2-MPSK MPSK enables simpler passkey management for WPA2 devices - should the Wi-Fi password on one device or device type change, no additional changes are needed for other devices. This capability requires Aruba ClearPass Policy Manager. Simple and Secure Access To improve security and ease of management, IT can centrally configure and automatically enforce role-based policies that define proper access privileges for employees, guests, contractors, and other user groups - no matter where users connect on wired and WLANs. Dynamic Segmentation eliminates the time consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic secure and separated. Seamless Handoffs to Cellular Built on the technical foundations of Passpoint® and Wi-Fi Calling, Aruba Air Pass creates a roaming network across the Aruba enterprise customer footprint, extending cellular coverage and enhancing the visitor and subscriber experience to deliver a great experience for your guests while reducing costs and management overhead for DAS. Flexible Operation and Management Our APs can operate as standalone access points or with a gateway for greater scalability, security, and manageability. APs can be deployed using zero touch provisioning - without on-site technical expertise - for ease of implementation in branch offices and for remote work. Aruba APs can be managed using cloud-based or on-premises solutions for any campus, branch, or remote work environment. As the management and orchestration console for Aruba ESP (Edge Services Platform), Aruba Central provides a single pane of glass for overseeing every aspect of wired and wireless LANs, WANs, and VPNs. AI-powered analytics, end-to-end orchestration and automation, and advanced security features are built natively into the solution. Summary Aruba 610 Series Access Points are designed to take advantage of the 6 GHz band using two radios that can deliver comprehensive tri-band coverage in a multi-AP environment and better meet the growing demands of Wi-Fi due to increased use of video, growth in client and IoT devices, and expanded use of cloud. With a 3.6 Gbps combined peak data rate for higher throughput and faster speeds for indoor use, the Aruba 610 Series delivers a cost-effective enterprise Wi-Fi 6E solution with increased capacity, wider channels, reduced power consumption. BTO Models 615 Internal Antenna Access Points Rule # Description SKU Aruba AP-615 (EG) Dual-radio Tri-band 2x2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP R7J46A Aruba AP-615 (IL) Dual-radio Tri-band 2x2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP R7J47A Aruba AP-615 (JP) Dual-radio Tri-band 2x2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP R7J48A Aruba AP-615 (RW) Dual-radio Tri-band 2x2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP R7J49A Aruba AP-615 (US) Dual-radio Tri-band 2x2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP R7J50A 615 Internal Antenna Access Points - TAA Models Rule # Description SKU Aruba AP-615 (EG) TAA Dual-radio Tri-band 2x2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP R7J51A Aruba AP-615 (IL) TAA Dual-radio Tri-band 2x2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP R7J52A Aruba AP-615 (JP) TAA Dual-radio Tri-band 2x2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP R7J53A Aruba AP-615 (RW) TAA Dual-radio Tri-band 2x2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP R7J54A Aruba AP-615 (US) TAA Dual-radio Tri-band 2x2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP R7J55A Notes: ­ Add Mount Kit ­ OCA Only Model Selection Form - HPE Offering > Aruba > Wireless > Access Points > Campus: Aruba 610 Series Campus Access Points Mount Accessories AP Mount Kits Rule # Description SKU AP-MNT-A Campus AP mount bracket kit (individual) type A: suspended ceiling rail flat 9/16 R3J15A 1 HPE Aruba Networking AP-MNT-MP10-A Campus AP 10-Pack 9/16 Flat Ceiling Rail Mount Bracket Kit JZ370A AP-MNT-B Campus AP mount bracket kit (individual) type B: suspended ceiling rail flat 15/16 R3J16A 1 HPE Aruba Networking AP-MNT-MP10-B Campus AP 10-Pack 15/16 Flat Ceiling Rail Mount Bracket Kit Q9G69A 1 HPE Aruba Networking AP-MNT-MP10-B1 Campus AP 10-Pack 15/16 Adj Flat Ceiling Rail Mount Bracket Kit R6T34A AP-MNT-C Campus AP mount bracket kit (individual) type C: suspended ceiling rail profile 9/16 R3J17A 1 HPE Aruba Networking AP-MNT-MP10-C Campus AP 10-Pack Profile 9/16 Ceiling Rail Mount Bracket Kit Q9G70A AP-MNT-D Campus AP mount bracket kit (individual) type D: solid surface R3J18A 1 HPE Aruba Networking AP-MNT-MP10-E Campus AP 10-Pack Wall-box Mount Bracket Kit Q9G71A AP-MNT-E Campus AP mount bracket kit (individual) type E: wall-box R3J19A 1 HPE Aruba Networking AP-MNT-MP10-E Campus AP 10-Pack Wall-box Mount Bracket Kit R1C72A 1 HPE Aruba Networking AP-MNT-MP10-U Campus AP Universal Mount Bracket Kit (10-pack) S0J40A 1 AP-MNT-MP10-X Campus AP mount adapter kit (10-pack) R3T20A Configuration Rules Rule # Description 1 OCA Display Notes: Kit contains mounts for 10 access points Notes: Clic Warning: Access Points do not include a Mount. Qty 1 Mount kits should be selected. Power Options Power Options Rule # Description SKU 1 AP-AC2-12B 12V/48W AC/DC desktop style power adapter with 2.1/5.5mm connector R3K00A Add AC power cord 1 AP-POE-AFGE 1-Port GbE 802.3af 15.4W midspan injector R6P68A Add AC power cord USB port disabled (when IPM disabled) 1 AP-POE-ATSR 1-Port Smart Rate 802.3at 30W midspan injector R6P67A Add AC power cord Configuration Rules Rule # Description 1 If this Power Supply is selected, bring in (Min 1 // Max 1) Localized power cord based on the Aruba Wireless Power Cord Table Menu Notes: OCA Display Notes: Most devices are PoE powered from switch so these are optional Accessories Snap-on Covers Rule # Description SKU Aruba AP-615-CVR-20 20-pack White Non-glossy Snap-on Covers for AP-615 R7J56A Notes: Kit contains covers for 20 access points Configuration Rules Rule # Description Notes: OCA Display Notes: Kit contains 20 optional snap-on covers Other Accessories Rule # Description SKU Aruba AP-CBL-EXT10 10-pack CAT6A Ethernet Extension Cables R8L34A 10-pack Extension Cables AP-CBL-SERU Micro-USB TTL3.3V to USB2.0 AP Console Adapter Cable JY728A Drivers available on the Aruba Support Center AP-MOD-SERU Micro-USB TTL3.3V to RJ45 RS232 AP Console Adapter Module R6Q99A Aruba AP-USB-ZB External USB based Dongle with Zigbee and BLE for AP R2X45A Single USB dongle Aruba AP-USB-ZB 10-pk External USB based Dongle with Zigbee and BLE for AP R2Y09A 10-pack USB dongle Aruba AP-USB-ZB 50-pk External USB based Dongle with Zigbee and BLE for AP R2Y10A 50-pack USB dongle Aruba USB LTE Modem for use with Access Points and Gateways R8F34A Aruba USB Extender Cable Kit for use with Aruba USB LTE Modem R8G76A Optional extender cable kit for USB LTE Modem Technical Specifications Hardware Variants AP-615: Internal antenna models Wi-Fi Radio Specifications AP type: Indoor, tri-radio, 2.4GHz, 5GHz and 6GHz (dual concurrent) 802.11ax 2x2 MIMO 2.4GHz radio: Two spatial stream Single User (SU) MIMO for up to 574Mbps wireless data rate with 2SS HE40 802.11ax client devices (287Mbps for HE20) 5GHz radio: Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate with 2SS HE80 802.11ax client devices 6GHz radio: Two spatial stream Single User (SU) MIMO for up to 2.4Gbps wireless data rate with 2SS HE160 802.11ax client devices Up to 512 associated client devices per radio, and up to 16 BSSIDs per radio (limited to 4 for the 6GHz radio) Supported frequency bands (country-specific restrictions apply)3: - 2.400 to 2.4835GHz ISM - 5.150 to 5.250GHz U-NII-1 - 5.250 to 5.350GHz U-NII-2A - 5.470 to 5.725GHz U-NII-2C - 5.725 to 5.850GHz U-NII-3/ISM - 5.850 to 5.895GHz U-NII-4 - 5.925 to 6.425GHz U-NII-5 - 6.425 to 6.525GHz U-NII-6 - 6.525 to 6.875GHz U-NII-7 - 6.875 to 7.125GHz U-NII-8 Notes: 3When configured for concurrent operation in 5GHz and 6GHz (only), the U-NII-5 band will be disabled. Available bands and channels: Dependent on configured regulatory domain (country) Dynamic frequency selection (DFS) optimizes the use of available RF spectrum in the 5GHz band Supported radio technologies: 802.11b: Direct-sequence spread-spectrum (DSSS) - 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) - 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 8 resource units Supported modulation types: - 802.11b: BPSK, QPSK, CCK - 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM and 256- QAM (proprietary extension) - 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM (proprietary extension) - 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM 802.11n high-throughput (HT) support: HT20/40 802.11ac very high throughput (VHT) support: VHT20/40/80 802.11ax high efficiency (HE) support: HE20/40/80/160 Supported data rates (Mbps): - 802.11b: 1, 2, 5.5, 11 - 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 - 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM (proprietary extension) - 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80); 1,083 with 1024-QAM (MCS10 and MCS11, proprietary extension) - 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40) - 802.11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80) - 802.11ax (6GHz): 3.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160) 802.11n/ac packet aggregation: A-MPDU, A-MSDU Transmit power: Configurable in increments of 0.5 dBm Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements): Per radio/band (2.4GHz / 5GHz / 6GHz): +21 dBm (18dBm per chain) Notes: Conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain. Advanced Cellular Coexistence (ACC) minimizes the impact of interference from cellular networks Maximum ratio combining (MRC) for improved receiver performance Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance Space-time block coding (STBC) for increased range and improved reception Low-density parity check (LDPC) for high-efficiency error correction and increased throughput Transmit beam-forming (TxBF) for increased signal reliability and range 802.11ax Target Wait Time (TWT) to support low-power client devices 802.11mc Fine Timing Measurement (FTM) for precision distance ranging Wi-Fi Antennas AP-615: Integrated downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 2.8dBi in 2.4GHz, 4.5dBi in 5GHz and 4.5dBi in 6GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 to 40 degrees. - Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 2.0dBi in 2.4GHz, 3.5dBi in 5GHz and 3.4dBi in 6GHz. Other Interfaces and Features E0: Ethernet wired network ports (RJ-45) Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX - 2.5Gbps speed complies with NBase-T and 802.3bz specifications - POE-PD: 48Vdc (nominal) 802.3af/at POE (class 3 or higher) - 802.3az Energy Efficient Ethernet (EEE) DC power interface: 12Vdc (nominal, +/- 5%), accepts 2.1mm/5.5mm center-positive circular plug with 9.5mm length USB 2.0 host interface (Type A connector) - Capable of sourcing up to 1A / 5W to an attached device Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio - BLE: up to 5dBm transmit power (class 1) and -100dBm receive sensitivity (125kbps) - Zigbee: up to 5dBm transmit power and -97dBm receive sensitivity (250kbps) - Integrated omnidirectional antenna with roughly 30 to 40 degrees downtilt and peak gain of 2.6dBi GNSS L1 (1575.42MHz) receiver supporting GPS, Galileo, GLONASS and BeiDou signals - Receive sensitivity: -162dBm (tracking) - Integrated omnidirectional antenna with roughly 30 to 40 degrees downtilt and peak gain of 2.3dBi Advanced IOT Coexistence (AIC) allows concurrent operation of multiple radios in the 2.4GHz band Built-in Trusted Platform Module (TPM) for enhanced security and anti-counterfeiting Visual indicators (four multi-color LEDs): for System (1x) and Radio (3x) status Reset button: factory reset, LED mode control (normal/off) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot Automatic thermal shutdown and recovery function Power Sources and Power Consumption The AP supports direct DC power and Power over Ethernet (POE) on port E0 When both DC and POE power sources are available, DC power takes priority over POE Power sources are sold separately; see the 610 Series Ordering Guide for details When powered by DC or 802.3at (class 4) POE, the AP will operate without restrictions. When powered by 802.3af (class 3) POE with the IPM feature disabled, the AP will disable the USB port. With IPM enabled, the AP will start up in unrestricted mode but may dynamically apply restrictions depending on the available power budget and actual consumption. The feature restrictions and order in which these get applied are configurable. Maximum (worst-case) power consumption (without / with a USB device attached): - DC powered: 12.5W/18.2W. - POE powered: 14.7W/20.9W. - This assumes that up to 5W is supplied to the attached USB device. Maximum (worst-case) power consumption in idle mode:5.6W/11.0W (DC) or 6.9W/12.9W (POE). Maximum (worst-case) power consumption in deep-sleep mode: 1.0W (DC) or 1.8W (POE). POE Source Class 4 (802.3at) Class 3 (802.3af) Power budget 25.5W 13.9W Power mode Unrestricted Restricted USB port Enabled Disabled Ethernet Enabled Enabled MIMO 2x2 2x2 Max RF power reduction 0dB 0dB POE operating modes and default restrictions with IPM disabled Mounting Details A mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the mount kits (sold separately); see the 610 Series Ordering Guide for details. Mechanical Specifications Dimensions/weight (AP-615; unit without mount bracket): - 160mm (W) x 160mm (D) x 39mm (H) - 520g Dimensions/weight (AP-615; shipping): - 212mm (W) x 194mm (D) x 66mm (H) - 800g Environmental Specifications Operating conditions - Temperature: 0C to +50C / +32F to +122F - Relative humidity: 5% to 95% - ETS 300 019 class 3.2 environments - AP is plenum rated for use in air-handling spaces Storage conditions - Temperature: -25C to +55C / +13F to +131F - Relative humidity: 10% to 100% - ETS 300 019 class 1.2 environments Transportation conditions - Temperature: -40C to +70C / -40F to +158F - Relative humidity: up to 95% - ETS 300 019 class 2.3 environments Reliability Mean Time Between Failure (MTBF): 540khrs (62yrs) at +25C operating temperature. Regulatory Compliance FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 60950 IEC/EN 62368-1 EN 60601-1-1, EN60601-1-2 For more country-specific regulatory information and approvals, please see your Aruba representative. Regulatory Model Numbers AP-615 (all models): APIN0615 Certifications UL2043 plenum rating - Wi-Fi Alliance (WFA): Wi-Fi CERTIFIED a, b, g, n, ac - Wi-Fi CERTIFIED 6E (ax, 6GHz) - WPA, WPA2 and WPA3 - Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) - WMM, WMM-PS, Wi-Fi Vantage, W-Fi Agile Multiband - Passpoint (release 2) Bluetooth SIG Zigbee Alliance Ethernet Alliance (POE, PD device, class 4) Warranty Aruba's hardware limited lifetime warranty Minimum Operating System Software Versions ArubaOS and Aruba InstantOS 8.11.0.0 RF Performance Table Band, Rate Maximum Transmit Power (dBm) per Transmit Chain Receiver Sensitivity (dBm) per Receive Chain 2.4GHz, 802.11b 1Mbps 18.0 -95.0 11Mbps 18.0 -87.0 2.4GHz, 802.11g 6Mbps 18.0 -93.0 54Mbps 18.0 -75.0 2.4GHz, 802.11n HT20 MCS0 18.0 -93.0 MCS7 16.0 -74.0 2.4GHz, 802.11ax HE20 MCS0 18.0 -93.0 MCS11 13.0 -62.0 5GHz, 802.11a 6Mbps 18.0 -93.0 54Mbps 16.0 -75.0 5GHz, 802.11n HT20 / HT40 MCS0 18.0 / 18.0 -92.0 / -89.0 MCS7 16.0 / 16.0 -73.0 / -70.0 5GHz, 802.11ac VHT20 / VHT40 / VHT80 MCS0 18.0 / 18.0 / 18.0 -92.0 / -89.0 / -86.0 MCS9 15.0 / 15.0 / 15.0 -67.0 / -64.0 / -61.0 5GHz, 802.11ax HE20 / HE40 / HE80 MCS0 18.0 / 18.0 / 18.0 -91.0 / -89.0 / -86.0 MCS11 13.0 / 13.0 / 13.0 -62.0 / -59.0 / -56.0 6GHz, 802.11ax HE20 / HE40 / HE80 / HE160 MCS0 18.0 / 18.0 / 18.0 / 18.0 -91.0 / -88.0 / -85.0 / -82.0 MCS11 13.0 / 13.0 / 13.0 / 13.0 -62.0 / -59.0 / -56.0 / -53.0
