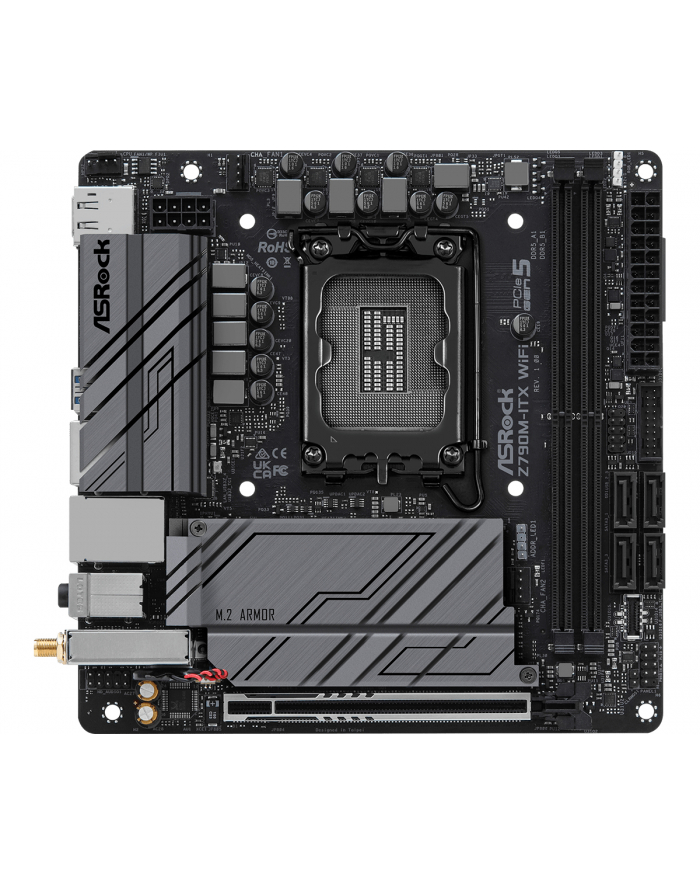

ASROCK Z790M ITX WIFI Socket 1700 mITX DDR5 1xHDI 1xDP

Z790M-ITX WiFi Supports 13th Gen & 12th Gen Intel® Core™ Processors 7+1+1 Phase Power Design, Dr.MOS for VCore+GT 2 x DDR5 DIMMs, supports up to 6800+(OC) 1 PCIe 5.0 x16 Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio 1 Hyper M.2 (PCIe Gen4x4), 1 Hyper M.2 (PCIe Gen4x4 & SATA3), 4 SATA3 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2x2 Type-C (Rear), 4 USB 3.2 Gen2 Type-A (Rear), 2 USB 3.2 Gen1 (Front), 3 USB 2.0 (1 Rear, 2 Front) Intel® 2.5G LAN, Intel® 1G LAN 802.11ax Wi-Fi 6E + Bluetooth Unique Feature Superb Productivity- PCIe Gen5 (Graphic)- Dual Channel DDR5Rock-Solid Durability- 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)Ultrafast Connectivity- 2.5G LAN, 802.11ax Wi-Fi 6E ModuleEZ Update- ASRock Auto Driver Installer CPU - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)- Supports Intel® Hybrid Technology- Supports Intel® Turbo Boost Max 3.0 Technology- Supports Intel® Thermal Velocity Boost (TVB)- Supports Intel® Adaptive Boost Technology (ABT) Chipset - Intel® Z790 Memory - Dual Channel DDR5 Memory Technology- 2 x DDR5 DIMM Slots- Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)*- Max. capacity of system memory: 64GB- Supports Intel® Extreme Memory Profile (XMP) 3.0 *1DPC 1R Up to 6800+ MHz (OC), 5600 MHz Natively.1DPC 2R Up to 5200+ MHz (OC), 5200 MHz Natively. BIOS - 128Mb AMI UEFI Legal BIOS with GUI support Graphics - Intel® Xe Graphics Architecture (Gen 12)- 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)- Nahimic Audio LAN - 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel® I226V)- 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V) Wireless LAN - 802.11ax Wi-Fi 6E Module- Supports IEEE 802.11a/b/g/n/ac/ax- Supports Dual-Band 2x2 with extended 6GHz band support*- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology- Supports Bluetooth + High speed class II- Supports MU-MIMO *Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.A 6GHz compatible router is required for 6E functionality. Slots CPU:- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*Chipset:- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) *Supports PCIe riser cards to extend one x16 slot to two x8 slotsSupports NVMe SSD as boot disks Storage CPU:- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*- 4 x SATA3 6.0 Gb/s Connectors *Supports Intel® Volume Management Device (VMD)Supports NVMe SSD as boot disks RAID - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices* * Requires additional M.2 NVMe expansion cards to support RAID 5 USB - 1 x USB 3.2 Gen2x2 Type-C (Rear)- 1 x USB 3.2 Gen2x2 Type-C (Front)- 4 x USB 3.2 Gen2 Type-A (Rear)- 2 x USB 3.2 Gen1 (Front)- 3 x USB 2.0 (1 Rear, 2 Front) *All USB ports support ESD Protection Connector - 1 x eDP Signal Connector- 1 x RGB LED Header*- 1 x Addressable LED Header**- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***- 2 x Chassis Fan Connectors (4-pin)****- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)- 1 x Front Panel Audio Connector- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)***** *Supports in total up to 12V/3A, 36W LED Strip **Supports in total up to 5V/3A, 15W LED Strip ***CPU_FAN1/WP supports the fan power up to 2A (24W).CPU_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. ****CHA_FAN1~2 support the fan power up to 1A (12W). *****Actual speed depends on USB devices and extension cable in the chassis. Rear Panel I/O - 2 x Antenna Ports- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x Optical SPDIF Out Port- 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)- 1 x USB 2.0 Port- 2 x RJ-45 LAN Ports- 1 x Line Out Jack (Gold Audio Jack)- 1 x Microphone Input Jack (Gold Audio Jack) Software and UEFI Software- ASRock Motherboard Utility (A-Tuning)- ASRock Polychrome SYNC- ASRock XFast LANUEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Auto Driver Installer- ASRock Instant Flash- ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop. Accessories - 1 x User Manual- 1 x I/O Shield- 2 x SATA Data Cables- 2 x ASRock WiFi 2.4/5/6 GHz Antennas- 2 x Screws for M.2 Sockets Form Factor - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm- 8 Layer PCB OS - Microsoft® Windows® 10 64-bit / 11 64-bit *Windows® 10 only supports version 21H2 or later Certifications - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)
