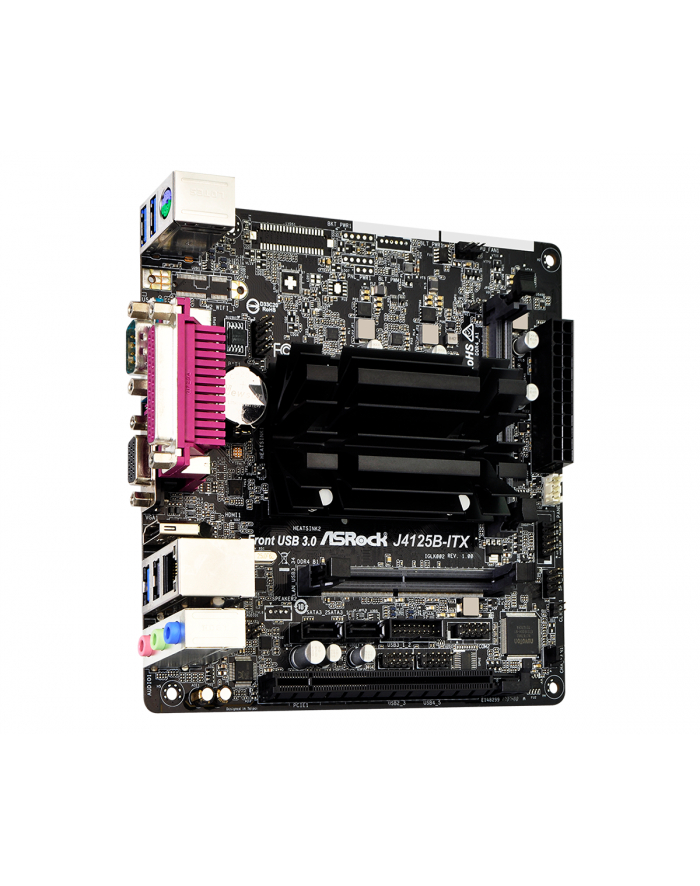

ASROCK J4125B-ITX Intel Celeron J4125 2.7 GHz DDR4 SODIMM 3xSATA UHD 600 mITX MB

ASRock MB Int.procesor J4125B-ITX, 2xDDR4, VGA, mini-ITX ASRock Super Alloy Intel® Quad-Core Processor J4125 (up to 2.7 GHz) Supports DDR4 2133/2400 SO-DIMM 1 PCIe 2.0 x16 (x2 mode) Graphics Output Options: D-Sub, HDMI 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps 2 SATA3 5 USB 3.2 Gen1 (2 Front, 3 Rear) Supports Full Spike Protection, ASRock Live Update & APP Shop TECHNICAL SPECIFICATIONS Unique Feature ASRock Super Alloy- Sapphire Black PCB- High Density Glass Fabric PCBASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop CPU - Intel® Quad-Core Processor J4125 (up to 2.7 GHz) Memory - Dual Channel DDR4 Memory Technology- 2 x DDR4 SO-DIMM Slots*- Supports DDR4 2400 / 2133 non-ECC, un-buffered memory- Max. capacity of system memory: 8GB** *2GB DRAM per module is not supported. **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. BIOS - 128Mb AMI UEFI Legal BIOS with GUI support- Supports Plug and Play- ACPI 5.0 compliant wake up events- Supports jumperfree- SMBIOS 3.0 support Graphics - Integrated Intel® UHD Graphics 600: 12 EUs inside (Up to 750MHz)- DX12, OpenGL 4.4, OGL ES 3.1, OpenCL 1.2- HW Acceleration Decode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit, VP9 10 bit- HW Acceleration Encode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit- Dual graphics output: support D-Sub and HDMI ports by independent display controllers- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz- Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz- Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)- Supports HDCP 2.2 with HDMI Port- Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port Audio - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*- Supports Surge Protection- ELNA Audio Caps *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s- Realtek RTL8111H- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE Slots - 1 x PCI Express 2.0 x16 Slot (PCIE1: x2 mode) Storage - 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug Connector - 1 x COM Port Header- 1 x Chassis Intrusion and Speaker Header- 1 x CPU Fan Connector (3-pin)- 1 x Chassis Fan Connector (3-pin)- 1 x 24 pin ATX Power Connector- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)* *USB3_1_2 is shared with USB2_3. Rear Panel I/O - 1 x PS/2 Mouse/Keyboard Port- 1 x Parallel Port (ECP/EPP Support)- 1 x Serial Port: COM1- 1 x D-Sub Port- 1 x HDMI Port- 1 x USB 2.0 Port (Supports ESD Protection)- 3 x USB 3.2 Gen1 Ports (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI Software- ASRock XFast LANUEFI- ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Accessories - Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables Hardware Monitor - CPU/Chassis temperature sensing- CPU/Chassis Fan Tachometer- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)- CPU/Chassis Fan multi-speed control- CASE OPEN detection- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore Form Factor - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm- Solid Capacitor design OS - Microsoft® Windows® 10 64-bit *Supports UEFI mode only Certifications - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)

Budowa: mini-ITX
CPU: Intel Celeron J4125, 4x 2.00GHz, 4MB cache, 10W TDP
Chipset: System-on-Chip (SoC)
RAM: 2x DDR4 SO-DIMM, dual PC4-19200S/?DDR4-2400, max. 8GB (UDIMM)
Sloty rozszerzeń: 1x PCIe 2.0 x16 (x2)
Złącza zewnętrzne: 1x VGA (iGPU), 1x HDMI 1.4 (iGPU), 3x USB-A 3.0, 1x USB-A 2.0, 1x Gb LAN (Realtek RTL8111H), 3x wtyczka jack, 1x combo PS/?2, 1x port szeregowy, 1x port równoległy
Złącza wewnętrzne: 1x USB 3.0 Header (2x USB 3.0), 2x USB 2.0 Header (4x USB 2.0), 2x SATA 6Gb/s (J4125), 1x port szeregowy, 1x Speaker-Header, 1x Chassis Intrusion-Header
Header Chłodzenie: 1x Wentylatory CPU 3-Pin, 1x wentylator 3-Pin
Header Oświetlenie: brak
Audio: 7.1 (Realtek ALC887)
Onboard-Grafika: iGPU
Wireless: brak
Poziom RAID: brak
Multi GPU: brak
Złącza zasilania: 1x 24-Pin ATX
Oświetlenie: brak
BIOS: 1x 16MB (128Mb)
Cechy szczególne: Audio+solid capacitors, chłodzenie pasywne
Gwarancja: trzy lata (realizacja przez sklep)
